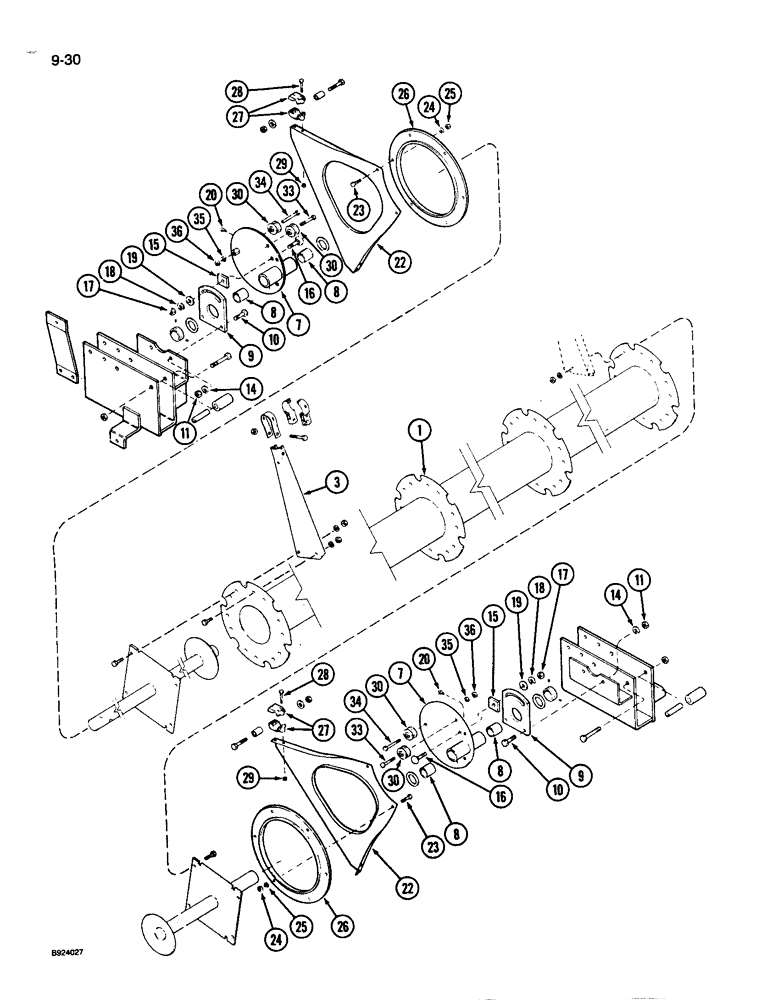

Запчасти Case IH 1010 (9-030) - 6 BAT REEL, DOUBLE ECCENTRIC, PLASTIC TINES, 20.0, 22.5, 25.0 AND 30.0 FOOT HEADER, HART CARTER (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
1347090C1
SHAFT
- center (20.0 foot)
1шт.
1
1347091C1
SHAFT
- center (22.5 foot)
1шт.
1
1347092C1
SHAFT
- center (25.0 foot)
1шт.
1
1347093C1
SHAFT
- center (30.0 foot)
1шт.
3
1347083C1
ARM
- reel
1шт.
7
1326653C91
HOUSING
ASSEMBLY - eccentric roller
2шт.
8
167666C1
BUSHING
- roller frame
2шт.
9
827703C1
BAR
- slot adjusting
2шт.
10
113-312
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5
4шт.
11
425-107
NUT,7/16"-14, G5
- hex, 7/16 inch NC
4шт.
14
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
4шт.
15
953254R1
SPACER
SPACER - slot adjusting
2шт.
16
433-828
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5
BOLT - round head square neck, 1/2 NC x 1-3/4 inch
2шт.
17
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
2шт.
18
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
19
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 5/64") 1/2", SAE
2шт.
20
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
FITTING - grease, short 90 degree, 1/8-27 PT
2шт.
22
1326616C1
SHIELD
- eccentric
12шт.
23
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch
12шт.
25
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
12шт.
26
167661C1
RING,271.65mm ID x 320.68mm OD
- control
2шт.
28
413-428
BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5
- hex, 1/4 NC x 1-3/4 inch
24шт.
29
26110R1
LOCK NUT,1/4"-20, GC
NUT - hex prevailing torque lock, 1/4 inch NC
24шт.
30
598242R91
ROLLER BEARING,0.376" ID x 2.25" OD x 1"
BEARING - roller ball
6шт.
33
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
- hex, 3/8 NC x 1-3/4 inch
4шт.
34
413-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- hex, 3/8 NC x 2-1/2 inch
2шт.
35
492-11038
LOCK WASHER,3/8"
6шт.
36
425-106
NUT,3/8"-16, Cl 5
6шт.
Выбрано товаров: 30
