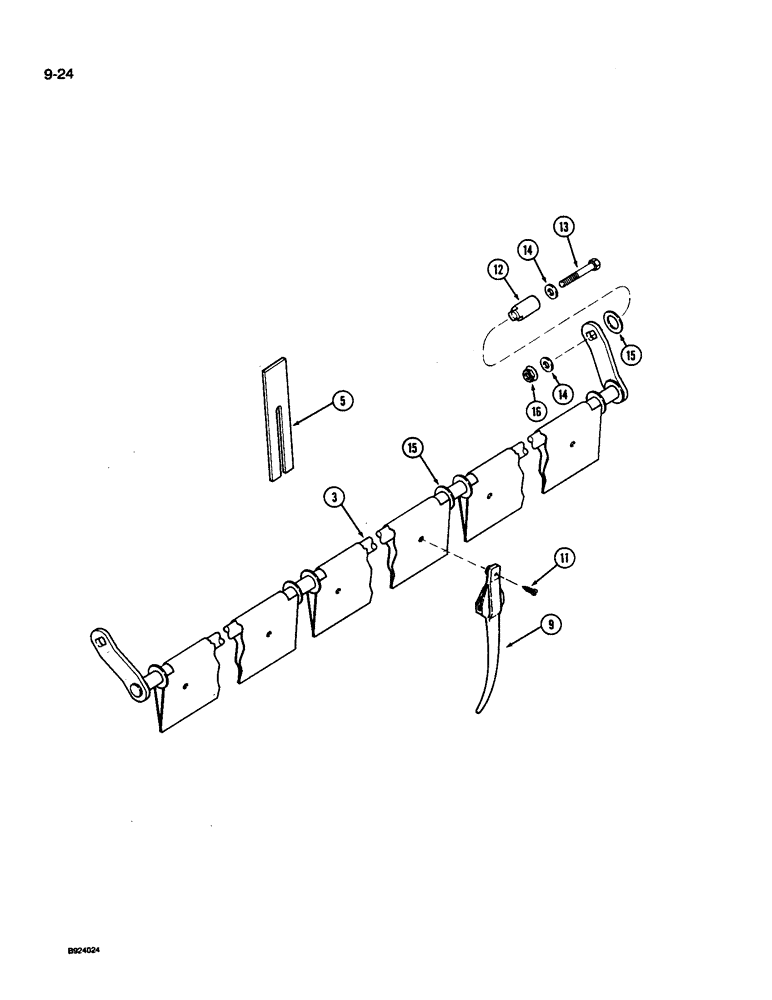

Запчасти Case IH 1010 (9-024) - 6 BAT REEL, BAT AND PLASTIC TINES, J.E. LOVE (58) - ATTACHMENTS/HEADERS

3

1326375C1

SHAFT

- bat, without tines (15.0 foot)

6шт.

3

1326377C1

SHAFT

- bat, without tines (17.5 foot)

6шт.

3

1326379C1

SHAFT

- bat, without tines (20.0 foot)

6шт.

3

1326381C1

SHAFT

- bat, without tines (22.5 foot)

6шт.

3

1326383C1

SHAFT

- bat, without tines (25.0 foot)

6шт.

3

1326385C1

SHAFT

- bat, without tines (30.0 foot)

6шт.

5

1316507C1

TOOL

- tine installation

1шт.

1979845C1

KIT

- tine and screw (Package of 10)

1шт.

9

NSS

NOT SOLD SEPARAT

TINE - plastic

10шт.

11

NSS

NOT SOLD SEPARAT

SCREW - hex slotted tapping

10шт.

12

1313301C1

BUSHING

- reel arm outboard

12шт.

13

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex, 7/16 NC x 2-1/4 inch

12шт.

14

496-21047

WASHER

- flat, 15/32 x 59/64 x 7/64 inch

24шт.

15

495-81055

WASHER,29/32" x 1 3/8" x .134"

- flat, 29/32 x 1-3/8 x 1/8 inch

24шт.

16

1313463C1

FLANGE NUT

NUT - small flange lock, 7/16 inch NC

12шт.
