(9-022) - 6 BAT REEL, PLASTIC TINES, J.E. LOVE

Запчасти Case IH 1010 (9-022) - 6 BAT REEL, PLASTIC TINES, J.E. LOVE (58) - ATTACHMENTS/HEADERS

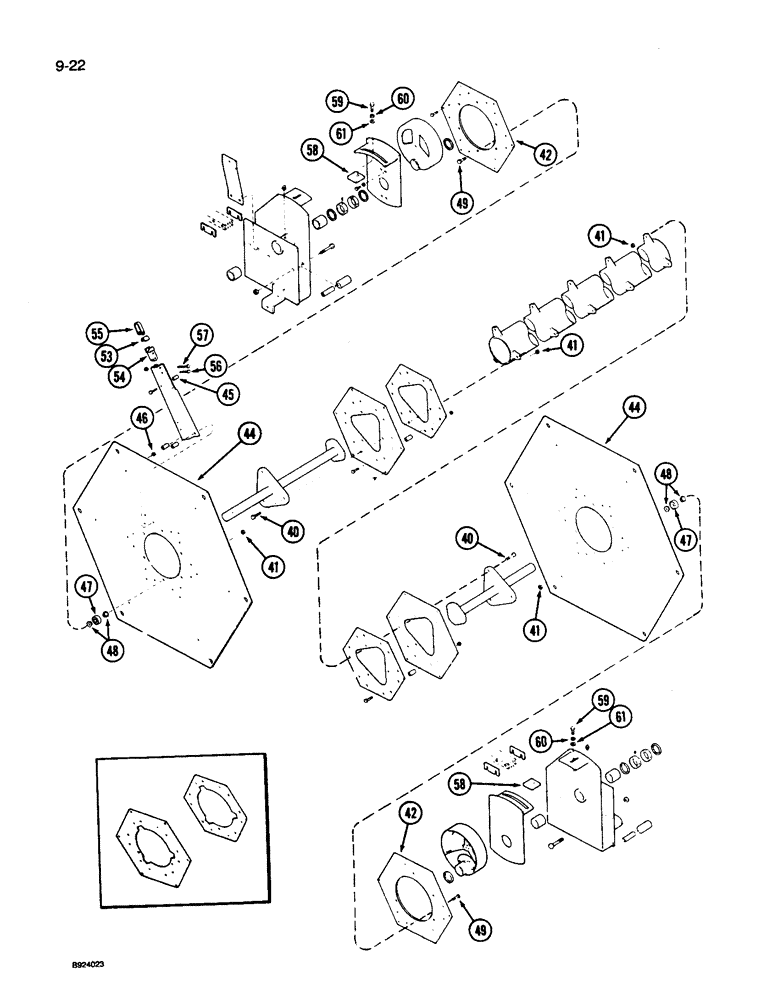

Схема запчастей Case IH 1010 - (9-022) - 6 BAT REEL, PLASTIC TINES, J.E. LOVE (58) - ATTACHMENTS/HEADERS
44
40
53
41
47
56
48
60
57
58
59
60
42
40
42
48
44
55
58
45
49
41
47
46
49
54
61
41
61
59
41
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

40

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

41

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex prevailing torque lock, 7/16 inch NC

1шт.

42

1313317C1

FLANGE

- eccentric end spider

2шт.

44

1326535C1

SHIELD

- eccentric plate

2шт.

45

364002R1

SPACER,3/8" Pipe x 1"

- pipe, 3/8 x 1 inch

12шт.

46

9413994

LOCK NUT,5/16"-18, GC

NUT - hex prevailing torque lock, 5/16 inch NC

12шт.

47

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Assy - Eccentric roller

12шт.

48

1313323C1

WASHER

- bearing

24шт.

49

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 NC x 1-1/2 inch

12шт.

1313462C1

KIT

- batshaft bearing (15.0, 17.5 and 20.0 foot)

36шт.

1313462C1

KIT

- batshaft bearing (22.5, 25.0 and 30.0 foot)

42шт.

53

NSS

NOT SOLD SEPARAT

CAP - bearing

1шт.

54

NSS

NOT SOLD SEPARAT

BASE - bearing

1шт.

55

1313315C1

CLAMP

CLEVIS - bearing (15.0, 17.5 and 20.0 foot)

36шт.

55

1313315C1

CLAMP

CLEVIS - bearing (22.5, 25.0 and 30.0 foot)

42шт.

56

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

57

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

58

1316156C1

BLOCK

- lock

2шт.

59

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

60

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

61

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

2шт.
