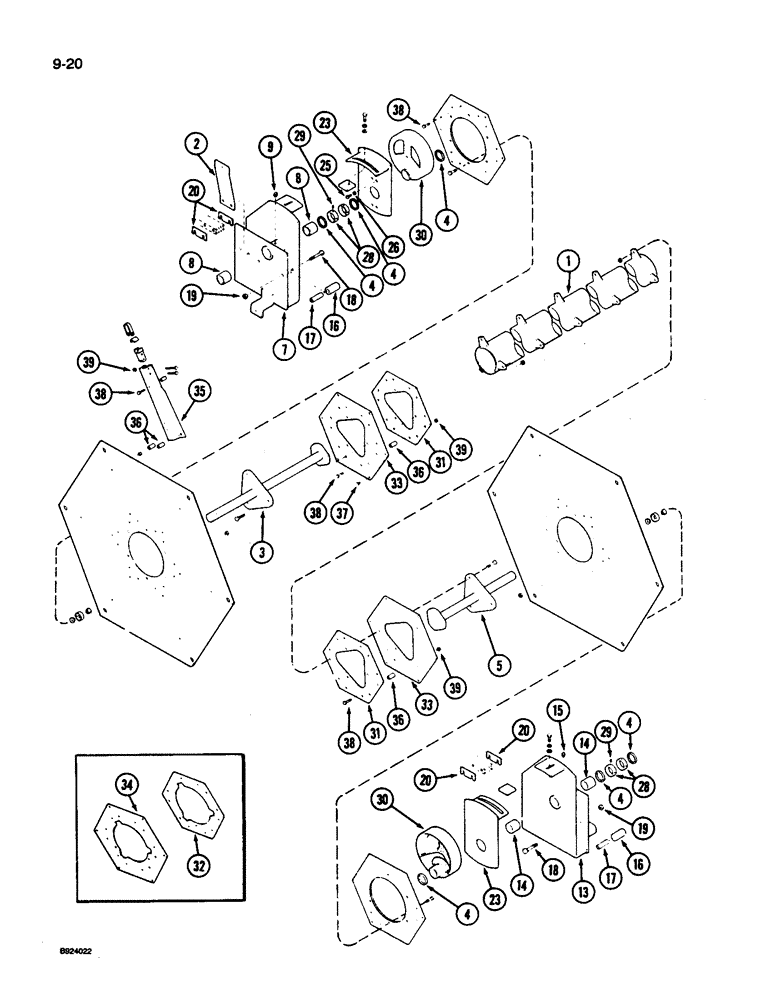

Запчасти Case IH 1010 (9-020) - 6 BAT REEL, PLASTIC TINES, J.E. LOVE (58) - ATTACHMENTS/HEADERS

1

1316628C1

TUBE,166" Length

ASSEMBLY - center tube (15.0 foot)

1шт.

1

1316629C1

TUBE

ASSEMBLY - center tube (17.5 foot)

1шт.

1

1316630C1

TUBE,226" Length

ASSEMBLY - center tube (20.0 foot)

1шт.

1

1316631C1

TUBE,256" Length

ASSEMBLY - center tube (22.5 foot)

1шт.

1

1316632C1

TUBE,256" Length

ASSEMBLY - center tube (25.0 foot)

1шт.

1

1316633C1

TUBE,345" Length

ASSEMBLY - center tube (30.0 foot)

1шт.

2

1316465C1

BRACKET

SUPPORT - shield

1шт.

3

1316643C1

SHAFT

- drive end (15.0, 17.5 and 20.0 foot)

1шт.

3

1316644C1

SHAFT

- drive end (22.5 and 25.0 foot)

1шт.

3

1316645C1

SHAFT

- drive end (30.0 foot)

1шт.

4

1316158C1

THRUST WASHER

WASHER - thrust

6шт.

5

1316650C1

SHAFT

- eccentric end (15.0, 17.5 and 20.0 foot)

1шт.

5

1316651C1

SHAFT

- eccentric end (22.5 and 25.0 foot)

1шт.

5

1316652C1

SHAFT

- eccentric end (30.0 foot)

1шт.

1316474C91

SUPPORT

ASSEMBLY - drive shaft right

1шт.

7

NSS

NOT SOLD SEPARAT

SUPPORT - driveshaft

1шт.

8

1313304C1

BUSHING

- support

2шт.

9

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 45 degree short, 1/8-27 inch PT

1шт.

1316475C91

SUPPORT

ASSEMBLY - eccentric shaft left

1шт.

13

NSS

NOT SOLD SEPARAT

SUPPORT - shaft

1шт.

14

1313304C1

BUSHING

- support

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8-27 inch PT

1шт.

16

1316328C1

SHIFTER ROLLER

BUSHING - reel support

4шт.

17

23885K

SPACER,3/4" Tube x 2 1/16"

- 3/4 x 2-1/16 inch

4шт.

18

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

19

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque lock, 1/2 inch NC

4шт.

20

1316478C1

BAR

SPACER - reel arm support

4шт.

23

1316153C1

SUPPORT

ASSEMBLY - pitch control

2шт.

25

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

-7/16 NC x 1 inch

2шт.

26

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

1316157C1

COLLAR

- locking

4шт.

28

NSS

NOT SOLD SEPARAT

COLLAR - 2-1/2 inch OD

1шт.

29

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, headless hex socket, 3/8 NC x 1/2 inch

2шт.

30

1316654C1

ECCENTRIC

- 1-1/2 inch bore

2шт.

31

1313333C1

FLANGE

SPIDER - small (15.0, 17.5 and 20.0 foot)

4шт.

32

1313334C1

FLANGE

SPIDER - small (22.5, 25.0 and 30.0 foot)

5шт.

33

1313332C1

SPIDER

- large (15.0, 17.5 and 20.0 foot)

4шт.

34

1313336C1

FLANGE

SPIDER - large (22.5, 25.0 and 30.0 foot)

5шт.

35

1313319C1

SUPPORT

- arm

1шт.

36

371108R1

SPACER,3/8" Pipe x .844"

- pipe, 3/8 x 27/32 inch

1шт.

37

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

38

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

1шт.

39

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.
