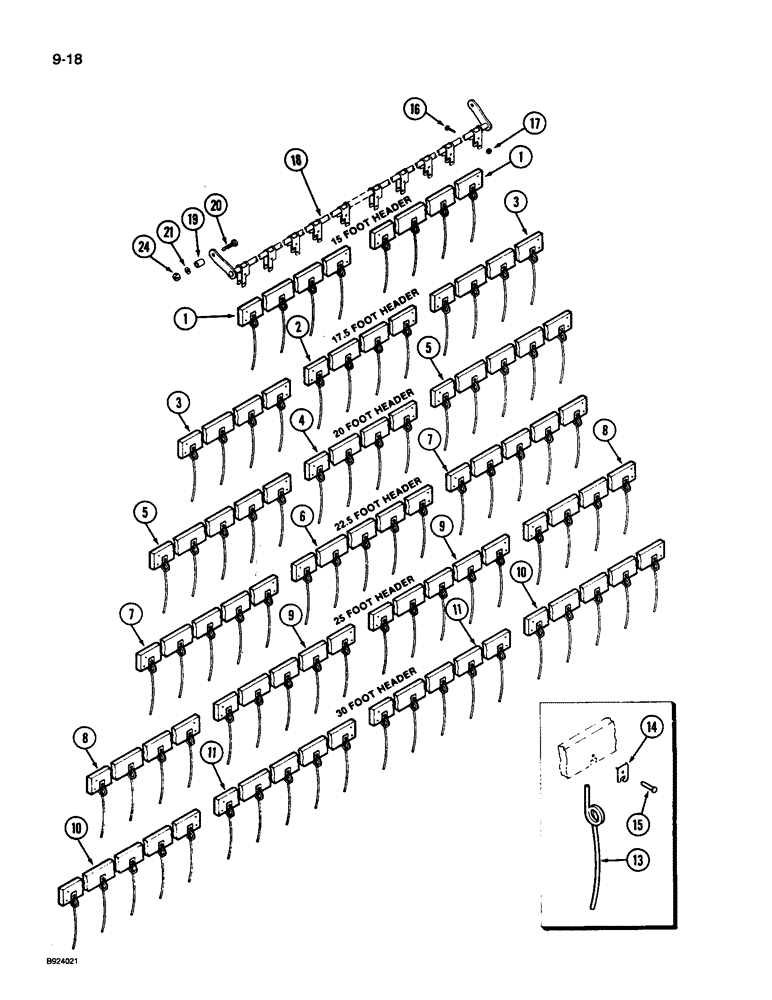

Запчасти Case IH 1010 (9-018) - 6 BAT REEL, BAT AND STEEL TINE ASSEMBLY, HART CARTER (58) - ATTACHMENTS/HEADERS

1

1326605C91

BAT

ASSEMBLY - with tines (15.0 foot)

12шт.

2

1316258C91

BAT

ASSEMBLY - with tines (17.5 foot)

6шт.

3

1316259C91

BAT

ASSEMBLY - with tines (17.5 foot)

12шт.

4

1316259C91

BAT

ASSEMBLY - with tines (20.0 foot)

6шт.

5

1316260C91

BAT

ASSEMBLY - with tines (20.0 foot)

12шт.

6

1316265C91

BAT

ASSEMBLY - with tines (22.5 foot)

6шт.

7

185864C91

BAT

ASSEMBLY - with tines (22.5 foot)

12шт.

8

598170R91

BAT

ASSEMBLY - with tines (25.0 foot)

12шт.

9

167676C91

BAT

ASSEMBLY - with tines (25.0 foot)

12шт.

10

1316264C91

BAT

ASSEMBLY - with tines (30.0 foot)

12шт.

11

1316265C91

BAT

ASSEMBLY - with tines (30.0 foot)

12шт.

13

598171R1

TINE,Coiled, 1 Prong, 283mm L

- steel

1шт.

14

592616R1

CLIP

- tine

1шт.

15

23055R1

RIVET,Tr Hd, 3/16" x 1"

- truss-head semi-tubular, 3/4 x 1 inch

1шт.

16

412-422

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1 3/8", Gr 2

BOLT - round head square neck, 1/4 NC x 1-3/8 inch

1шт.

17

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex prevailing torque lock, 1/4 inch NC

1шт.

18

1326604C1

SHAFT

- bat (15.0 foot)

6шт.

18

1316267C1

SHAFT

- bat (17.5 foot)

6шт.

18

1316268C1

SHAFT

- bat (20.0 foot)

6шт.

18

1316269C1

SHAFT

- bat (22.5 foot)

6шт.

18

1316270C1

SHAFT

- bat (25.0 foot)

6шт.

18

1316271C1

SHAFT

- bat (30.0 foot)

6шт.

19

1316568C1

SPACER

BUSHING - shaft

12шт.

20

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

21

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

12шт.

24

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque lock, 1/2 inch NC

12шт.
