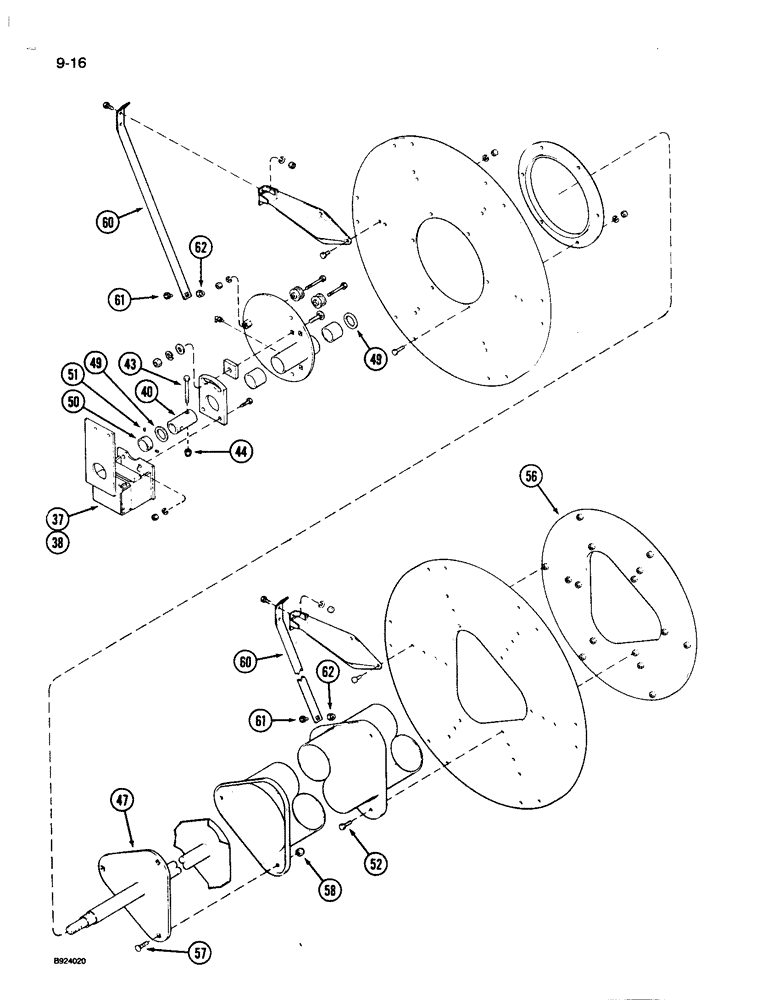

Запчасти Case IH 1010 (9-016) - 6 BAT REEL, 52 INCH REEL WITH STEEL TINES, HART CARTER (58) - ATTACHMENTS/HEADERS

37

180380C1

BRACKET

- adjusting, left

1шт.

38

179231C2

BRACKET

- adjusting, right (Shown)

1шт.

40

167612C1

SPACER

- driven hub

2шт.

43

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

44

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

47

180251C1

SHAFT

- driving end

2шт.

49

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

- flat, 1-21/23 x 2-1/4 x 7/64 inch

4шт.

50

180400C91

COLLAR

- with set screw

2шт.

51

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

SCREW - set, headless hex socket, 3/8 NF x 5/16 inch

3шт.

52

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

53

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

54

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

55

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- hex, 5/16 NC x 1 inch

1шт.

60

180787C1

SUPPORT

- reel arm brace

36шт.

61

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

36шт.

62

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC, Grade 8

36шт.
