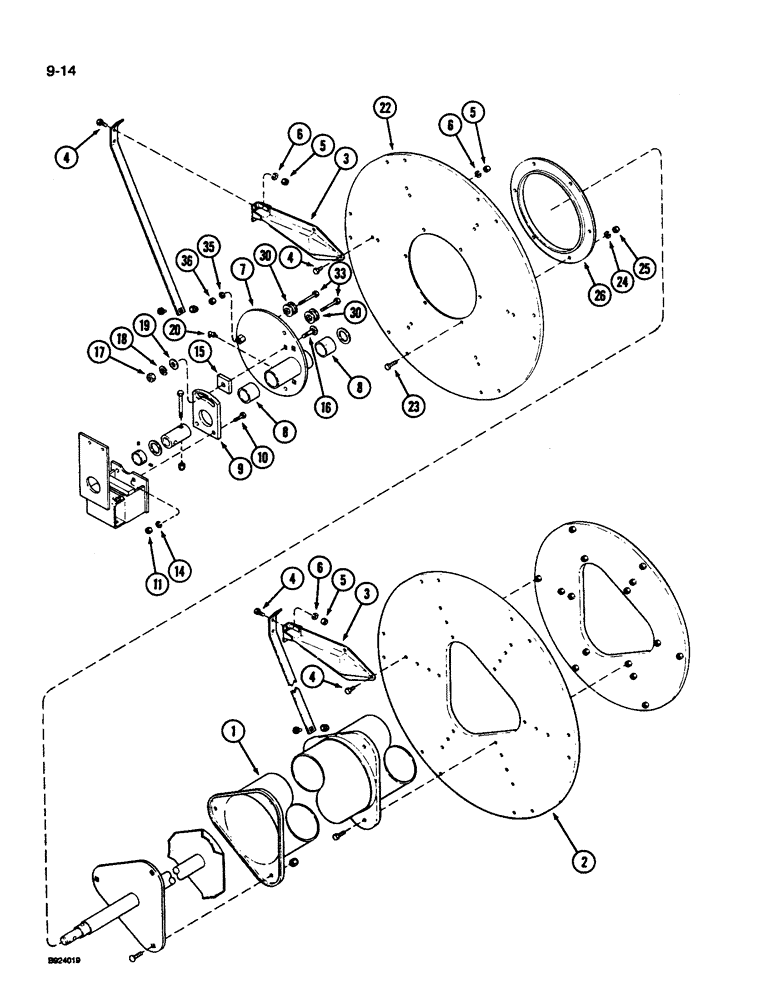

Запчасти Case IH 1010 (9-014) - 6 BAT REEL, 52 INCH REEL WITH STEEL TINES, HART CARTER (58) - ATTACHMENTS/HEADERS

1

1979485C1

SHAFT

- center (17.5 foot)

1шт.

1

1316274C1

SHAFT

- center (20.0 foot)

1шт.

2

180603C1

PLATE

ASSEMBLY - stiffening

4шт.

180602C1

PLATE

- spider

4шт.

3

167654C1

ARM

- reel

36шт.

4

424-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

- hex, 5/16 NC x 1/2 inch

1шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

180507C1

HUB ASSY.

HUB ASSEMBLY - eccentric roller

2шт.

8

167666C1

BUSHING

- roller frame

2шт.

9

827703C1

BAR

- slot adjusting

2шт.

10

424-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 2

- hex, 7/16 NC x 1-1/4 inch

4шт.

11

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

14

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

15

953254R1

SPACER

SPACER - slot adjusting

2шт.

16

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

2шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

22

180377C1

PLATE

- spider

2шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

12шт.

26

167661C1

RING,271.65mm ID x 320.68mm OD

- control

2шт.

30

598242R91

ROLLER BEARING,0.376" ID x 2.25" OD x 1"

BEARING - roller ball

6шт.

33

424-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 2

- hex, 3/8 NC x 1-3/4 inch

6шт.

35

492-11038

LOCK WASHER,3/8"

6шт.

36

425-106

NUT,3/8"-16, Cl 5

6шт.
