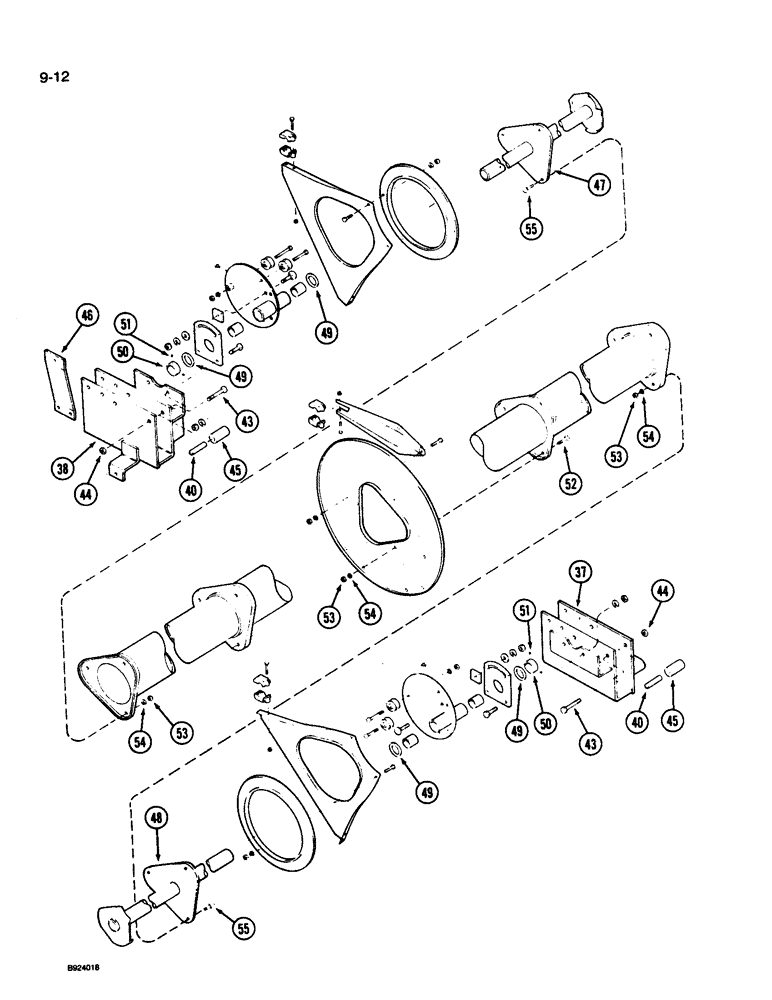

Запчасти Case IH 1010 (9-012) - 6 BAT REEL, STEEL TINES, HART CARTER (58) - ATTACHMENTS/HEADERS

37

1326611C1

SUPPORT

- eccentric adjusting, left

1шт.

38

1326612C1

SUPPORT

- eccentric adjusting, right

1шт.

40

23885K

SPACER,3/4" Tube x 2 1/16"

- 3/4 x 2-1/16 inch

4шт.

43

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

44

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque lock, 1/2 inch NC

4шт.

45

1316328C1

SHIFTER ROLLER

BUSHING - reel support

4шт.

46

1316465C1

BRACKET

- reel shield

1шт.

47

185519C1

SHAFT

- driving end (15.0 and 17.5 foot)

1шт.

47

185520C1

SHAFT

- driving end (20.0 and 22.5 foot)

1шт.

47

180134C1

SHAFT

- driving end( 25.0 and 30.0 foot)

1шт.

48

185522C1

SHAFT

- driven end (15.0 and 17.5 foot)

1шт.

48

185523C1

SHAFT

- driven end (20.0 and 22.5 foot)

1шт.

48

180135C1

SHAFT

- driven end (25.0 and 30.0 foot)

1шт.

49

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

- flat, 1-21/23 x 2-1/4 x 7/64 inch

4шт.

50

180400C91

COLLAR

- with set screw

2шт.

51

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

SCREW - set, hex socket headless cup point, 3/8 NF x 5/16 inch

4шт.

52

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

53

9411655

LOCK NUT,3/8"-16, GB

NUT - hex prevailing torque lock, 3/8 inch NC

1шт.

54

492-11038

LOCK WASHER,3/8"

1шт.

55

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.
