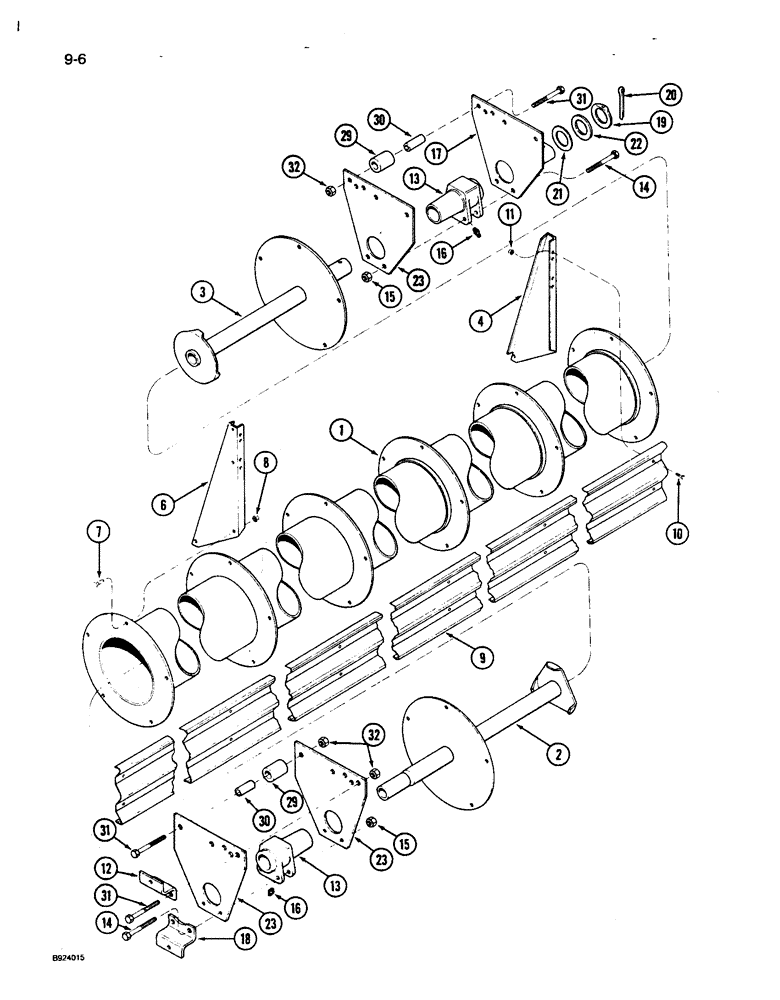

Запчасти Case IH 1010 (9-006) - 5 BAT REEL, 30.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

1307625C1

TUBE

ASSEMBLY - reel

1шт.

2

184927C2

SHAFT

ASSEMBLY - reel drive

1шт.

3

1316663C1

SHAFT

ASSEMBLY - reel left

1шт.

4

184924C1

SUPPORT

- left, reel bat

15шт.

6

184925C1

SUPPORT

- right, reel bat

15шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

30шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex, 5/16 inch NC

30шт.

9

1307589C1

BAT

- reel

5шт.

10

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss, 1/4 NC x 1/2 inch

60шт.

11

26110R1

LOCK NUT,1/4"-20, GC

NUT - prevailing torque lock, 1/4 inch NC

60шт.

12

1316477C1

SUPPORT

- reel shield upper

1шт.

13

1308369C1

SUPPORT

- reel shaft

2шт.

14

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

4шт.

15

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex, 3/8 inch NC

4шт.

16

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease. 1/4-28 taper drive thread

2шт.

17

1316653C1

SUPPORT

ASSEMBLY - reel

1шт.

18

1316661C1

SUPPORT

- reel shield lower

1шт.

19

633177R1

WASHER

WASHER - cotter pin retainer

1шт.

20

432-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

1шт.

21

495-81094

WASHER,1 25/32" x 2 3/4" x .048"

- flat, 1-25/32 x 2-3/4 x 3/64 inch

1шт.

22

95-81057

WASHER,1.78" ID x 2.75" OD x 0.12" Thk

- flat, 1-25/32 x 2-3/4 x 1/8 inch

1шт.

23

1316660C1

LARGE PLATE

PLATE - reel shaft support

3шт.

29

1316328C1

SHIFTER ROLLER

BUSHING - reel support

4шт.

30

23885K

SPACER,3/4" Tube x 2 1/16"

- tube 3/4 x 2-1/16 inch

4шт.

31

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

32

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.
