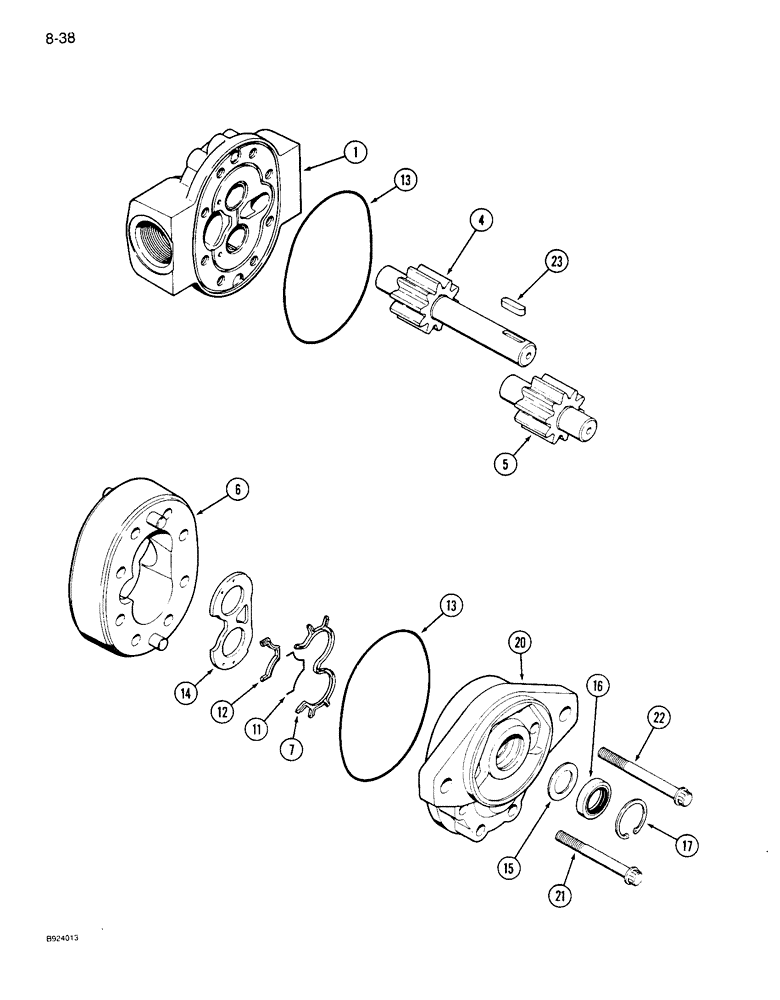

Запчасти Case IH 1010 (8-38) - REEL DRIVE PUMP (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1272640C91
HYDRAULIC PUMP,46.7 CC
PUMP ASSEMBLY - reel drive (1420E)
1шт.
1272633C91
HYDRAULIC PUMP,46.7 CC
PUMP ASSEMBLY - reel drive (1140E, 1460E and 1480E)
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - rear
1шт.
4
NSS
NOT SOLD SEPARAT
GEAR ASSEMBLY - drive
1шт.
5
NSS
NOT SOLD SEPARAT
GEAR ASSEMBLY - idler
1шт.
6
NSS
NOT SOLD SEPARAT
BODY- pump
1шт.
92586C1
SEAL KIT
KIT - seal
1шт.
7
NSS
NOT SOLD SEPARAT
GASKET - backup
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING - backup
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL - bearing
1шт.
13
238-6159
O-RING,0.103" Thk x 4.977" ID, -159, Cl 6, 90 Duro
2шт.
NOTE A: 1420E Combine. NOTE B: 1440E, 1460E and 1480E Combine.
1шт.
14
NSS
NOT SOLD SEPARAT
PLATE - wear
1шт.
15
NSS
NOT SOLD SEPARAT
WASHER - special
1шт.
16
A25139
SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk
- shaft
1шт.
17
A32181
SNAP RING,1.375", Int, #137
Ring, Snap, 1.375", Int, #137
1шт.
20
NSS
NOT SOLD SEPARAT
HOUSING - front
1шт.
21
166-55
12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8
BOLT - 12 point head, 3/8 NC 3-1/2 inch
4шт.
22
166-59
12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8
BOLT - 12 point head, 3/8 NC x 3-3/4 inch
4шт.
23
H233445
KEY
- pump shaft
1шт.
