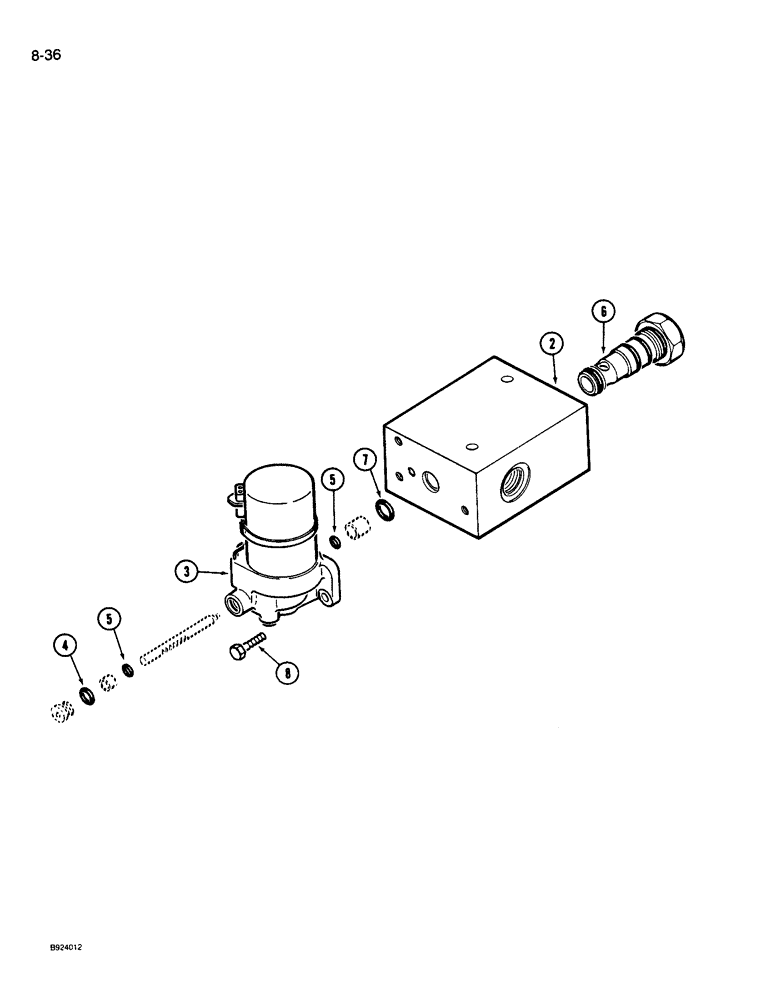

Запчасти Case IH 1010 (8-36) - REEL DRIVE VALVE (35) - HYDRAULIC SYSTEMS

1282369C91

VALVE

ASSEMBLY - reel drive

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

1301336C1

MOTOR, ELECTRIC

MOTOR ASSEMBLY - valve

1шт.

4

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/2 inch tube OD

1шт.

5

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

6

1301996C1

VALVE

ASSEMBLY - compensator

1шт.

7

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.

8

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch

3шт.
