Запчасти Case IH 1010 (8-32) - REEL DRIVE SYSTEM, 1420E, 1440E, 1460E AND 1480E COMBINE (35) - HYDRAULIC SYSTEMS

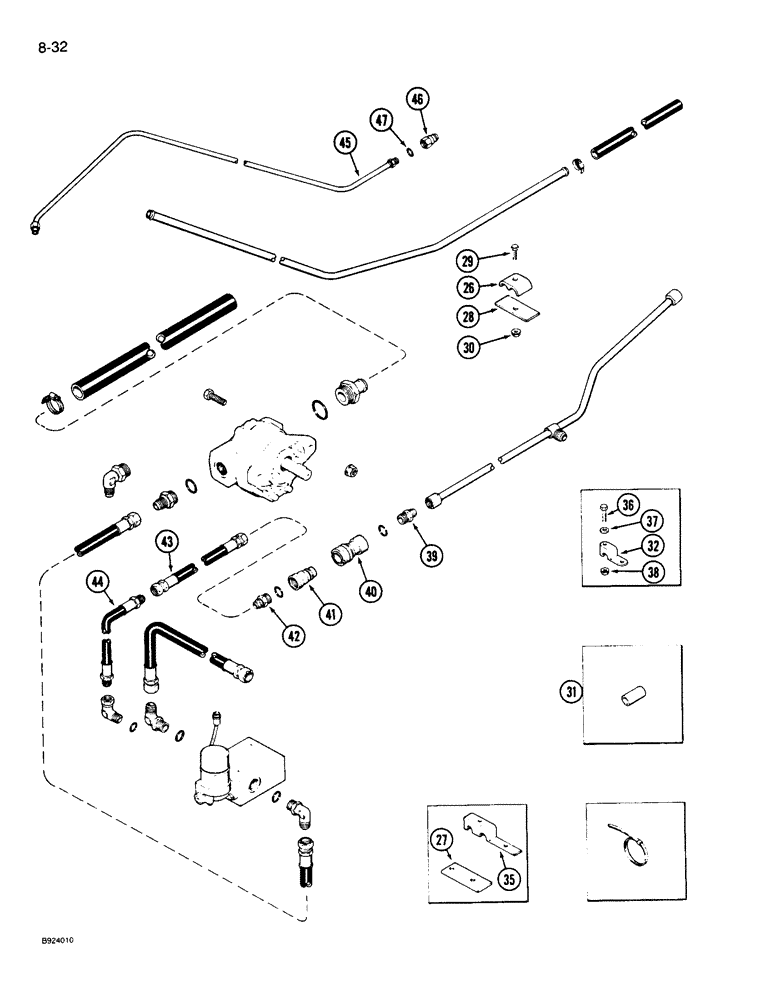

Схема запчастей Case IH 1010 - (8-32) - REEL DRIVE SYSTEM, 1420E, 1440E, 1460E AND 1480E COMBINE (35) - HYDRAULIC SYSTEMS
38
29
37
26
36
35
43
45
42
28
32
31
41
30
39
27
44
46
47
40

Артикул

Название

Примечание

Количество

26

165801C1

CLAMP

- retaining, 13/32 inch diameter hole (If equipped)

1шт.

28

165602C1

CLAMP

- retaining, 11/32 inch diameter hole

1шт.

27

196868C1

BAR

PLATE - support (See Notes A, B and C)

1шт.

28

573186R1

PLATE

- support (See Note D)

1шт.

29

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

29

424-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 2

- hex, 3/8 NC x 1-3/4 inch

1шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

30

482258R1

NUT

- hex flange lock, 3/8 inch NC (If equipped)

1шт.

31

163490C1

RUBBER INSULATOR

SHIELD - hose protective, rubber, 1/4 inch tube OD

1шт.

31

163491C1

RUBBER INSULATOR

SHIELD - hose protective, rubber, 1/2 inch tube OD

1шт.

31

163492C1

RUBBER INSULATOR

SHIELD - hose protective, rubber, 5/8 inch tube OD

1шт.

32

183821C1

CLAMP

- tube retaining, 3/8 inch.tube OD

1шт.

32

183822C1

CLAMP

- tube retaining, 5/8 inch tube OD

1шт.

35

121714C1

CLAMP

- tube retaining

1шт.

36

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

37

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch

1шт.

38

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange lock, 1/4 inch NC

1шт.

39

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

1шт.

40

395150R91

COUPLING, QUICK, FEM

COUPLING - fema1e (Alternate with A177478)

1шт.

40

A177478

COUPLING, QUICK, FEM

COUPLING - female (Alternate with 395150R91)

1шт.

41

395149R1

QUICK MALE COUPLING

COUPLING - male (Alternate with 1272399C2)

1шт.

41

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8 NF (Alternate with 395149R1)

1шт.

42

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

43

196878C1

HOSE

- reel drive, 56 inch (See Notes A, B and C)

1шт.

43

179411C1

HOSE

- reel dive, 61 inch (See Note D)

1шт.

44

1315462C1

HOSE

- reel drive pressure, 29-1/2 inch

1шт.

44

1317169C1

HOSE

- reel drive pressure, 27 inch

1шт.

45

187771C1

HYD TUBE

TUBE - reel lift (See Note A)

1шт.

45

1312410C1

HYD TUBE

TUBE - reel lift (See Notes B and C)

1шт.

46

187562C1

QUICK MALE COUPLING

COUPLING - reel lift, male

1шт.

36

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

47

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
