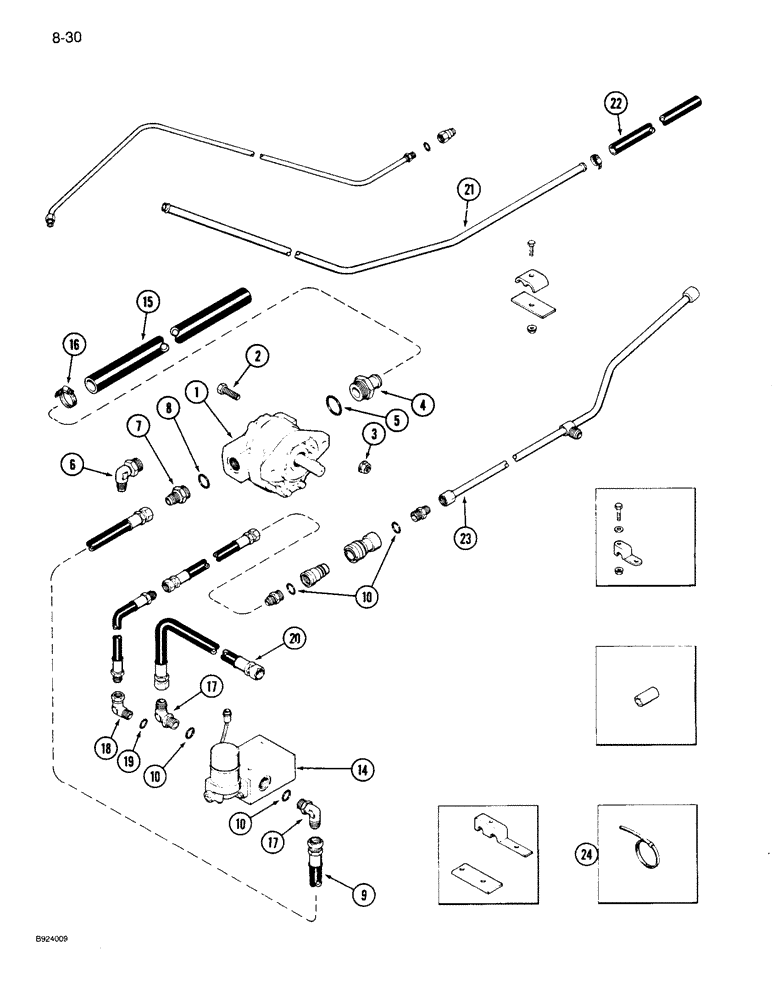

Запчасти Case IH 1010 (8-30) - REEL DRIVE SYSTEM, 1420E, 1440E, 1460E AND 1480E COMBINE (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive (See Page 8-39)

1шт.

2

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

- hex flange, 1/2 NC x 1-1/2 inch

2шт.

3

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

2шт.

4

1282383C1

FITTING,1-5/8" - 12 ORB x

- beaded tube, 1 inch ID hose

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 7/8-14 flare x 1-1/16-12 inch adj O-ring

1шт.

7

573206R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - short, reducer, 5/8 inch 7/8-14 x 3/4 inch

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

1317078C2

HOSE

- pressure, 1/2 ID x 28-1/2 inch (See Note A)

1шт.

9

1315480C1

SHAFT

HOSE - pressure, 1/2 ID x 39 inch (See Notes B, C, D)

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

1282369C91

VALVE

ASSEMBLY - reel drive (See Figure 8-36)

1шт.

15

198303C1

HYDRAULIC HOSE,1.00" ID x 40.00", SAE 100R4 Class 4

HOSE Reel Drive Suction

1шт.

16

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - hose retaining

2шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss

1шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

1315463C1

HOSE

- pump return, 1/2 ID x 21-5/8 inch (See Note A)

1шт.

20

1317073C1

HOSE

- pump return, 1/2 ID x 25 inch (See Notes B, C, D)

1шт.

21

187777C1

HYD TUBE

TUBE - reel drive return (See Note A)

1шт.

21

196746C1

HYD TUBE

TUBE - reel drive return (See Note B, and C)

1шт.

21

187830C1

HYD TUBE

TUBE - reel drive return (See Note D)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - return, 24 inch (Order S118576 and, Serial Range: cut-length)

1шт.

23

1322128C1

HYD TUBE

TUBE - reel drive return, front (See Note A)

1шт.

23

1312411C1

HYD TUBE

TUBE - reel drive return, front (See Note B and C)

1шт.

23

1325306C91

TUBE

- reel drive return, front (See Note D)

1шт.

24

306132C1

CABLE TIE,14.5" L

STRAP - hose retaining 14 in

1шт.
