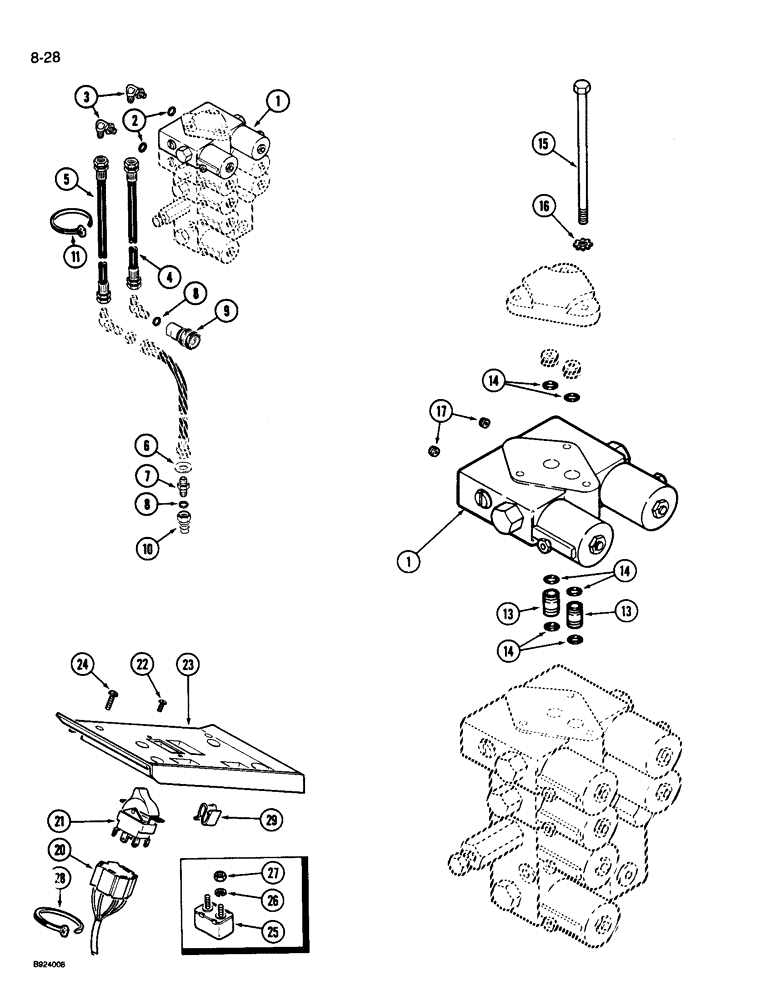

Запчасти Case IH 1010 (8-28) - REEL FORE AND AFT ATTACHMENT, 1420, 1440, 1460 OR 1480 COMBINE (35) - HYDRAULIC SYSTEMS

1957287C1

KIT

ATTACHMENT - reel fore and aft

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure(s) 8-34)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 1/2 inch tube

2шт.

4

1321591C1

HOSE

ASSEMBLY - reel fore, 5/18 ID x 94-1/2 inch

2шт.

5

1284369C1

HYDRAULIC HOSE

HOSE ASSEMBLY - reel aft, 5/16 ID x 130 inch

1шт.

8

1327631C1

WASHER

- red special, 5/8 inch ID (If equipped)

1шт.

7

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, 3/8 tube

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

9

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - female

1шт.

10

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8 NF

1шт.

11

306132C1

CABLE TIE,14.5" L

STRAP - hose retaining 14 in

5шт.

13

1301630C2

TUBE,.344" ID, .5" OD, 15" Length

- through (Replaces 1301630C1)

2шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

15

424-496

BOLT,Hex, 1/4" - 20 x 6", Gr 2

- hex, 1/4 NC x 6 inch

3шт.

16

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch

3шт.

17

1301637C1

ORIFICE

PLUG - orifice

2шт.

20

1866277R1

ARMATURE

HARNESS - wiring

1шт.

21

1301175C1

SWITCH

- fore and aft

1шт.

22

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

- machine, pan head, No. 6-32 x 1/2 inch

2шт.

23

1301940C3

COVER

- console extension

1шт.

24

27204R1

SELF-TAP SCREW

- pan head, No. 10-24 x 3/4 inch

4шт.

25

262965C91

BREAKER

- circuit

1шт.

26

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

27

225-14210

NUT,#10-32

2шт.

28

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable lock

3шт.

29

537024R1

CLIP

CUP - edge

1шт.
