Запчасти Case IH 1010 (8-24) - SLAVE LIFT CYLINDER, PICKUP REEL - 30.0 FOOT HEADER (35) - HYDRAULIC SYSTEMS

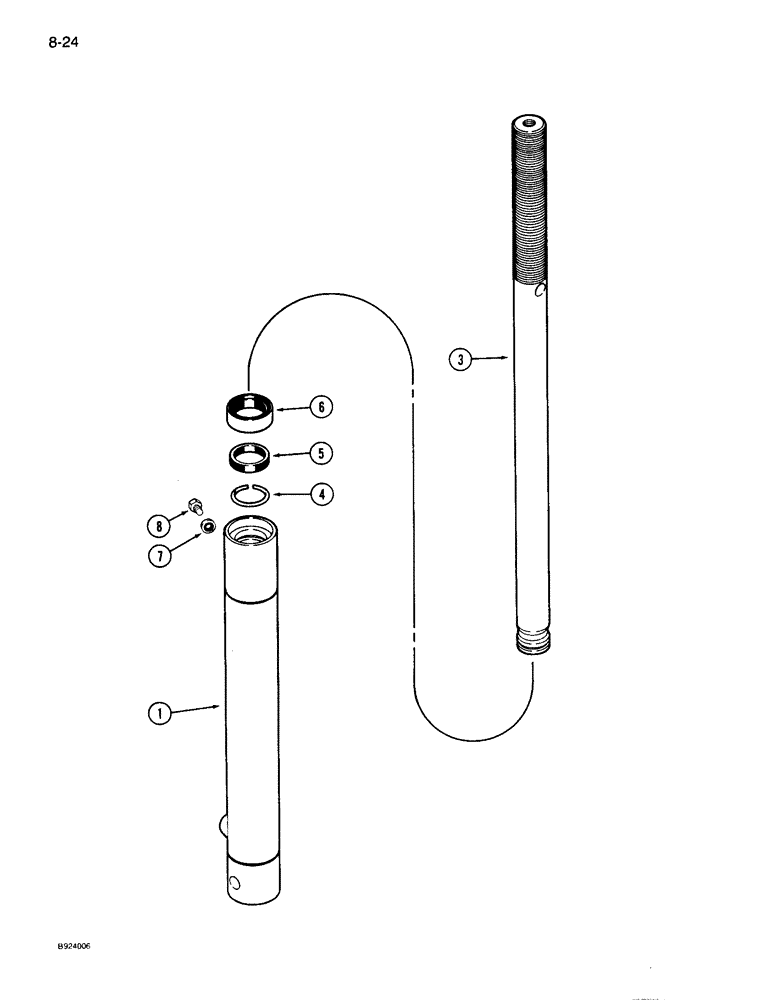

Схема запчастей Case IH 1010 - (8-24) - SLAVE LIFT CYLINDER, PICKUP REEL - 30.0 FOOT HEADER (35) - HYDRAULIC SYSTEMS
1
7
6
3
8
5
4

Артикул

Название

Примечание

Количество

1272703C93

CYLINDER,31.67mm Rod, 238.25mm Stroke

ASSEMBLY - hydraulic, slave lift (replaces 1272703C92)

1шт.

1

NSS

NOT SOLD SEPARAT

SLEEVE- cylinder

1шт.

3

1272713C1

ROD

- piston

1шт.

1272725C1

SEAL KIT

KIT - seal

1шт.

4

1272714C1

SNAP RING

RING - retaining

1шт.

5

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

- rod

1шт.

6

D95141

WIPER SEAL

SEAL - 1-1/4 x 1-3/4 x 5/16 inch, wiper, piston rod, if used

1шт.

6

546283R1

WIPER SEAL

- 1-1/4 x 1-3/4 x 25/64 inch, wiper, piston rod, if used

1шт.

7

533145R1

RUBBER WASHER,5.59mm ID x 10.72mm OD x 1.37mm Thk

- rubber bonded

1шт.

8

463-1104

SCREW,Hex Hd, #10-24 x 1/4"

- machine, hex, No. 10 NC x 1-1/4 inch

1шт.

Выбрано товаров: 10
