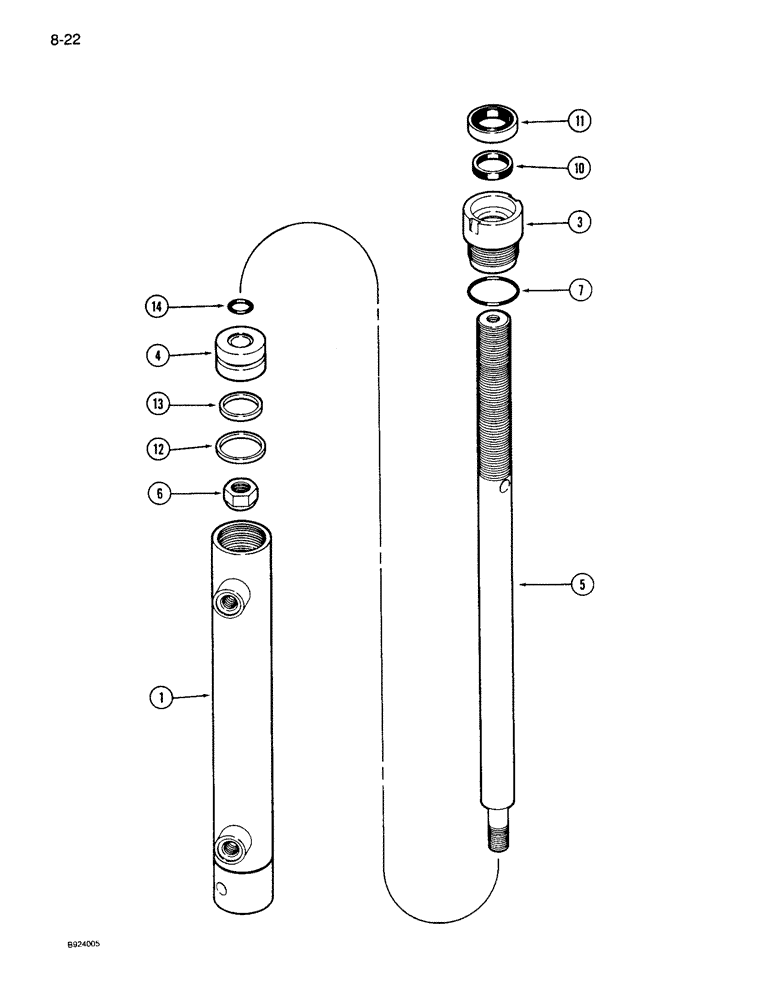

Запчасти Case IH 1010 (8-22) - MASTER LIFT CYLINDER, PICKUP REEL - 30.0 FOOT HEADER (35) - HYDRAULIC SYSTEMS

1272702C94

CYLINDER,Double Acting, 31.67mm Rod, 238.2mm Stroke

ASSEMBLY - hydraulic, master lift (replaces 1272702C93)

1шт.

1

NSS

NOT SOLD SEPARAT

SLEEVE ASSEMBLY

1шт.

3

1272719C1

HEAD

- front

1шт.

4

1272720C2

PISTON

- cylinder

1шт.

5

1272721C1

ROD

- piston

1шт.

6

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

1272724C3

SEAL KIT

KIT - seal

1шт.

7

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

10

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

- rod

1шт.

11

D95141

WIPER SEAL

SEAL - 1-1/4 x 1-3/4 x 5/16 inch, wiper, piston rod, if used

1шт.

11

546283R1

WIPER SEAL

- 1-1/4 x 1-3/4 x 25/64 inch, wiper, piston rod, if used

1шт.

12

1285775C2

SEALING RING

- ring

1шт.

13

239-5126

O-RING,Rect, 1.375" ID x 1.562" OD, Cl 5

- rectangular seal

1шт.

14

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.
