Запчасти Case IH 1010 (8-18) - REEL LIFT MASTER CYLINDER, BAT REEL OR PICKUP REEL, NOT FOR PICKUP REEL ON 30.0 FOOT HEADER (35) - HYDRAULIC SYSTEMS

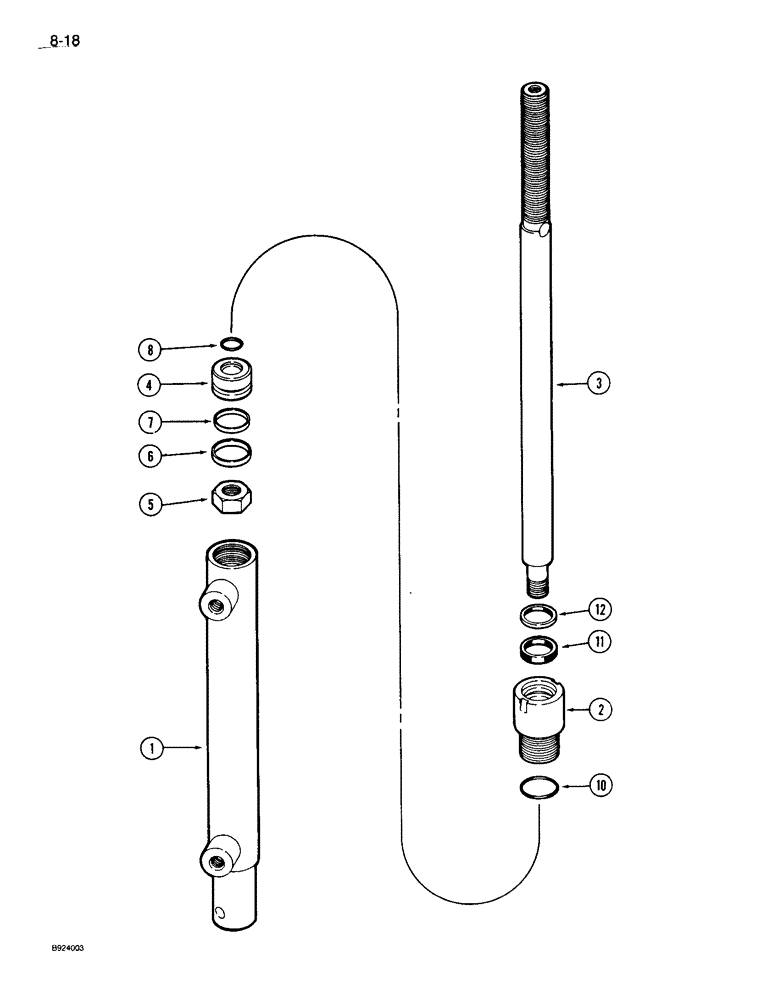

Схема запчастей Case IH 1010 - (8-18) - REEL LIFT MASTER CYLINDER, BAT REEL OR PICKUP REEL, NOT FOR PICKUP REEL ON 30.0 FOOT HEADER (35) - HYDRAULIC SYSTEMS
12
5
10
2
3
1
8
7
11
4
6

Артикул

Название

Примечание

Количество

92640C93

CYLINDER

ASSEMBLY - hydraulic, master lift (replaces 92640C92)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

2

547384R1

CYLINDER HEAD

HEAD - front

1шт.

3

92584C1

PISTON ROD

ROD - piston

1шт.

4

547333R3

PISTON

- cylinder

1шт.

5

548033R1

JAM NUT

NUT - hex jam lock, 3/4 inch NF

1шт.

6

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

547388R94

SEAL KIT

KIT - seal

1шт.

7

239-5123

O-RING,Square, 0.094" Thk x 1.188" ID, -123

- 1-3/16 x 1-3/8 inch

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

10

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

- 1-3/8 x 1-9/16 inch

1шт.

11

1272317C1

SEAL,28.7mm ID x 34.52mm OD x 4.52mm Thk

- rod

1шт.

12

564808R91

WIPER

- rod

1шт.

Выбрано товаров: 13
