Запчасти Case IH 1010 (8-14) - REEL DRIVE MOTOR (35) - HYDRAULIC SYSTEMS

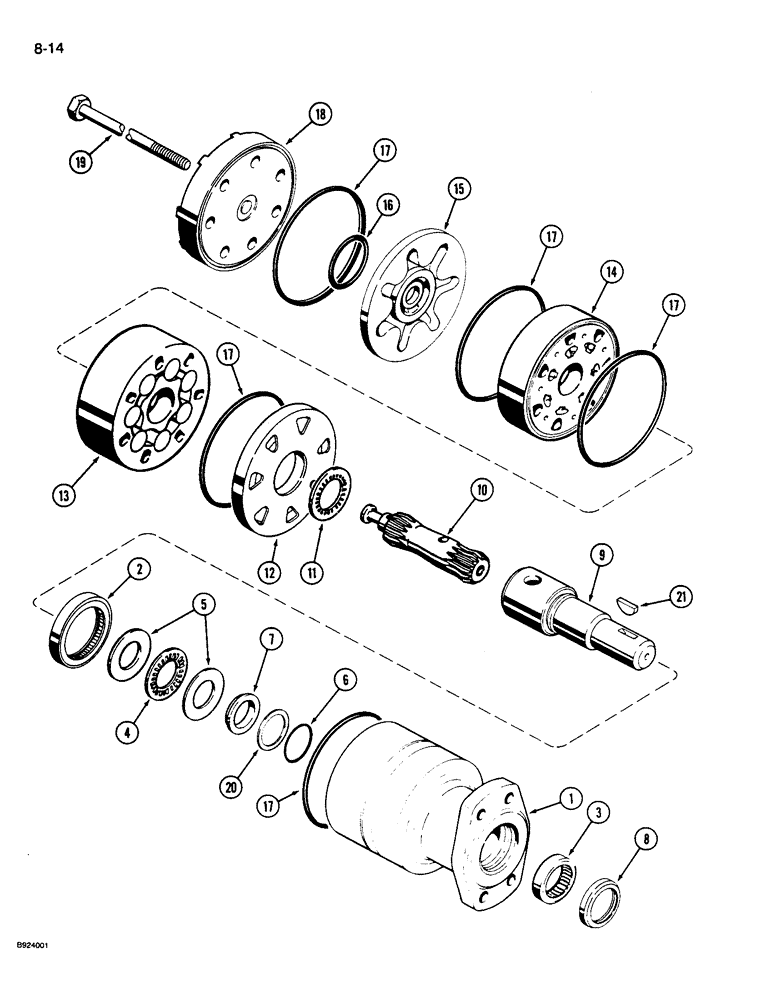

Схема запчастей Case IH 1010 - (8-14) - REEL DRIVE MOTOR (35) - HYDRAULIC SYSTEMS
2
7
17
17
19
13
17
17
18
3
21
8
14
15
17
6
20
4
5
1
11
16
10
12
9

Артикул

Название

Примечание

Количество

1986619C1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - reel drive (TRW MF060613CCCC), (replaces 93404C1 or 173828C1 motors)

1шт.

1986619C1R

REMAN-HYD MOTOR

1010, Prior To S/N JJC0200000

1шт.

1986619C1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - motor

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - needle, large

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - needle, small

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - thrust, shaft

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - thrust, bearing

2шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, seal, housing

1шт.

Part of Seal Kit, P/N 174397C2

1шт.

Part of Seal Kit, P/N 1980156C1

1шт.

Part of Seal Kit, P/N 700709231

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - housing

1шт.

Part of Seal Kit, P/N 174397C2

1шт.

Part of Seal Kit, P/N 1980156C1

1шт.

Part of Seal Kit, P/N 700709231

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - shaft, outer

1шт.

Part of Seal Kit, P/N 174397C2

1шт.

Part of Seal Kit, P/N 1980156C1

1шт.

Part of Seal Kit, P/N 700709231

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - coupling

1шт.

10

NSS

NOT SOLD SEPARAT

LINK - drive

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - thrust, link

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

13

NSS

NOT SOLD SEPARAT

ROTOR - drive motor

1шт.

14

NSS

NOT SOLD SEPARAT

MANIFOLD - plate

1шт.

15

NSS

NOT SOLD SEPARAT

COMMUTATOR - motor

1шт.

16

NSS

NOT SOLD SEPARAT

RING - seal, small

1шт.

Part of Seal Kit, P/N 174397C2

1шт.

Part of Seal Kit, P/N 1980156C1

1шт.

Part of Seal Kit, P/N 700709231

1шт.

17

NSS

NOT SOLD SEPARAT

RING - seal, large

5шт.

Part of Seal Kit, P/N 174397C2

1шт.

Part of Seal Kit, P/N 1980156C1

1шт.

Part of Seal Kit, P/N 700709231

1шт.

18

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - special

7шт.

20

NSS

NOT SOLD SEPARAT

WASHER -flat

1шт.

Part of Seal Kit, P/N 174397C2

1шт.

Part of Seal Kit, P/N 1980156C1

1шт.

Part of Seal Kit, P/N 700709231

1шт.

21

NSS

NOT SOLD SEPARAT

KEY - shaft

1шт.

1980156C1

SEAL KIT

KIT - seal, Includes: ref. nos. 6, 7, 8, 16, 17 and 20, use with motor 93404C1, part number stamped on motor

1шт.

174397C2

SEAL KIT

KIT - seal. Includes: ref. nos. 6, 7, 8, 16, 17 and 20, use with motor 173828C1, part number stamped on motor

1шт.

700709231

SEAL KIT

KIT - seal, Includes: ref. nos. 6, 7, 8, 16, 17 and 20, use with motor 1986619C1, part number stamped on motor

1шт.

Выбрано товаров: 46
