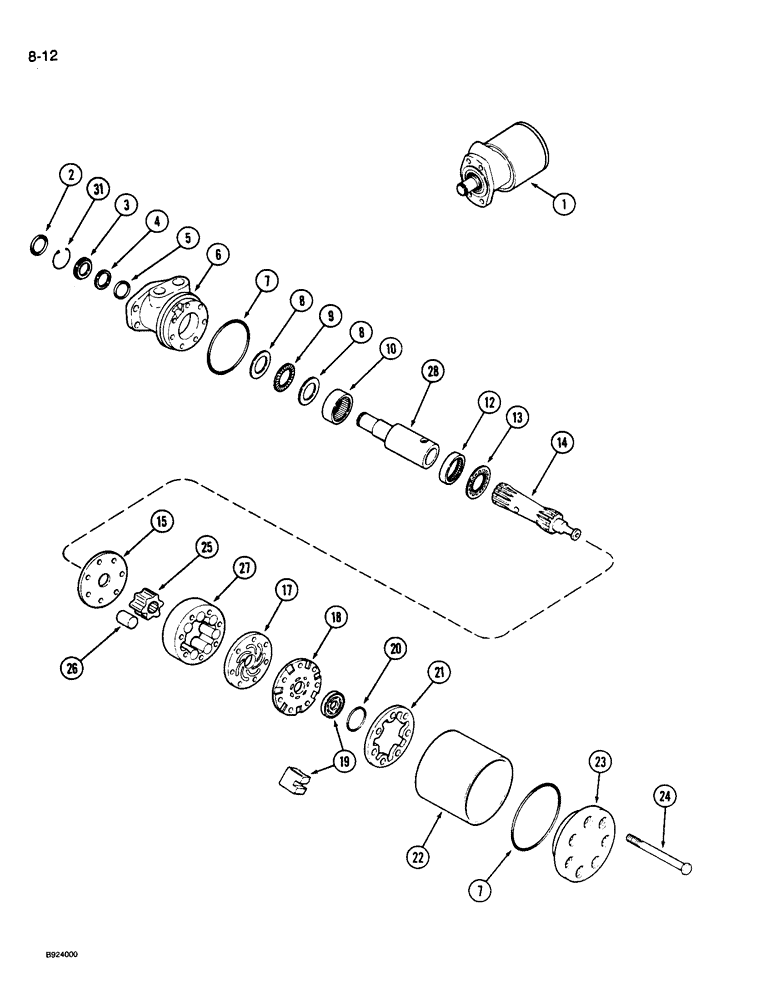

Запчасти Case IH 1010 (8-12) - REEL DRIVE MOTOR (35) - HYDRAULIC SYSTEMS

1

173828C91

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - reel drive (Order 1986619C1 motor on Figure 8-14)

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of seal kit P/N 174397C2

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - back-up

1шт.

Part of seal kit P/N 174397C2

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER

1шт.

Part of seal kit P/N 174397C2

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of seal kit P/N 174397C2

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

7

NSS

NOT SOLD SEPARAT

RING - seal

2шт.

Part of seal kit P/N 174397C2

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - thrust

2шт.

9

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

14

NSS

NOT SOLD SEPARAT

LINK- drive

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - manifold

1шт.

18

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

19

NSS

NOT SOLD SEPARAT

COMMUTATOR

1шт.

20

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

Part of seal kit P/N 174397C2

1шт.

21

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

23

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - end

1шт.

24

NSS

NOT SOLD SEPARAT

BOLT

7шт.

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY

1шт.

25

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

26

NSS

NOT SOLD SEPARAT

VANE

7шт.

27

NSS

NOT SOLD SEPARAT

STATOR

1шт.

28

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - coupling

1шт.

31

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of seal kit P/N 174397C2

1шт.

174397C2

SEAL KIT

KIT - seal, Includes: Ref. 2, 3, 4, 5, 7, 20 and 31

1шт.
