Запчасти Case IH 1010 (8-04) - REEL FORE AND AFT HYDRAULIC SYSTEM, 15.0, 17.5 AND 20.0 FOOT HEADER (35) - HYDRAULIC SYSTEMS

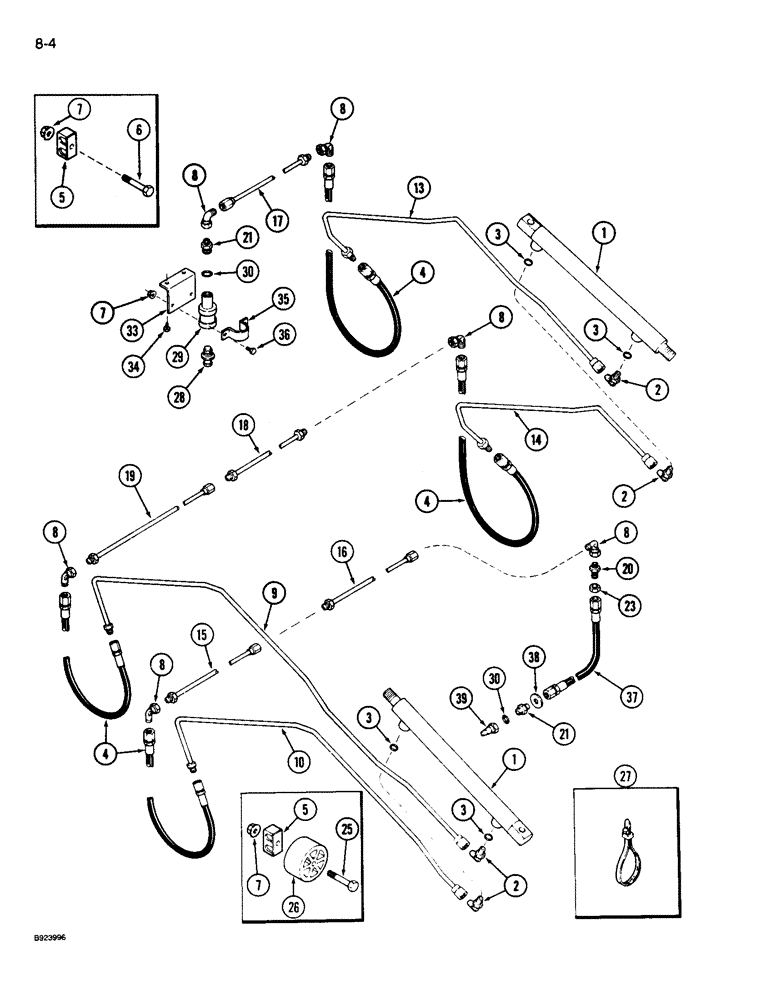

Схема запчастей Case IH 1010 - (8-04) - REEL FORE AND AFT HYDRAULIC SYSTEM, 15.0, 17.5 AND 20.0 FOOT HEADER (35) - HYDRAULIC SYSTEMS
7
33
3
8
2
17
8
16
4
8
15
39
7
6
34
2
18
26
3
5
14
8
28
3
4
23
7
3
1
10
9
37
8
27
13
30
4
1
21
38
20
5
25
8
2
30
21
35
36
19
29

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - fore and aft (See Figure 8-16)

2шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

4шт.

4

1264580C1

HYDRAULIC HOSE,6.40 mm ID x 685.00 mm

HOSE ASSEMBLY - hydraulic, 635 mm

4шт.

4

183543C1

HOSE

ASSEMBLY - hydraulic, 661 mm (If equipped)

4шт.

5

183825C1

CLAMP

- hose and tube

8шт.

6

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

4шт.

7

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT - hex flange lock, 1/4 inch NC

10шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 3/8 tube, 9/16-18 inch thread

6шт.

9

1316727C2

TUBE

ASSEMBLY - fore and aft, right cylinder

1шт.

10

1316728C1

TUBE

ASSEMBLY - fore and aft, right cylinder

1шт.

13

1316729C1

TUBE

ASSEMBLY - fore and aft, left cylinder

1шт.

14

1316730C1

TUBE

ASSEMBLY - fore and aft, left cylinder

1шт.

15

1338414C1

TUBE,0.375" OD, 275 mm Length

ASSEMBLY - fore and aft (15.0 foot) (Replaces 1316607C1)

1шт.

15

1338416C1

TUBE,0.375" OD, 652 mm Length

ASSEMBLY - fore and aft (17.5 foot) (Replaces 1316609C1)

1шт.

15

1316596C1

TUBE,0.375" OD, 1033 mm Length

ASSEMBLY - fore and aft (20.0 foot) (Replaces 1316611C1)

1шт.

16

1338419C1

TUBE,0.375" OD, 3027 mm Length

ASSEMBLY - fore and aft

1шт.

17

1316596C1

TUBE,0.375" OD, 1033 mm Length

ASSEMBLY - fore and aft (15.0 foot)

1шт.

17

1316597C1

TUBE,0.375" OD, 1413 mm Length

ASSEMBLY - fore and aft (17.5 foot)

1шт.

17

1316601C1

TUBE,0.375" OD, 1794 mm Length

ASSEMBLY - fore and aft (20.0 foot)

1шт.

18

1316601C1

TUBE,0.375" OD, 1794 mm Length

ASSEMBLY - fore and aft (15.0 foot) (Replaces 1316612C1)

1шт.

18

1316604C1

TUBE,0.375" OD, 2556 mm Length

ASSEMBLY - fore and aft (17.5 foot) (Replaces 1316667C1)

1шт.

18

1338420C1

HYDRAULIC HOSE,0.375" OD, 3080 mm Length

ASSEMBLY - fore and aft (20.0 foot) (Replaces 1316668C1)

1шт.

19

1338418C1

TUBE,0.375" OD, 2844 mm Length

ASSEMBLY - fore and aft (15.0 and 17.5 foot)

1шт.

19

1338421C1

TUBE,0.375" OD, 3080 mm Length

ASSEMBLY - fore and aft (20.0 foot)

1шт.

20

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

21

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, 3/8 tube

2шт.

23

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - bulkhead union lock, 3/8 tube, 9/16-18 inch thread

1шт.

25

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

4шт.

26

1326573C1

SPACER

- 45 mm

4шт.

27

533959R1

CABLE TIE,.135" x 11"

STRAP - hose

2шт.

28

1954133C1

PLUG

PLUG ASSEMBLY - coupling dust

1шт.

29

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - female, 7/8-14 inch

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

33

1316779C1

SUPPORT

ANGLE - quick disconnect support

1шт.

34

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, , Hardened Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

35

1321398C1

CLAMP

- quick disconnect

1шт.

36

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

37

1254527C2

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 1/4 x 37 inch (See Note A)

1шт.

37

129672C2

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 3/8 x 39 inch (See Note B)

1шт.

38

1541792C1

WASHER

WASHER - red (If equipped) (replaces 1327631C1)

1шт.

39

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8 NF

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

Выбрано товаров: 42
