Запчасти Case IH 1010 (8-02) - REEL DRIVE MOTOR SYSTEM (35) - HYDRAULIC SYSTEMS

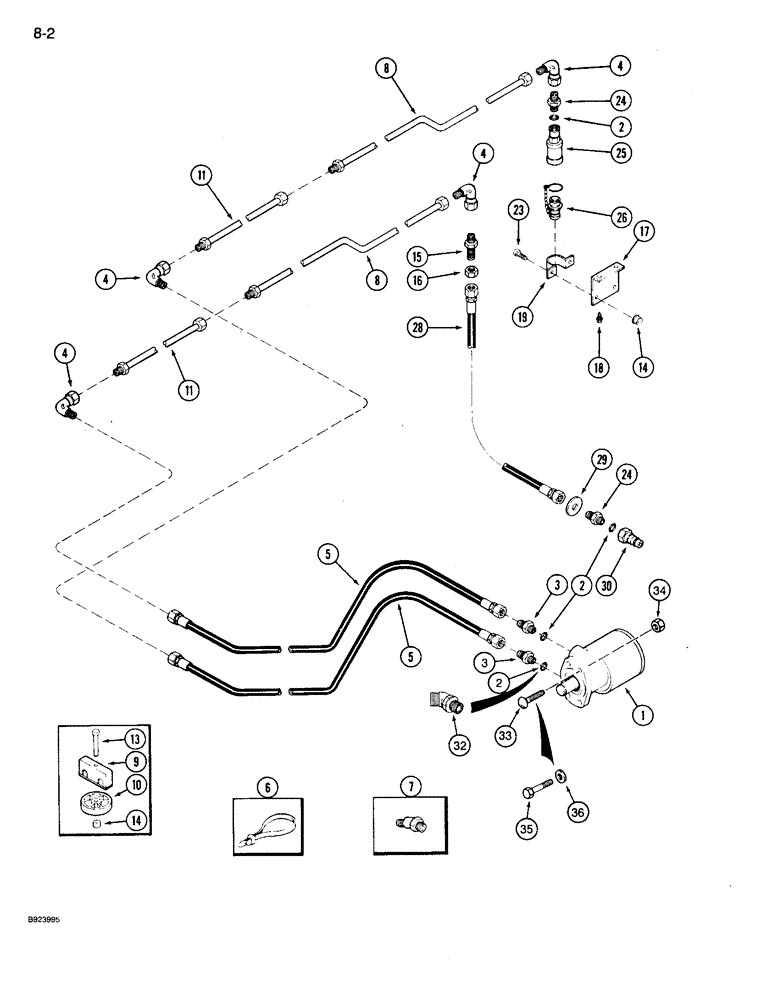

Схема запчастей Case IH 1010 - (8-02) - REEL DRIVE MOTOR SYSTEM (35) - HYDRAULIC SYSTEMS
18
32
29
34
17
24
11
3
5
30
15
2
24
4
10
11
3
16
14
4
14
2
19
7
13
8
1
5
8
36
28
25
33
2
4
35
23
26
4
6
9

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

MOTOR ASSEMBLY - hydraulic, reel drive (See Figure 8-12 or 8-14)

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, used with 93404C1 or 173828C91 reel drive motor 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

4шт.

5

185853C1

HOSE

ASSEMBLY - hydraulic, 3/8 ID x 33 inch

2шт.

6

533959R1

CABLE TIE,.135" x 11"

STRAP - tie, nylon, 10 inch

2шт.

7

1304883C1

ELBOW

- 45 degree (If equipped)

2шт.

8

1338406C1

TUBE,0.5" OD, 2820 mm Length

ASSEMBLY - reel drive

2шт.

9

1301178C1

CLAMP

- tube, double

1шт.

10

1326572C1

SPACER

- 10 mm

1шт.

11

1338408C1

TUBE,0.5" OD, 563 mm Length

ASSEMBLY - reel drive (15.0 foot) (Replaces 1316592C1)

2шт.

11

1316643C1

SHAFT

TUBE ASSEMBLY - reel drive (17.5 foot) (Replaces 1316593C1)

2шт.

11

1338410C1

TUBE,0.5" OD, 1324 mm Length

ASSEMBLY - reel drive (20.0 foot) (Replaces 1316595C1)

2шт.

11

1338411C1

TUBE,0.5" OD, 1705 mm Length

ASSEMBLY - reel drive (22.5 foot) (Replaces 1316589C1)

2шт.

11

1338412C1

TUBE,0.5" OD, 2086 mm Length

ASSEMBLY - reel drive (25.0 foot) (Replaces 1316590C1)

2шт.

11

1338413C1

TUBE,0.5" OD, 2848 mm Length

ASSEMBLY - reel drive (30.0 foot) (Replaces 1316594C1)

2шт.

13

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

14

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT - hex flange lock, 1/4 inch NC

1шт.

15

9403255

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION - bulkhead, 1/2-16 inch flared

1шт.

16

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT - bulkhead hex lock, 1/2-16 inch

1шт.

17

1316779C1

SUPPORT

ANGLE - quick disconnect support

1шт.

18

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

19

1321398C1

CLAMP

- quick disconnect

1шт.

23

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

24

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

25

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - self sealing female, 7/8-14 thread

1шт.

26

1954133C1

PLUG

PLUG ASSEMBLY - coupling

1шт.

28

1316829C1

HOSE

ASSEMBLY - hydraulic, 3/8 ID x 38 inch

1шт.

29

1345266C1

WASHER

- white

1шт.

30

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8 NF

1шт.

31

353-508

DUST CAP

CAP - dust, 1/2 inch hydraulic tube, if used, not shown

3шт.

32

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, used with 1986619C1 reel drive motor

2шт.

33

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch, if used

2шт.

34

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

35

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

If used Hex, 1/2"-13 x 1 3/4", G5

2шт.

36

25536R1

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch, hardened, if used

2шт.

Выбрано товаров: 36
