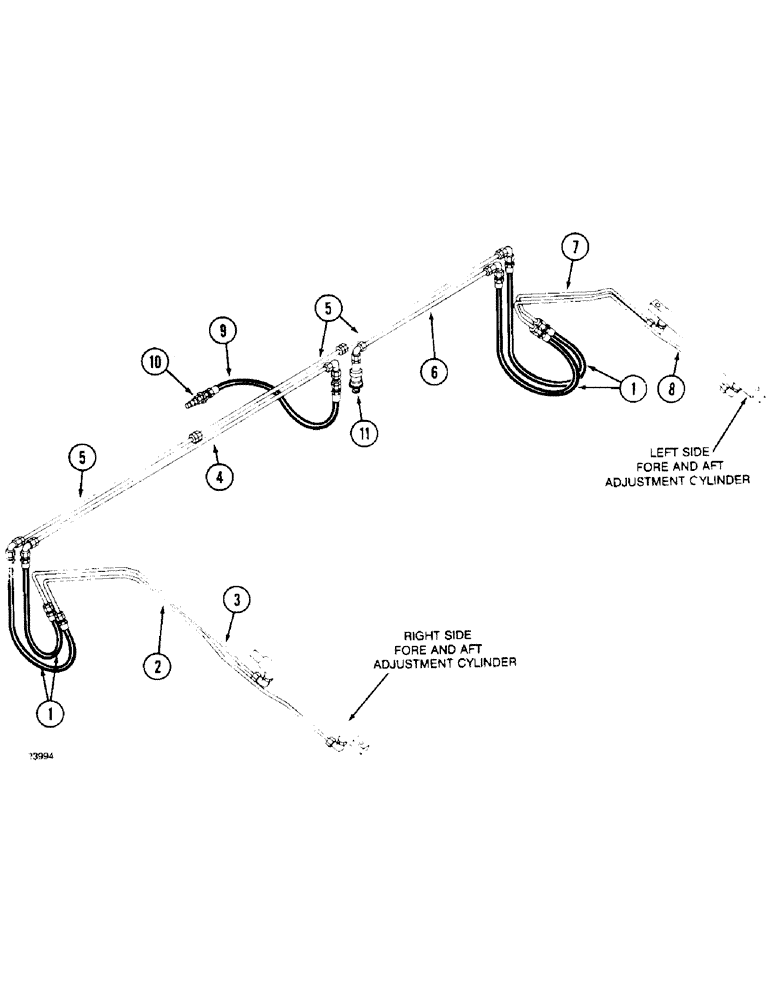

Запчасти Case IH 1010 (1-12) - PICTORIAL INDEX, REEL FORE AND AFT ADJUSTMENT HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS
7
6
9
5
2
1
11
5
10
4
3
8
1
№
Артикул
Название
Примечание
Количество
1
Reel Adjustment Cylinder Hose, Page 8-5, 8-7
1шт.
2
Right Adjustment Cylinder Tube, Long, Page 8-5, 8-7
1шт.
3
Right Adjustment Cylinder Tube, Short, Page 8-5, 8-7
1шт.
4
Right Adjustment Cylinder Cross Tube, Page 8-5, 8-7
1шт.
5
Cylinder to Cylinder Cross Tubes, Page 8-5, 8-7
1шт.
6
Left Adjustment Cylinder Cross Tube, Page 8-5, 8-7
1шт.
7
Left Adjustment Cylinder Tube, Short, Page 8-5, 8-7
1шт.
8
Left Adjustment Cylinder Tube, Long, Page 8-5, 8-7
1шт.
9
Reel Adjustment to Combine Hose, Page 8-5, 8-7
1шт.
10
Male Coupling, Page 8-5, 8-7
1шт.
11
Female Coupling, Page 8-5, 8-7
1шт.
Выбрано товаров: 11
