(9-142) - FEEDER FACE DEFLECTOR, 1420, 1440, 1460 AND 1480 COMBINES

Запчасти Case IH 1010 (9-142) - FEEDER FACE DEFLECTOR, 1420, 1440, 1460 AND 1480 COMBINES (58) - ATTACHMENTS/HEADERS

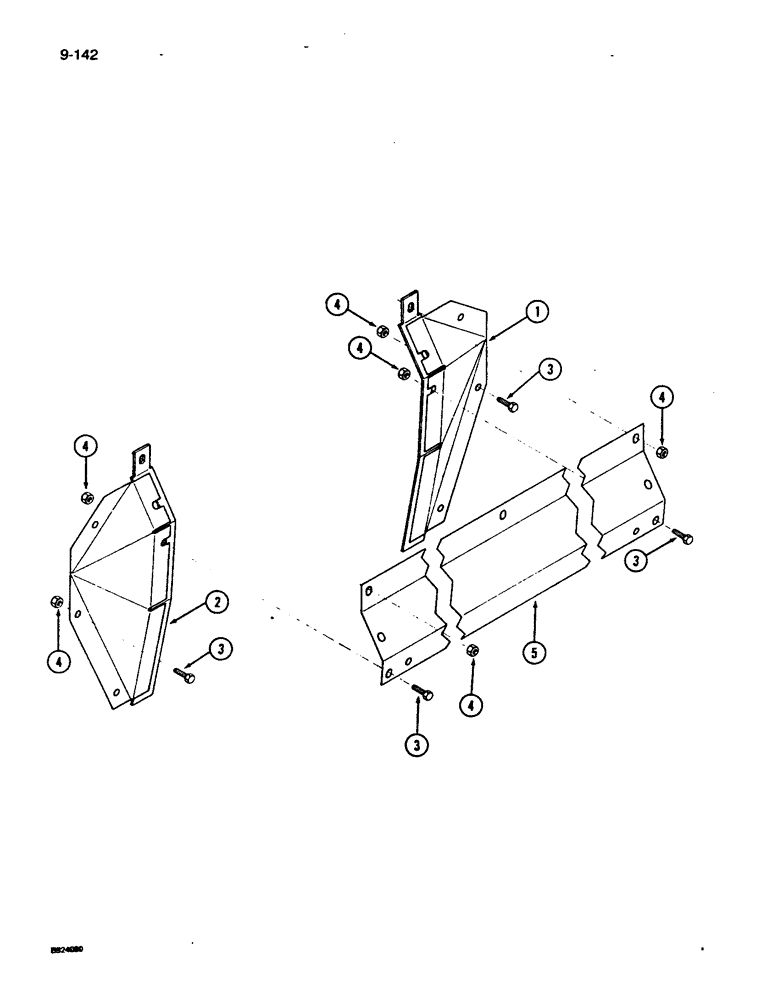

Схема запчастей Case IH 1010 - (9-142) - FEEDER FACE DEFLECTOR, 1420, 1440, 1460 AND 1480 COMBINES (58) - ATTACHMENTS/HEADERS
3
4
3
4
3
2
5
1
4
4
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

184853C1

DEFLECTOR

ASSEMBLY - left, feeder front

1шт.

2

184854C1

DEFLECTOR

ASSEMBLY - right, feeder front

1шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

11шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

11шт.

5

181669C1

SHIELD

COVER - feeder adapter (1480 Combine)

1шт.

5

1319220C1

SHIELD

COVER - feeder adapter (1420, 1440 and 1460 Combines)

1шт.
