Запчасти Case IH 1010 (9-140) - AUTOMATIC HEADER CONTROL (58) - ATTACHMENTS/HEADERS

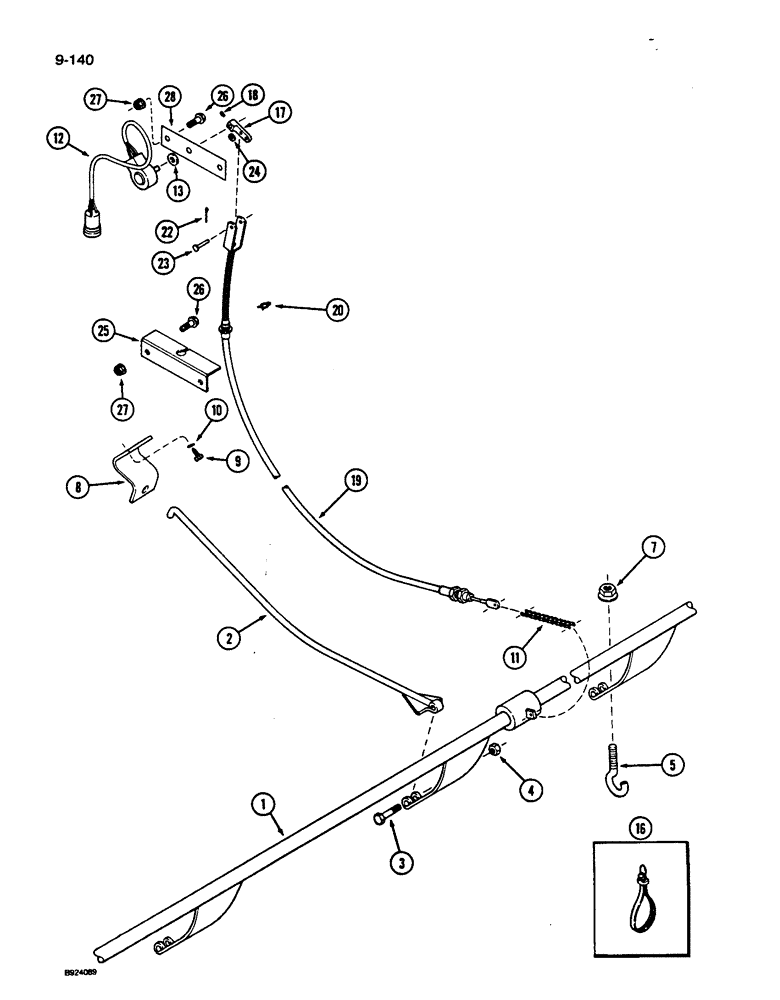

Схема запчастей Case IH 1010 - (9-140) - AUTOMATIC HEADER CONTROL (58) - ATTACHMENTS/HEADERS
4
3
16
13
27
1
12
19
26
22
26
11
8
25
23
10
28
5
9
27
17
20
7
2
24
18

Артикул

Название

Примечание

Количество

1

1320654C1

FINGER BAR

FINGER ASSEMBLY - bar (15.0 foot)

1шт.

1

1320655C1

FINGER BAR

FINGER ASSEMBLY - bar (17.5 foot)

1шт.

1

1320656C1

FINGER BAR

FINGER ASSEMBLY - bar (20.0 foot)

1шт.

1

1320904C1

FINGER BAR

FINGER ASSEMBLY - bar (22.5 foot)

1шт.

1

1320658C1

POINTER

FINGER ASSEMBLY - bar (25.0 foot)

1шт.

1

1320659C1

POINTER

FINGER ASSEMBLY - bar (30.0 foot)

1шт.

2

1320903C1

ROD

ASSEMBLY

1шт.

3

326-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

1шт.

4

9413992

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC, Grade 8

1шт.

5

1316391C1

EYEBOLT

BOLT - height control

1шт.

REF # 5 - TOO SHORT FOR USE WITH 1 1/2" SECTION SYSTEM - WORKS WITH EVERY

1шт.

OTHER HOLD DOWN NOT INSTALLED. 09-MAY-96

1шт.

7

1313463C1

FLANGE NUT

NUT - small flange, 7/16 inch

1шт.

8

1320601C1

ROD

SUPPORT - rod

1шт.

9

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

174266C1

CHAIN (AG)

CHAIN - finger pivot

1шт.

REF # 11 - P/N 174266C1 LOWER SUPPORT IS A WELDMENT P/N 1308300C1.

1шт.

12

245885C92

POTENTIOMETER

1шт.

12

1301147C91

POTENTIOMETER

For 1400 Series Combines with Electro-Hydraulics

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

16

533959R1

CABLE TIE,.135" x 11"

STRAP - tie

1шт.

17

1968782C1

ARM

- potentiometer

1шт.

18

483-1084

SET SCREW,Hex Soc, #8-32 x 1/4"

SCREW - set, hex socket headless, No. 8 NC x 1/4 inch, cup

1шт.

19

1314088C2

CABLE PULLING GRIP

CABLE - control

1шт.

20

148151

COTTER PIN,Hairpin, 716"

CLIP - control cable

1шт.

22

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

23

27329R1

CLEVIS PIN,4.78mm OD x 29.26mm L

PIN - clevis, 3/16 x 15/64 inch

1шт.

24

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

9шт.

25

1308301C1

BRACKET

ANGLE - cable mounting

1шт.

26

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flanged hex lock, 5/16 NC x 3/4 inch

4шт.

27

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

4шт.

28

1308299C2

SUPPORT

STRIP - potentiometer mounting

1шт.

Выбрано товаров: 33
