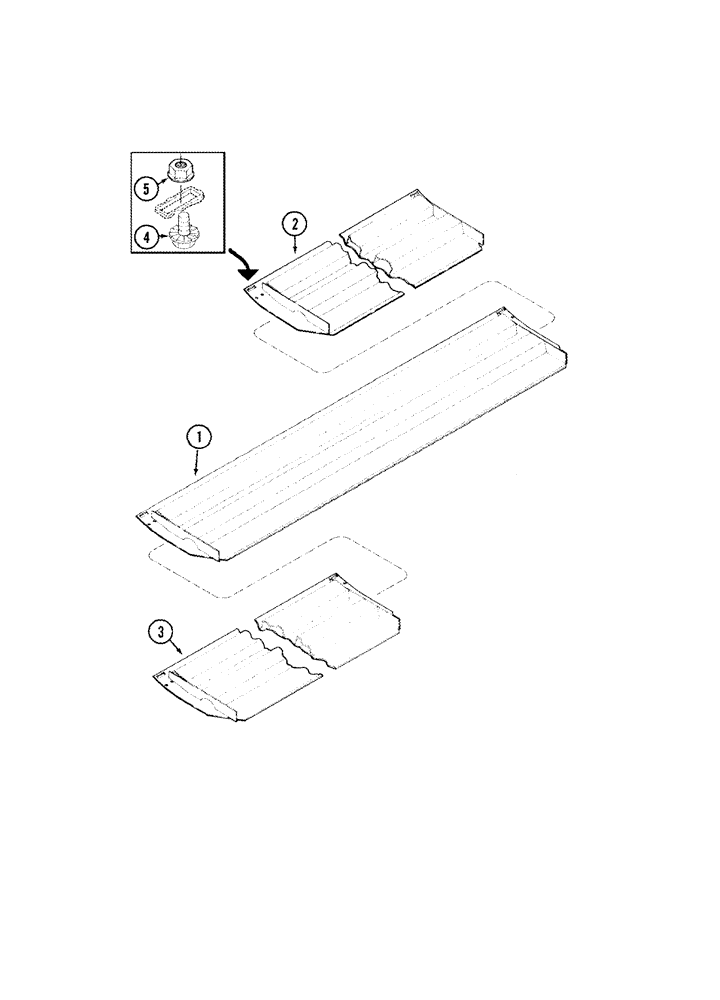

Запчасти Case IH 1010 (9-136) - BOTTOM SHIELDS, 15.0, 17.5 AND 20.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

1307045C1

SHIELD

ASSEMBLY - center

1шт.

2

1307046C1

SHIELD

ASSEMBLY - left (15.0 foot)

1шт.

2

1307048C1

SHIELD

ASSEMBLY - left (17.5 foot)

1шт.

2

1307050C1

SHIELD

ASSEMBLY - left (20.0 foot)

1шт.

3

1307047C1

SHIELD

ASSEMBLY - right (15.0 foot)

1шт.

3

1307049C1

SHIELD

ASSEMBLY - right (17.5 foot)

1шт.

3

1307051C1

SHIELD

ASSEMBLY - right (20.0 foot)

1шт.

4

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head, square neck, 1/2 NC x 1 inch

6шт.

5

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - flange lock, prevailing torque, 1/2 inch NC

6шт.
