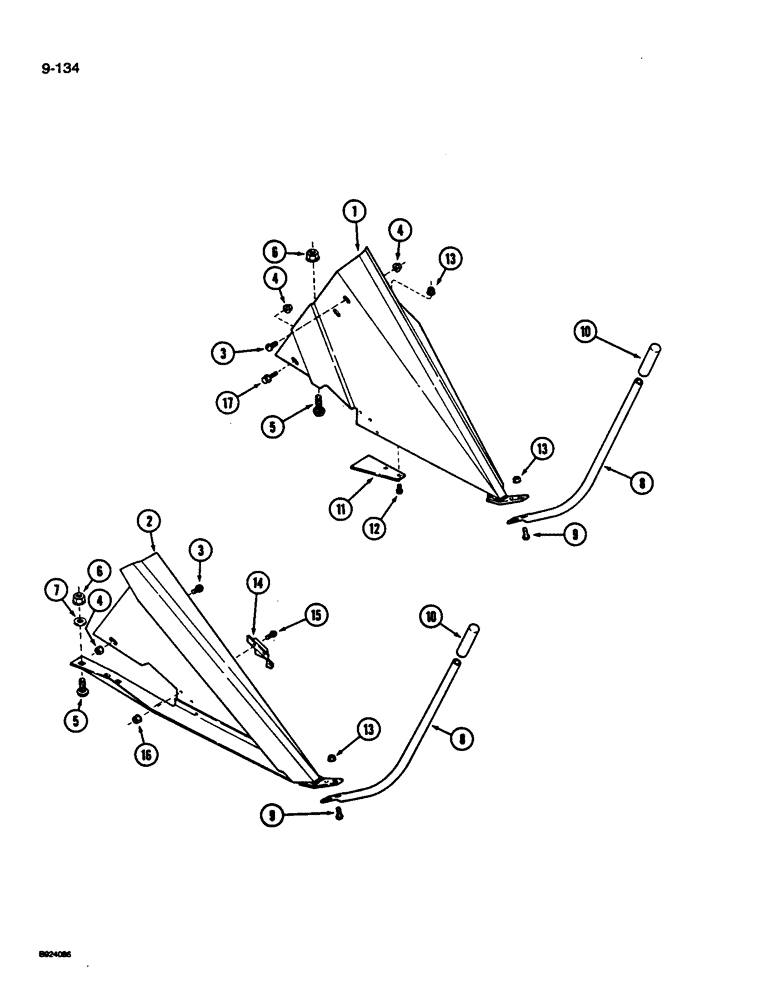

Запчасти Case IH 1010 (9-134) - DIVIDERS (58) - ATTACHMENTS/HEADERS

1

1316481C1

DIVIDER

- left

1шт.

2

1316486C1

DIVIDER

- right

1шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss, 3/8 NC x 1 inch

4шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange hex lock, 3/8 inch NC

5шт.

5

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

7шт.

6

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- flange hex lock, 1/2 inch NC

7шт.

7

495-81017

WASHER,13.49mm ID x 19.05mm OD x 3.4mm Thk

- flat, 17/32 x 3/4 x 7/64 inch

2шт.

8

1316492C2

TUBE

ASSEMBLY - divider (Replaces 1316563C2)

2шт.

9

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

- slotted truss head, 5/16 NC x 1-1/2 inch

4шт.

10

1326571C1

CAP

- end, divider rod

2шт.

11

1316704C1

LARGE PLATE

PLATE - left divider

1шт.

12

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

2шт.

13

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange hex lock, 5/16 inch NC

6шт.

14

1326343C1

DEFLECTOR

R - right divider crop

1шт.

ITEM # 14 PER HERB HOLLAND, THERE IS NO LEFT HAND DEFLECTOR.

1шт.

15

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss, 1/4 NC x 3/4 inch

3шт.

16

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange hex lock, 1/4 inch NC

3шт.

17

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- flange hex lock, 3/8 NC x 1 inch

1шт.
