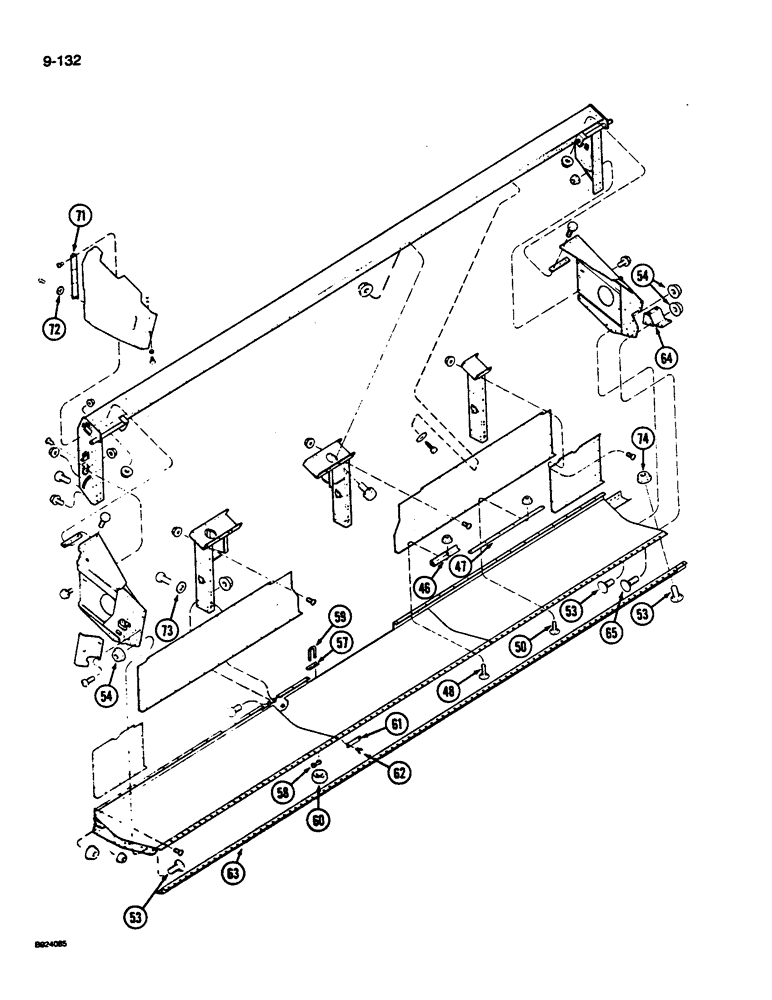

Запчасти Case IH 1010 (9-132) - MAIN FRAME, 22.5, 25.0 AND 30.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS

46

1316564C1

ANGLE

- stripper extension

2шт.

47

189825C2

STRIPPER

BAR - adjusted auger stripper

1шт.

48

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

1шт.

50

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

53

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

15шт.

54

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

8шт.

57

1307370C1

SUPPORT

- feeder latch U-bolt (If equipped)

2шт.

58

1307371C1

LATCH

SUPPORT - feeder latch

2шт.

59

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

- feeder latch

2шт.

60

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

61

1316148C1

COVER

- U-bolt access hole (If equipped)

2шт.

62

275-1478

SELF-TAP SCREW,1/4" - 14 x 1/2"

SCREW - hex, self tapping, 1/4-14 x 1/2 inch

4шт.

63

REF

INSTRUCTION

BAR - cutter (See Page 9-61 or 9-63)

1шт.

64

181755C1

SUPPORT

ASSEMBLY - knife box

1шт.

65

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

71

1326230C1

HINGE

- right shield

1шт.

72

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

73

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch

4шт.

74

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - flanged, prevailing torque, 1/2 inch NC

9шт.
