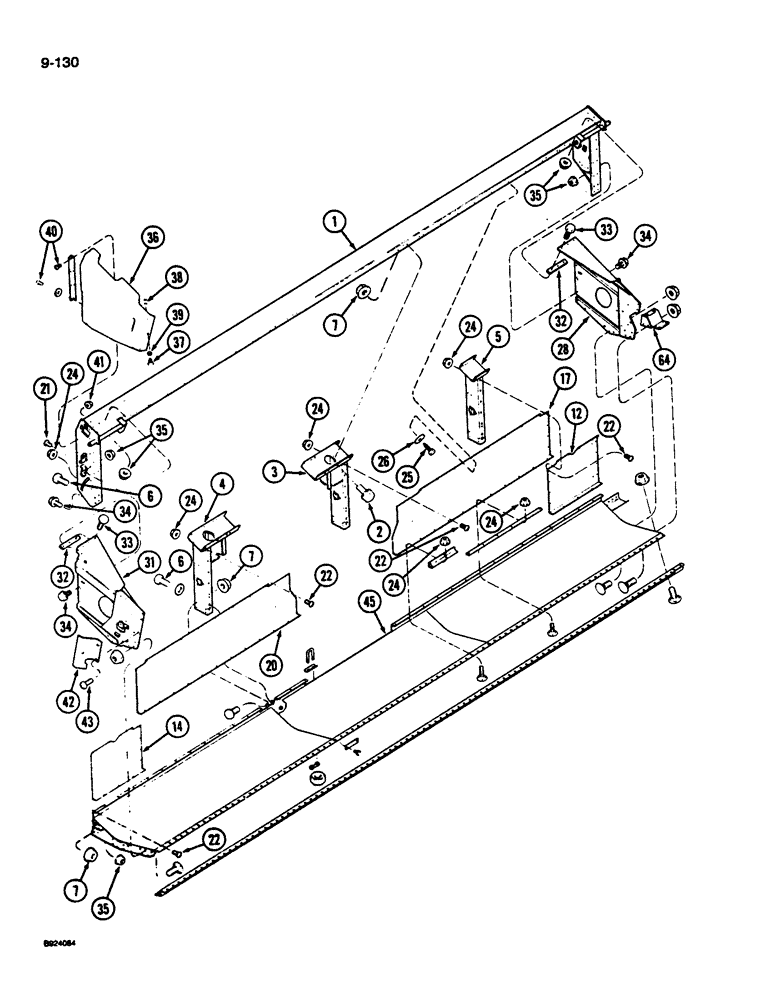

Запчасти Case IH 1010 (9-130) - MAIN FRAME, 22.5, 25.0 AND 30.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

1326048C91

FUNNEL

BEAM - main, 22.5 foot, with decals, if used, see item 1A

1шт.

1a

106038A1

FRAME

BEAM - main, 22.5 foot, with decals, if used, not shown

1шт.

See Figure Note.

1шт.

1

1326050C91

FUNNEL

BEAM - main, 25.0 foot, with decals, if used, see item 1A

1шт.

1a

106039A1

FRAME

BEAM - main, 25.0 foot, with decals, if used, not shown

1шт.

See Figure Note.

1шт.

1

1326051C91

FUNNEL

BEAM - main, 30.0 foot, with decals, if used, see item 1A

1шт.

1a

106040A1

FRAME

BEAM - main, 30.0 foot, with decals, if used, not shown

1шт.

See Figure Note.

1шт.

2

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange lock, 1/2 NC x 1 inch

20шт.

3

1307374C2

SUPPORT

POST ASSEMBLY - left vertical

1шт.

4

1307375C2

SUPPORT

POST ASSEMBLY - right vertical

1шт.

5

1307376C2

SUPPORT

POST ASSEMBLY - (2) intermediate without split drive; (1) left-hand intermediate with split drive

1-2шт.

5a

106074A1

SUPPORT

POST ASSEMBLY - right-hand intermediate, used with (1) 1307376C2 left-hand intermediate, if used, not shown

1шт.

See Figure Note.

1шт.

6

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

40шт.

7

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- flanged hex lock, 1/2 inch NC, Grade 8

56шт.

12

1307093C1

SHEET

ASSEMBLY - left back (22.5 foot)

1шт.

12

1307095C1

SHEET

ASSEMBLY - left back (25.0 foot)

1шт.

12

1307097C1

SHEET

ASSEMBLY - left back (30.0 foot)

1шт.

14

1307094C1

SHEET

ASSEMBLY - right back (22.5 foot)

1шт.

14

1307096C1

SHEET

ASSEMBLY - right back (25.0 foot)

1шт.

14

1307098C1

SHEET

ASSEMBLY - right back (30.0 foot)

1шт.

17

1326062C91

SUPPORT

SHEET ASSEMBLY - left center back (With decals)

1шт.

20

1326063C92

SUPPORT

SHEET ASSEMBLY - right center back (With decal) (replaces 1326063C91)

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

1шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

39шт.

24

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex lock, 5/16 inch NC

1шт.

25

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, , Hardened Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

26

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

28

1307356C1

SUPPORT ASSY.

SHEET ASSEMBLY - left end

1шт.

31

1307357C1

SUPPORT

SHEET ASSEMBLY - right end, if used, see item 31A

1шт.

31a

106062A1

SUPPORT

SHEET ASSEMBLY - right end, if used, not shown

1шт.

See Figure Note.

1шт.

32

1313966C1

BAR

- shim

2шт.

33

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

6шт.

34

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flanged hex, 3/8 NC x 3/4 inch

16шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

24шт.

36

1316566C3

SHIELD

- header, right (replaces 1316566C2)

1шт.

37

1326408C2

STUD,25.4mm OD x 52.3mm L

STUD - fastener

1шт.

38

1326407C1

RETAINER

- shield stud

2шт.

39

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch

6шт.

40

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss, 1/4 NC x 1/2 inch

8шт.

41

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flanged hex lock, 1/4,nch NC

8шт.

42

1316721C1

SUPPORT

ASSEMBLY - right shield front

1шт.

43

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

45

1307022C1

BEAM ASSY.

BEAM ASSEMBLY - lower (22.5 foot)

1шт.

45

1307023C1

BEAM ASSY.

BEAM ASSEMBLY - lower (25.0 foot)

1шт.

45

1307024C1

BEAM ASSY.

BEAM ASSEMBLY - lower (30.0 foot)

1шт.
