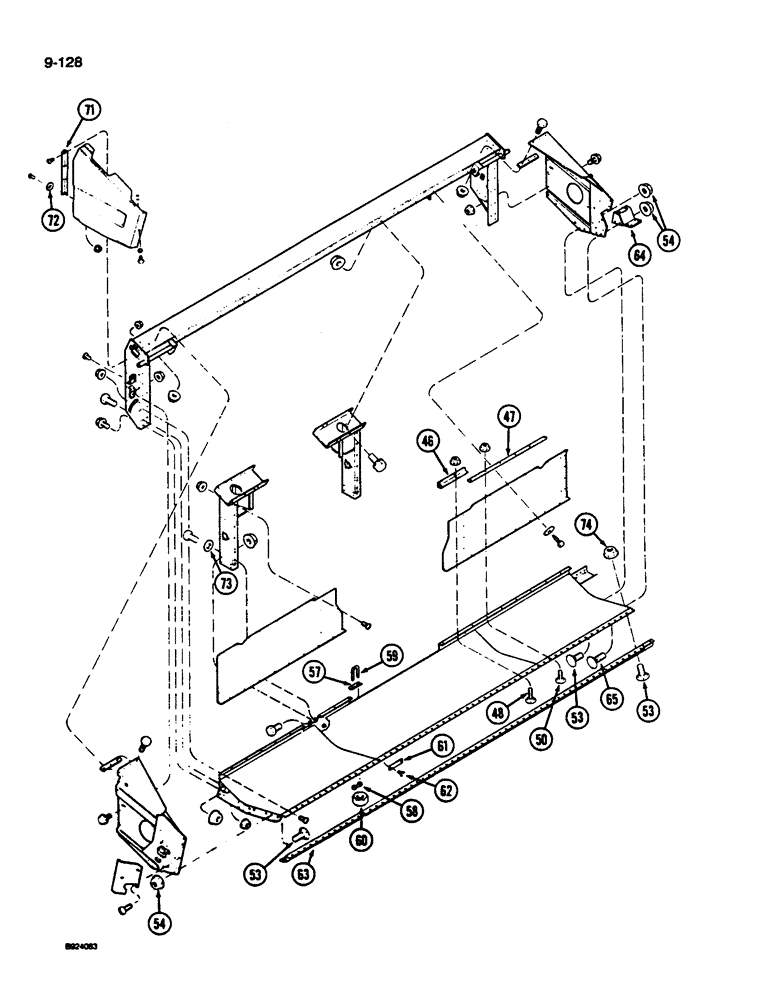

Запчасти Case IH 1010 (9-128) - MAIN FRAME, 15.0, 17.5 AND 20.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
46
1316564C1
ANGLE
- stripper extension
2шт.
47
189825C2
STRIPPER
BAR - adjusted auger stripper
1шт.
48
434-516
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5
BOLT - round head square neck, 5/16 NC x 1 inch
1шт.
50
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
BOLT - round head square neck, 5/16 NC x 3/4 inch
1шт.
53
434-816
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT - round head square neck, 1/2 NC x 1 inch
11шт.
54
131-930
FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5
- hex flange, self locking, 1/2 inch NC
8шт.
57
1307370C1
SUPPORT
- feeder latch U-bolt (If equipped)
2шт.
58
1307371C1
LATCH
SUPPORT - feeder latch
2шт.
59
177134C3
U-BOLT,5/8" - 11 x 2.18" W x 4.60" L
- feeder latch
2шт.
60
231-14410
NUT,5/8"-11, GB
NUT, LOCK, 5/8"-11, GB
4шт.
61
1316148C1
COVER
- U-bolt access hole (If equipped)
2шт.
62
275-1478
SELF-TAP SCREW,1/4" - 14 x 1/2"
SCREW - hex, self tapping, 1/4-14 x 1/2 inch
4шт.
63
REF
INSTRUCTION
BAR - cutter (See Figure 9-60 or 9-62)
1шт.
64
181755C1
SUPPORT
ASSEMBLY - knife box
1шт.
65
434-820
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
BOLT - round head square neck, 1/2 NC x 1-1/4 inch
2шт.
71
1326230C1
HINGE
- right shield
1шт.
72
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16") 1/4", SAE
4шт.
73
396-31053
WASHER,17/32" x 1 1/16" x .188", HDN
- flat, 17/32 x 1-1/16 x 3/16 inch
2шт.
Выбрано товаров: 19
