(1-10) - PICTORIAL INDEX, REEL LIFT HYDRAULICS

Запчасти Case IH 1010 (1-10) - PICTORIAL INDEX, REEL LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

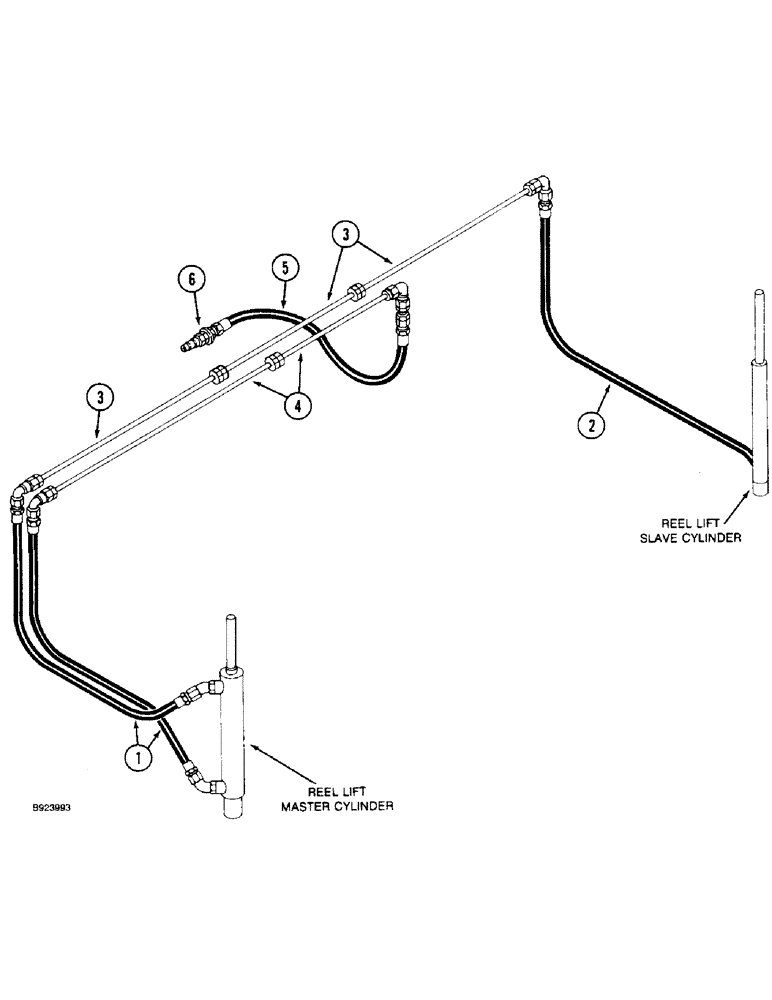

Схема запчастей Case IH 1010 - (1-10) - PICTORIAL INDEX, REEL LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS
1
5
2
4
3
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Reel Lift Master Cylinder Hose, Page 8-9, 8-11

1шт.

2

Reel Lift Cylinder Hose, Page 8-9, 8-11

1шт.

3

Cylinder to Cylinder Cross Tube, Page 8-9, 8-11

1шт.

4

Master Cylinder Cross Tube, Page 8-9, 8-11

1шт.

5

Reel Lift to Combine Hose, Page 8-9, 8-11

1шт.

6

Male Coupling, Page 8-9, 8-11

1шт.
