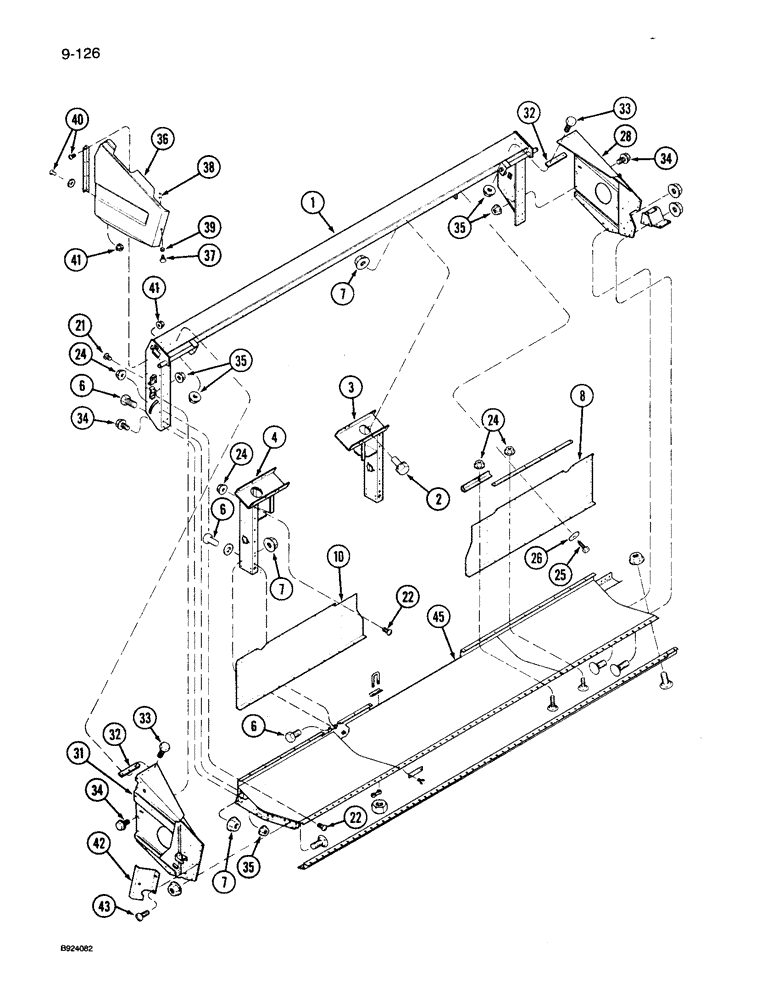

Запчасти Case IH 1010 (9-126) - MAIN FRAME, 15.0, 17.5 AND 20.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

1326043C91

FRAME

BEAM - main, 15.0 foot, with decals, if used, see item 1A

1шт.

1a

106034A1

FRAME

BEAM - main, 15.0 foot, with decals, if used, not shown

1шт.

See Figure Note.

1шт.

1

1326045C91

FUNNEL

BEAM - main, 17.5 foot, with decals, if used, see item 1A

1шт.

1a

106036A1

FRAME

BEAM - main, 17.5 foot, with decals, if used, not shown

1шт.

See Figure Note.

1шт.

1

1326046C91

FUNNEL

BEAM - main, 20.0 foot, with decals, if used, see item 1A

1шт.

1a

106037A1

FRAME

BEAM - main, 20.0 foot, with decals, if used, not shown

1шт.

See Figure Note.

1шт.

2

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange lock, 1/2 NC x 1 inch

12шт.

3

1307374C2

SUPPORT

POST ASSEMBLY - left vertical

1шт.

4

1307375C2

SUPPORT

POST ASSEMBLY - right vertical

1шт.

6

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

22шт.

7

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- flanged hex lock, 1/2 inch NC, Grade 8

32шт.

8

1326056C91

SUPPORT

SHEET ASSEMBLY - left back (15.0 foot) (With decals)

1шт.

8

1326058C91

SUPPORT

SHEET ASSEMBLY - left back (17.5 foot) (With decals)

1шт.

8

1326060C91

SUPPORT

SHEET ASSEMBLY - left back (20.0 foot) (With decals)

1шт.

10

1326057C92

SUPPORT

SHEET ASSEMBLY - right back (15.0 foot) (With decal)

1шт.

(replaces 1326060C91)

1шт.

10

1326059C91

SUPPORT ASSY.

SHEET ASSEMBLY - right back (17.5 foot) (With decal)

1шт.

10

1326061C91

SUPPORT

SHEET ASSEMBLY - right back (20.0 foot) (With decal)

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

1шт.

22

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

27шт.

24

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex lock, 5/16 inch NC

1шт.

25

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, , Hardened Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

26

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

28

1307356C1

SUPPORT ASSY.

SHEET ASSEMBLY - left end

1шт.

31

1307357C1

SUPPORT

SHEET ASSEMBLY - right end, if used, see item 31A

1шт.

31a

106062A1

SUPPORT

SHEET ASSEMBLY - right end, if used, not shown

1шт.

See Figure Note.

1шт.

32

1313966C1

BAR

- shim

2шт.

33

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

6шт.

34

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flanged hex, 3/8 NC x 3/4 inch

16шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

24шт.

36

1316566C3

SHIELD

- header, right (replaces 1316566C2)

1шт.

REF # 36 1316566C3 FOR L.H. SEE FIGURE 9-98

1шт.

37

1326408C2

STUD,25.4mm OD x 52.3mm L

STUD - fastener

1шт.

38

1326407C1

RETAINER

- shield stud

2шт.

39

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch

6шт.

40

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss, 1/4 NC x 1/2 inch

8шт.

41

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flanged hex lock, 1/4,nch NC

8шт.

42

1316721C1

SUPPORT

ASSEMBLY - right shield front

1шт.

43

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

45

1307018C1

BEAM ASSY.

BEAM ASSEMBLY - lower (15.0 foot)

1шт.

45

1307019C2

BEAM ASSY.

BEAM ASSEMBLY - lower (17.5 foot)(replaces 1307019C1)

1шт.

45

1307020C2

BEAM ASSY.

BEAM ASSEMBLY - lower (20.0 foot)(replaces 1307020C1)

1шт.
