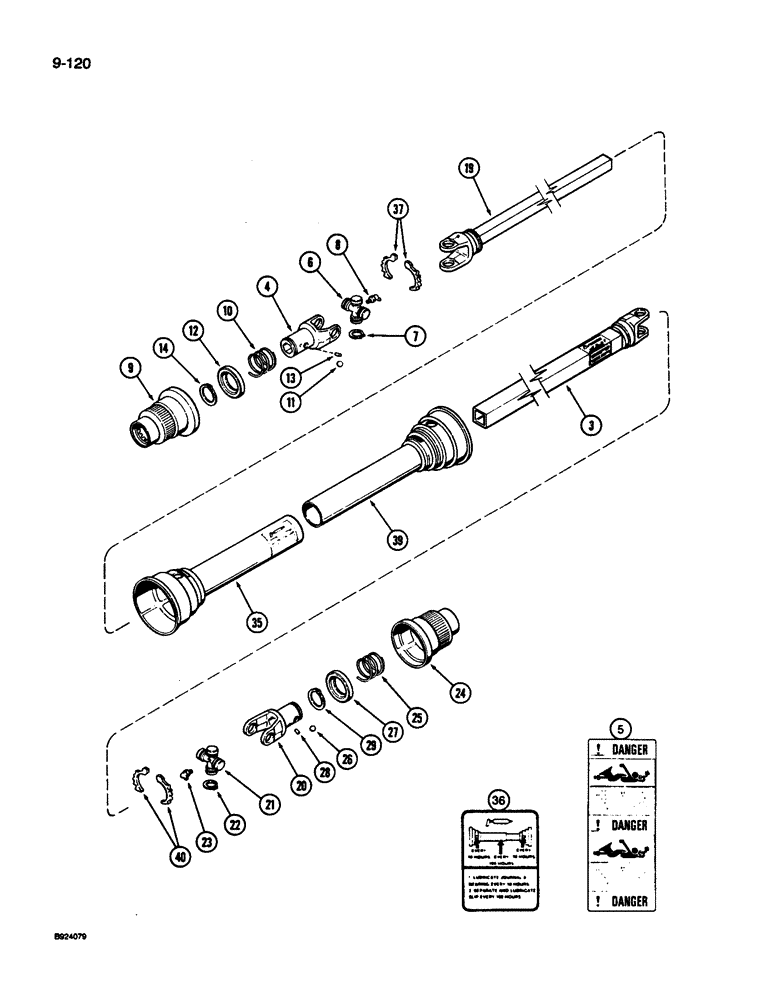

Запчасти Case IH 1010 (9-120) - AUGER AND KNIFE DRIVE SHAFT, 22.5, 25.0 AND 30.0 FOOT HEADER, HAYES-DANA (58) - ATTACHMENTS/HEADERS

1316989C91

SHAFT

ASSEMBLY - drive, header (With decals)

1шт.

1326740C91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, female

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - female, outer

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - outer

1шт.

5

1326528C1

DECAL

- Danger, shield missing, also shown on Figure 9-146, item 19

1шт.

757443

U-JOINT SPIDER

BEARING AND CROSS ASSEMBLY - drive shaft

1шт.

6

NSS

NOT SOLD SEPARAT

CROSS - bearing

1шт.

7

606177R1

SNAP RING

RING - retaining (0.078 inch thick)

1шт.

7

1986059C1

SNAP RING

RING - retaining (0.058 inch thick)

1шт.

8

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT, short

1шт.

9

1326580C1

COLLAR

- yoke

1шт.

10

1326585C1

SPRING

- shield

1шт.

11

21505R1

BALL,1/2" Dia, Stainless

- 1/2 inch

3шт.

12

1326583C1

COLLAR

RACE - shaft retainer

1шт.

13

19877R1

DOWEL

PIN - dowel, 3/16 x 1/2 inch

3шт.

14

258400C1

SNAP RING,#187, Ext

Ring, Snap, #187, Ext

1шт.

1326743C91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, male

1шт.

19

NSS

NOT SOLD SEPARAT

SHAFT - male, inner

1шт.

20

NSS

NOT SOLD SEPARAT

YOKE - drive

1шт.

757443

U-JOINT SPIDER

BEARING AND CROSS ASSEMBLY - drive shaft

1шт.

21

NSS

NOT SOLD SEPARAT

CROSS - bearing

1шт.

22

606177R1

SNAP RING

RING - retaining (0.078 inch thick)

1шт.

22

1986059C1

SNAP RING

RING - retaining (0.058 inch thick)

1шт.

23

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT, short

1шт.

24

1326580C1

COLLAR

- yoke

1шт.

25

1326585C1

SPRING

- shield

1шт.

26

21505R1

BALL,1/2" Dia, Stainless

- 1/2 inch

3шт.

27

1326583C1

COLLAR

RACE - shaft retainer

1шт.

28

19877R1

DOWEL

PIN - dowel, 3/16 x 1/2 inch

3шт.

29

258400C1

SNAP RING,#187, Ext

Ring, Snap, #187, Ext

1шт.

1326746C91

SHIELD

ASSEMBLY - outer (With decal)

1шт.

35

NSS

NOT SOLD SEPARAT

SHIELD - outer

1шт.

36

1326579C1

DECAL

- instructions, drive shaft lubrication, also shown on Figure 9-146, item 21

1шт.

37

1326581C1

COLLAR

BEARING - half

2шт.

1326749C91

SHIELD

ASSEMBLY - inner

1шт.

39

NSS

NOT SOLD SEPARAT

SHIELD - inner

1шт.

40

1326581C1

COLLAR

BEARING - half

2шт.
