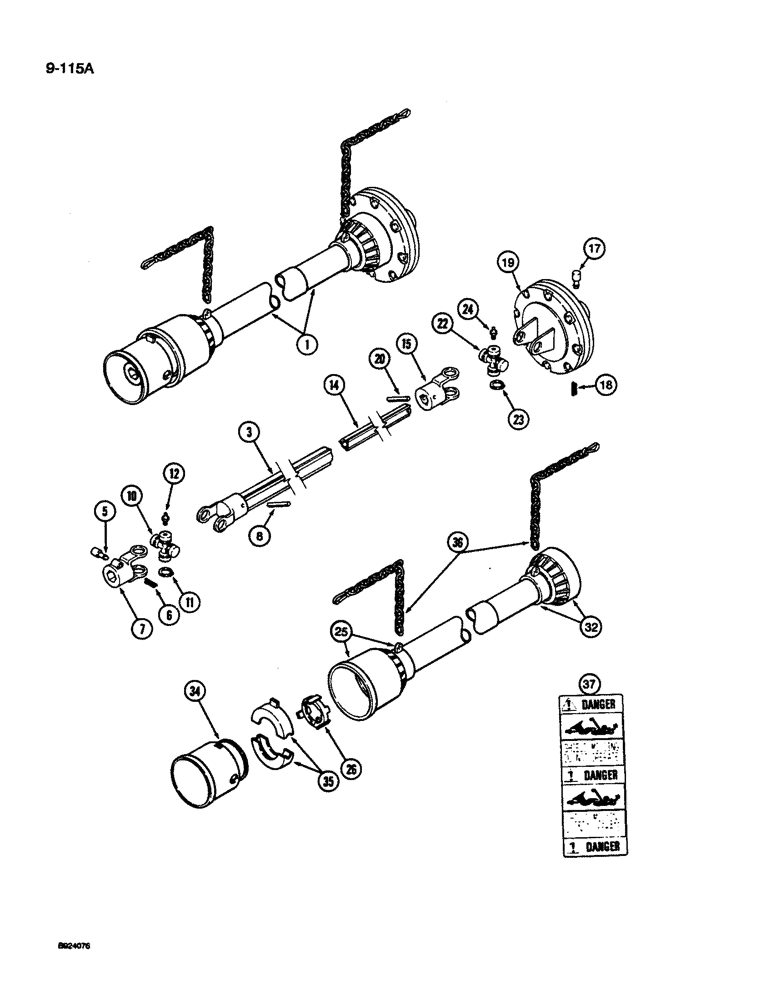

Запчасти Case IH 1010 (9-115A) - AUGER DRIVE SHAFT, AUGER DRIVE MOUNTED ON RIGHT-HAND SIDE OF HEADER, 15.0, 17.5, AND 20.0 FT HEADER (58) - ATTACHMENTS/HEADERS

1

106044A1

DRIVE SHAFT

ASSEMBLY - header (With decals)

1шт.

106108A1

SHAFT

- female drive (Includes Refs 3 through 12)

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - outer

1шт.

1330586C1

REPAIR KIT

KIT - cross and bearing

1шт.

1311950C1

KIT

- push pin

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - outer yoke

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - outer yoke

1шт.

7

1325022C1

YOKE

- outer

1шт.

8

Q2937

LOCK PIN,M8 x 55, Slotted

PIN, LOCK, M8 x 55, Slotted

1шт.

10

NSS

NOT SOLD SEPARAT

CROSS AND BEARING

2шт.

11

933916R1

SNAP RING,M24, Int

RING - internal retaining, 26 mm

4шт.

12

933756R1

LUBE NIPPLE,M6 x 1

FITTING - grease, straight, 6 x 1.00 mm

2шт.

106110A1

SHAFT

- male drive (Includes Refs 14 through 24)

1шт.

14

NSS

NOT SOLD SEPARAT

TUBE - inner

1шт.

15

NSS

NOT SOLD SEPARAT

YOKE - inner shaft

1шт.

1330586C1

REPAIR KIT

KIT - cross and bearing

1шт.

1311950C1

KIT

- push pin

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - clutch

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - clutch

1шт.

19

106089A1

CLUTCH

- torque limiter

1шт.

#19 IS COMPLETE UNIT ONLY - NO BREAKDOWN

1шт.

OF PARTS 09-MAY-96

1шт.

20

Q2935

LOCK PIN,M8 x 45, Slotted

PIN, LOCK, M8 x 45, Slotted

1шт.

22

NSS

NOT SOLD SEPARAT

CROSS AND BEARING

2шт.

23

933916R1

SNAP RING,M24, Int

RING - internal retaining 26 mm

4шт.

24

933756R1

LUBE NIPPLE,M6 x 1

FITTING - grease, straight, 6 x 1.00 mm

2шт.

25

106104A1

OUTER SHIELD

SHIELD ASSEMBLY - outer female shaft

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - shield

1шт.

32

106106A1

INNER SHIELD

SHIELD ASSEMBLY - inner male shaft

1шт.

34

1326625C91

SHIELD

ASSEMBLY - outer yoke

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING - shield

1шт.

36

1326632C1

CHAIN

- safety

2шт.

37

1326528C1

DECAL

- Danger, shield missing, also shown on Figure 9-146, item 19

1шт.
