(9-112) - AUGER AND KNIFE DRIVE SHAFT, 15.0, 17.5 AND 20.0 FOOT HEADER, WALTERSHEID

Запчасти Case IH 1010 (9-112) - AUGER AND KNIFE DRIVE SHAFT, 15.0, 17.5 AND 20.0 FOOT HEADER, WALTERSHEID (58) - ATTACHMENTS/HEADERS

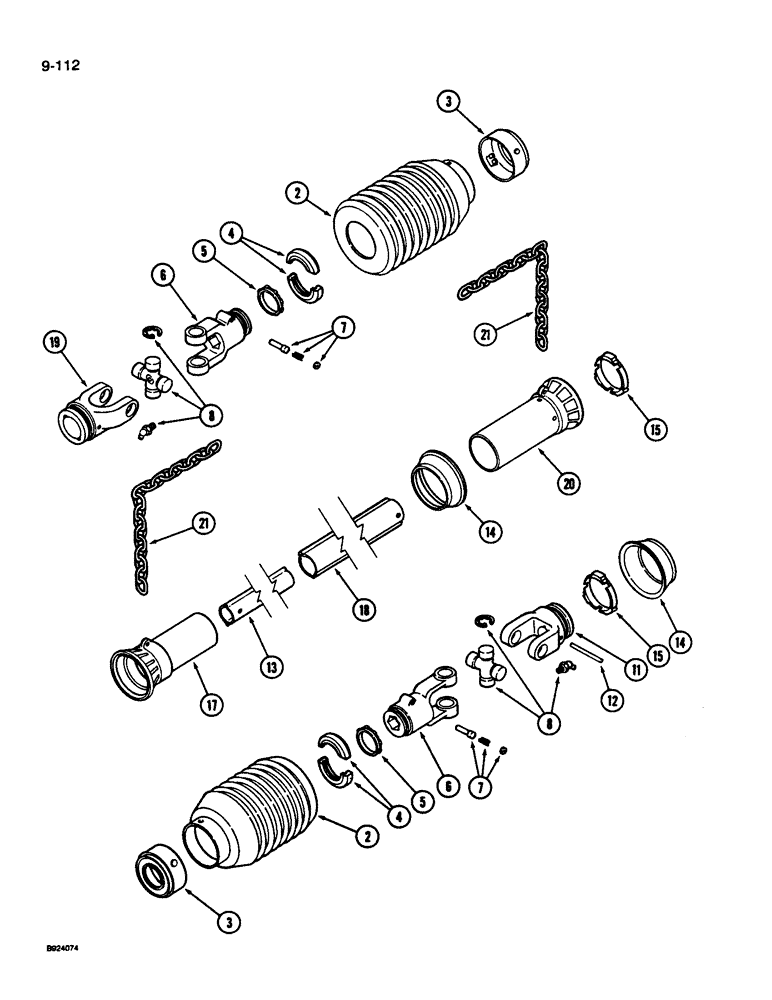

Схема запчастей Case IH 1010 - (9-112) - AUGER AND KNIFE DRIVE SHAFT, 15.0, 17.5 AND 20.0 FOOT HEADER, WALTERSHEID (58) - ATTACHMENTS/HEADERS
4
3
8
15
12
21
4
19
17
13
7
6
18
11
21
8
5
2
5
15
20
14
3
6
7
2
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1316216C91

SHAFT

DRIVE SHAFT - header

1шт.

2

1326494C1

SHIELD

- drive shaft

2шт.

3

1326500C1

COLLAR

- drive shaft

2шт.

4

1326498C1

RING

- outer

4шт.

5

1326499C1

WASHER

BEARING - ball

2шт.

6

1326490C1

YOKE

- drive shaft

2шт.

7

1281458C1

KIT

- pin

1шт.

8

1281444C1

KIT

BEARING AND CROSS ASSEMBLY - drive shaft

2шт.

11

1281445C1

YOKE

- end, male

1шт.

12

30907R1

LOCK PIN,M10 x 70, Slotted

PIN - spring, 10 x 70 mm

2шт.

13

1326501C1

TUBE,800 mm Length

- drive, inner

1шт.

14

1326495C1

SHIELD

FLANGE - guard

2шт.

15

1281450C1

RING

. bearing

2шт.

17

1326503C1

SHIELD

- outer

1шт.

18

1326502C1

TUBE

- drive, outer

1шт.

19

1326493C1

YOKE

- end, female

1шт.

20

1326504C1

TUBE

- shield, inner

1шт.

21

1281453C1

CHAIN (AG)

CHAIN - safety

1шт.
