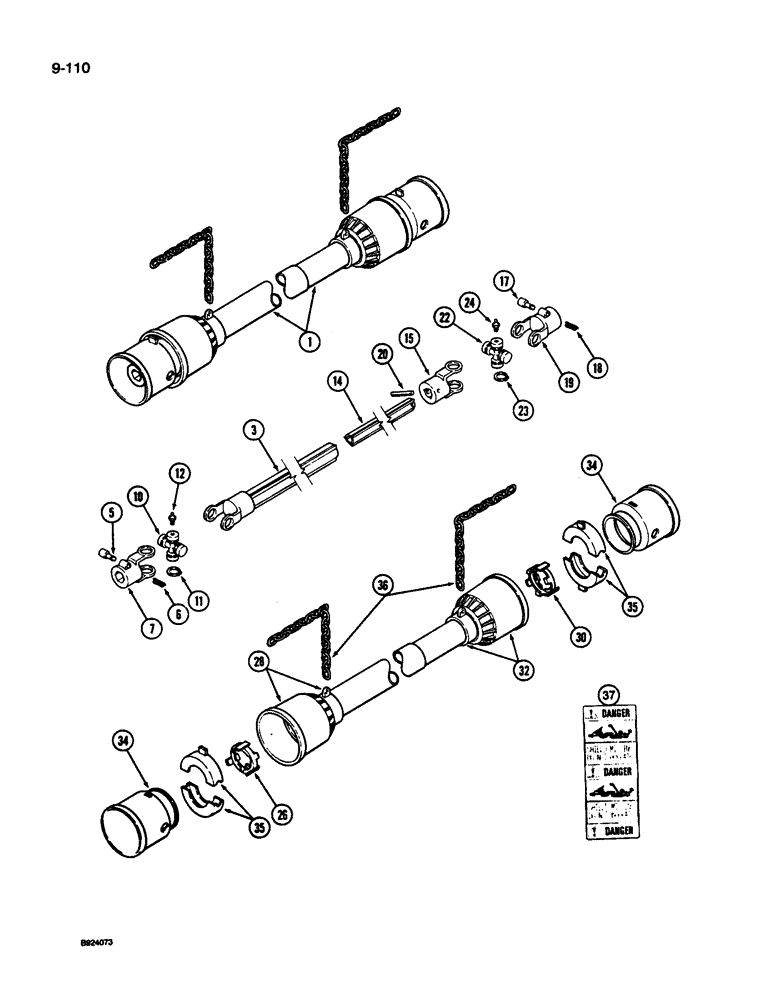

Запчасти Case IH 1010 (9-110) - AUGER AND KNIFE DRIVE SHAFT, 15.0, 17.5 AND 20.0 FOOT HEADER, BONDIOLI AND PAVESI (58) - ATTACHMENTS/HEADERS

1

1313569C92

DRIVE SHAFT

ASSEMBLY - header (With decals)

1шт.

1326658C92

DRIVE SHAFT

SHAFT - female drive (Includes Refs 3 through 12)

1шт.

3

1330586C1

REPAIR KIT

TUBE - outer

1шт.

Ref. 3 includes only Ref. 10, 11 and 12.

1шт.

1330586C1

REPAIR KIT

KIT - cross and bearing

1шт.

1311950C1

KIT

- push pin

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - outer yoke

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - outer yoke

1шт.

7

1325022C1

YOKE

- outer

1шт.

10

NSS

NOT SOLD SEPARAT

CROSS AND BEARING

2шт.

11

933916R1

SNAP RING,M24, Int

RING - internal retaining, 26 mm

4шт.

12

933756R1

LUBE NIPPLE,M6 x 1

FITTING - grease, straight, 6 x 1.00 mm

2шт.

1326623C92

DRIVE SHAFT

SHAFT - male drive (Includes Refs 14 through 24)

1шт.

14

NSS

NOT SOLD SEPARAT

TUBE - inner

1шт.

15

1545199C1

YOKE

- inner shaft

1шт.

1330586C1

REPAIR KIT

KIT - cross and bearing

1шт.

1311950C1

KIT

- push pin

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - outer yoke

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - outer yoke

1шт.

19

1305022C1

YOKE - outer

1шт.

20

Q2935

LOCK PIN,M8 x 45, Slotted

PIN, LOCK, M8 x 45, Slotted

1шт.

22

NSS

NOT SOLD SEPARAT

CROSS AND BEARING

2шт.

23

933916R1

SNAP RING,M24, Int

RING - internal retaining 26 mm

4шт.

24

933756R1

LUBE NIPPLE,M6 x 1

FITTING - grease, straight, 6 x 1.00 mm

2шт.

1326627C92

INNER SHIELD

SHIELD ASSEMBLY - outer female shaft

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - shield

1шт.

28

NSS

NOT SOLD SEPARAT

TUBE AND CONE ASSEMBLY

1шт.

1326630C92

OUTER SHIELD

SHIELD ASSEMBLY - inner male shaft

1шт.

30

NSS

NOT SOLD SEPARAT

BEARING - shield

1шт.

32

NSS

NOT SOLD SEPARAT

TUBE AND CONE ASSEMBLY

1шт.

1326625C91

SHIELD

ASSEMBLY - outer yoke

2шт.

34

NSS

NOT SOLD SEPARAT

CONE - end

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING - shield

2шт.

36

1326632C1

CHAIN

- safety

2шт.

37

1326528C1

DECAL

- Danger, shield missing, also shown on Figure 9-146, item 19

1шт.

38

1326752C1

DECAL

- instructions, drive shaft lubrication, not shown, see Figure 6-146, item 20 for decal

1шт.
