(1-08) - PICTORIAL INDEX, REEL DRIVE HYDRAULIC SYSTEM

Запчасти Case IH 1010 (1-08) - PICTORIAL INDEX, REEL DRIVE HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

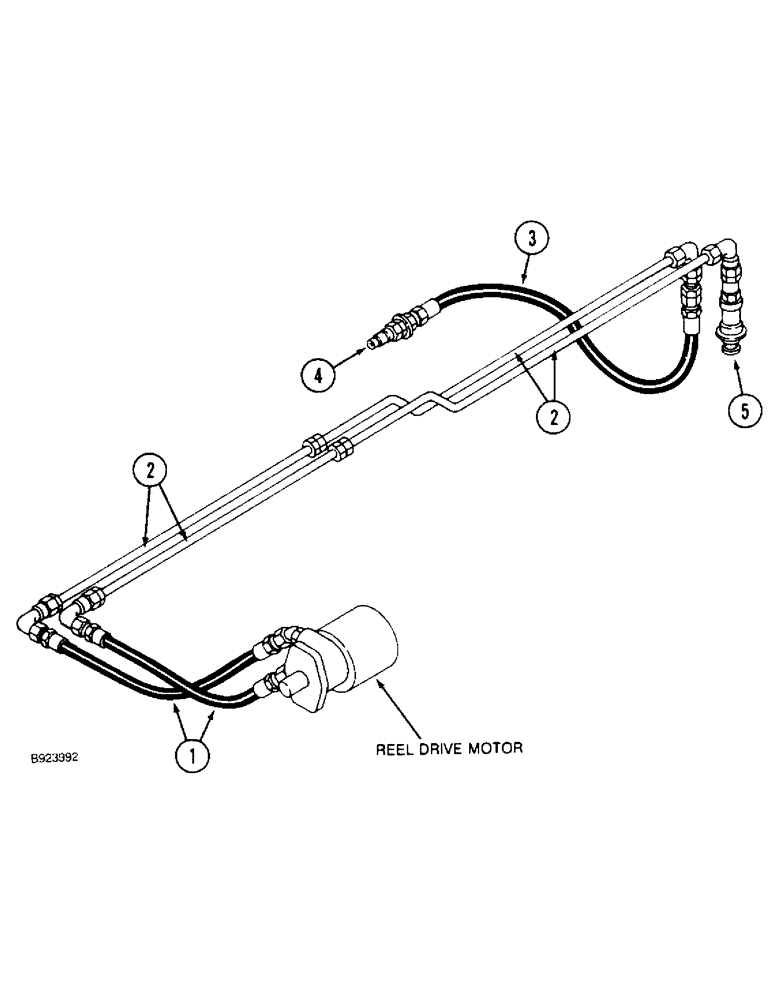

Схема запчастей Case IH 1010 - (1-08) - PICTORIAL INDEX, REEL DRIVE HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS
2
1
3
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Reel Drive Hose, Page 8-3

1шт.

2

Reel Drive Cross Tube, Page 8-3

1шт.

3

Reel Drive Pressure Hose, Page 8-3

1шт.

4

Male Self-Sealing Coupling, Page 8-3

1шт.

5

Female Self-Sealing Coupling, Page 8-3

1шт.
