Запчасти Case IH 1010 (09B-20[06]) - KNIFE ASSEMBLY KITS 3 INCH BOLTED COARSE SERRATIONS - 30.0 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

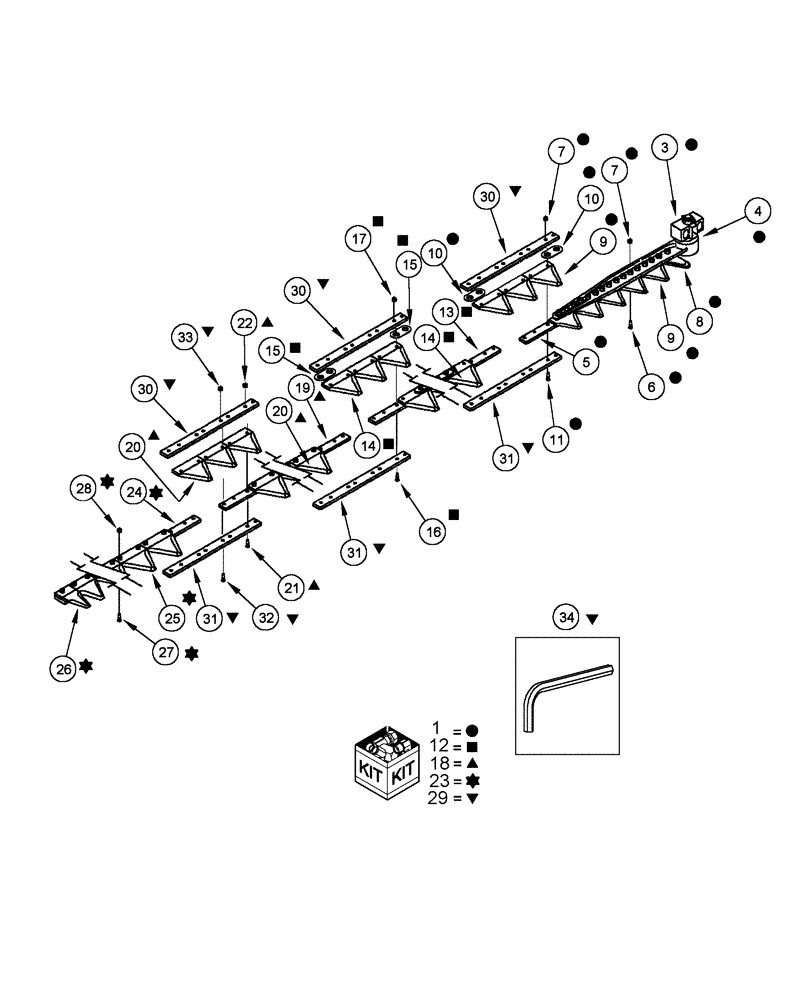

Схема запчастей Case IH 1010 - (09B-20[06]) - KNIFE ASSEMBLY KITS 3 INCH BOLTED COARSE SERRATIONS - 30.0 FOOT HEADER (09) - CHASSIS/ATTACHMENTS
30
12
12
7
27
4
32
18
30
31
16
33
12
21
1
14
23
29
29
13
5
17
1
30
18
20
24
1
18
12
23
12
9
12
22
12
1
26
18
1
23
14
29
15
23
9
18
31
15
1
19
25
10
8
3
29
1
6
23
29
1
1
29
29
12
20
34
10
29
11
23
7
31
29
18
1
29
1
1
1
28

Артикул

Название

Примечание

Количество

0

371622A1

KNIFE ASSY

30.0 foot modular

1шт.

Includes 2 - 34

1шт.

0

371622A2

KNIFE ASSY

30.0 foot modular

1шт.

Includes 2 - 34

1шт.

0

371622A3

KNIFE ASSY

30.0 foot modular

1шт.

Includes 2 - 34

1шт.

1

371642A1

HEAD

segment

1шт.

Includes 3 - 11

1шт.

1

371642A2

KNIFE ASSY

segment

1шт.

Includes 3 - 11

1шт.

1

371642A3

KNIFE ASSY

segment

1шт.

Includes 3 - 11

1шт.

3

1316161C94

KNIFE HEAD

HEAD, KNIFE

1шт.

Includes 4

1шт.

3

1316161C95

KNIFE HEAD

HEAD, KNIFE

1шт.

Includes 4

1шт.

4

1345491C2

DUST CAP

cover

1шт.

5

NSS

NOT SOLD SEPARAT

Bar, Knifeback

1шт.

6

1979166C1

BOLT

#12-24 x 1 1/8"

16шт.

7

1954816C1

LOCK NUT

hex lock, No. 12-24

66шт.

8

1316030C2

KNIFE SECTION

SECTION, KNIFE 3", plain half

1шт.

9

112074A1

KNIFE SECTION

SECTION, KNIFE overserrated, 3"

33шт.

10

321848A1

KNIFE CLIP

knife reinforcing, 3" knives

25шт.

11

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 x 5/8" slot bt hd

50шт.

12

371644A1

KNIFE ASSY

segment, center

1шт.

Includes 13 -17

1шт.

12

371644A2

KNIFE ASSY

segment, center

1шт.

Includes 13 -17

1шт.

13

NSS

NOT SOLD SEPARAT

Bar,Knifeback

1шт.

14

112074A1

KNIFE SECTION

SECTION, KNIFE overserrated, 3"

34шт.

15

321848A1

KNIFE CLIP

knife reinforcing, 3" knives

21шт.

16

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 x 5/8" slot bt hd

60шт.

17

1954816C1

LOCK NUT

hex lock, No. 12-24

60шт.

18

371643A1

KNIFE ASSY

segment, center

1шт.

Includes 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Bar, Knifeback

1шт.

20

112074A1

KNIFE SECTION

SECTION, KNIFE overserrated, 3"

34шт.

21

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 x 5/8" slot bt hd

60шт.

22

1954816C1

LOCK NUT

hex lock, No. 12-24

60шт.

23

371652A1

KNIFE ASSY

30.0 foot RH end segment

1шт.

Includes 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

Bar, Knifeback

1шт.

25

112074A1

KNIFE SECTION

SECTION, KNIFE overserrated, 3"

17шт.

26

148200C1

KNIFE SECTION

SECTION, KNIFE overserrated, double right-hand

1шт.

27

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 x 5/8" slot bt hd

35шт.

28

1954816C1

LOCK NUT

hex lock, No. 12-24

35шт.

29

371658A1

KIT

modular knife splice

3шт.

Includes 30 - 34

1шт.

30

371681A1

STRAP

modular knife top splice

1шт.

31

371668A1

STRAP

modular knife bottom splice

1шт.

32

227457A1

SCREW,#12 - 24 x 13/16", Gr 8

#12-24 x .13/16" CSK HSKT

10шт.

33

1954816C1

LOCK NUT

hex lock, No. 12-24

10шт.

34

NSS

NOT SOLD SEPARAT

Tool, Hex Socket

1шт.

Выбрано товаров: 53
