Запчасти Case IH 1010 (09B-20[01]) - KNIFE ASSEMBLY KITS 3 INCH BOLTED COARSE SERRATIONS - 15 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

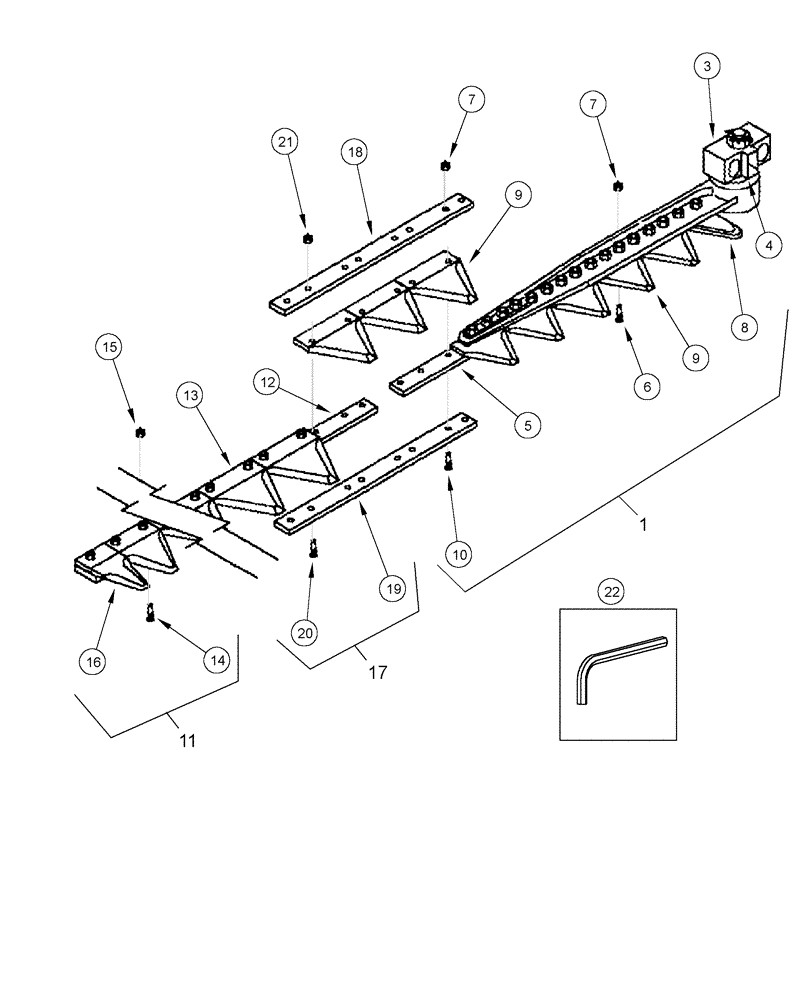

Схема запчастей Case IH 1010 - (09B-20[01]) - KNIFE ASSEMBLY KITS 3 INCH BOLTED COARSE SERRATIONS - 15 FOOT HEADER (09) - CHASSIS/ATTACHMENTS
3
21
17
9
15
9
22
5
10
14
12
4
20
13
7
8
18
6
11
16
1
7
19

Артикул

Название

Примечание

Количество

1

371613A1

KNIFE ASSY

15.0 foot modular

1шт.

Not Shown

1шт.

Includes 2 - 22

1шт.

1

371613A2

KNIFE ASSY

15.0 foot modular

1шт.

Not Shown

1шт.

Includes 2 - 22

1шт.

2

371638A1

HEAD

segment

1шт.

Not Shown

1шт.

Includes 3 - 10

1шт.

2

371638A2

KNIFE ASSY

head segment

1шт.

Not Shown

1шт.

Includes 3 - 10

1шт.

3

1316161C94

KNIFE HEAD

HEAD, KNIFE

1шт.

Includes 4

1шт.

3

1316161C95

KNIFE HEAD

HEAD, KNIFE

1шт.

Includes 4

1шт.

4

1345491C2

DUST CAP

cover

1шт.

5

NSS

NOT SOLD SEPARAT

Bar, Knifeback

1шт.

6

1979166C1

BOLT

#12-24 x 1 1/8"

16шт.

7

1954816C1

LOCK NUT

hex lock, No. 12-24

66шт.

8

1316030C2

KNIFE SECTION

SECTION, KNIFE 3", plain half

1шт.

9

112074A1

KNIFE SECTION

SECTION, KNIFE overserrated, 3"

33шт.

10

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 x 5/8" slot bt hd

50шт.

11

371645A1

KNIFE ASSY

15.0 foot RH end segment

1шт.

Not Shown

1шт.

Includes 12 -16

1шт.

12

NSS

NOT SOLD SEPARAT

Bar,Knifeback

1шт.

13

112074A1

KNIFE SECTION

SECTION, KNIFE overserrated, 3"

25шт.

14

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 x 5/8" slot bt hd

51шт.

15

1954816C1

LOCK NUT

hex lock, No. 12-24

51шт.

16

148200C1

KNIFE SECTION

SECTION, KNIFE overserrated, double right-hand

1шт.

17

371658A1

KIT

modular knife splice

1шт.

Not Shown

1шт.

Includes 18 - 22

1шт.

18

371681A1

STRAP

modular knife top splice

1шт.

19

371668A1

STRAP

modular knife bottom splice

1шт.

20

227457A1

SCREW,#12 - 24 x 13/16", Gr 8

#12-24 x .13/16" CSK HSKT

10шт.

21

1954816C1

LOCK NUT

hex lock, No. 12-24

10шт.

22

NSS

NOT SOLD SEPARAT

Tool, Hex Socket

1шт.

Выбрано товаров: 39
