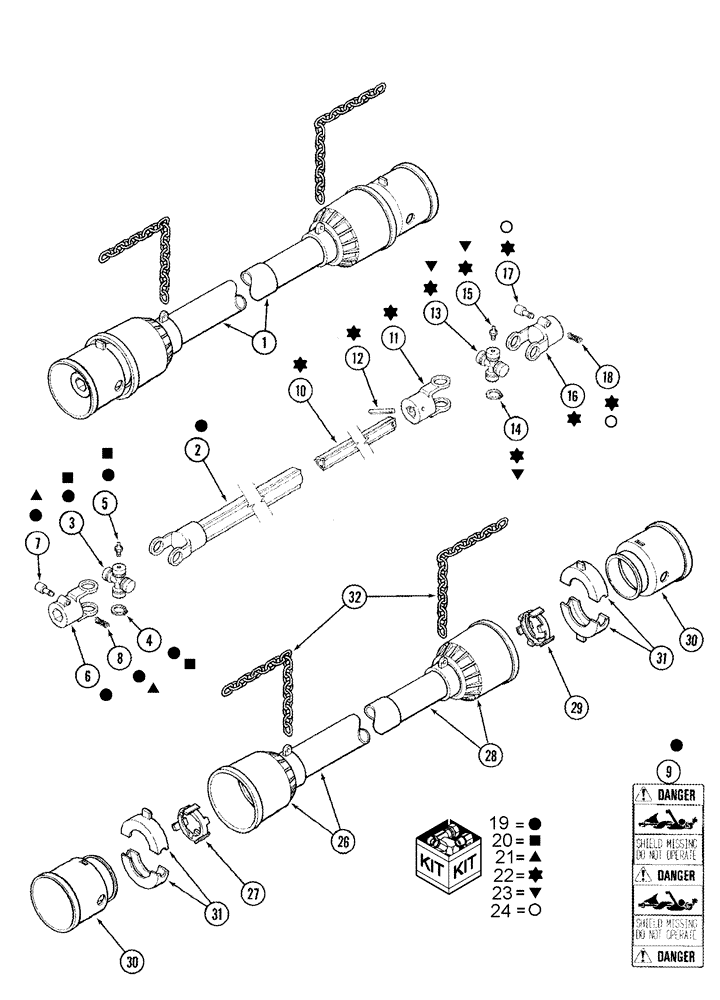

Запчасти Case IH 1010 (09B-15) - KNIFE DRIVE SHAFT BONDIOLI AND PAVESI - 15.0, 17.5 AND 20.0 FOOT HEADERS BSN JJC304189 (09) - CHASSIS/ATTACHMENTS

1

1313569C92

DRIVE SHAFT

auger (With decals)

1шт.

Includes 2 - 32

1шт.

2

NSS

NOT SOLD SEPARAT

Tube Assy

1шт.

3

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

4

278643

SNAP RING,M24, Int

4шт.

5

933756R1

LUBE NIPPLE,M6 x 1

2шт.

6

NSS

NOT SOLD SEPARAT

Yoke

1шт.

7

NSS

NOT SOLD SEPARAT

Pin

1шт.

8

NSS

NOT SOLD SEPARAT

Spring

1шт.

9

1326528C1

DECAL

Danger, shield missing, do not operate

1шт.

10

NSS

NOT SOLD SEPARAT

Tube

1шт.

11

NSS

NOT SOLD SEPARAT

Yoke

1шт.

12

838-5845

LOCK PIN,M8 x 45, Slotted

1шт.

13

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

14

278643

SNAP RING,M24, Int

4шт.

15

933756R1

LUBE NIPPLE,M6 x 1

2шт.

16

NSS

NOT SOLD SEPARAT

Yoke

1шт.

17

NSS

NOT SOLD SEPARAT

Pin

1шт.

18

NSS

NOT SOLD SEPARAT

Spring

1шт.

19

1326658C92

DRIVE SHAFT

female

1шт.

Includes 2 - 9

1шт.

20

1330586C1

REPAIR KIT

cross and bearing

1шт.

Includes 3 - 5

1шт.

21

782083

LOCK PIN

And Spring

1шт.

Includes 7, 8

1шт.

22

1326623C92

DRIVE SHAFT

male

1шт.

Includes 10 - 18

1шт.

23

1330586C1

REPAIR KIT

cross and bearing

1шт.

Includes 13 - 15

1шт.

24

782083

LOCK PIN

And Spring

1шт.

Includes 17, 18

1шт.

26

1326627C92

INNER SHIELD

outer female

1шт.

Includes 27

1шт.

27

NSS

NOT SOLD SEPARAT

Bearing, Support

1шт.

28

1326630C92

OUTER SHIELD

inner male

1шт.

Includes 29

1шт.

29

NSS

NOT SOLD SEPARAT

Bearing, Support

1шт.

30

1326625C91

SHIELD

outer yoke

2шт.

Includes 31

1шт.

31

NSS

NOT SOLD SEPARAT

Collar

1шт.

32

1326632C1

CHAIN

safety

2шт.
