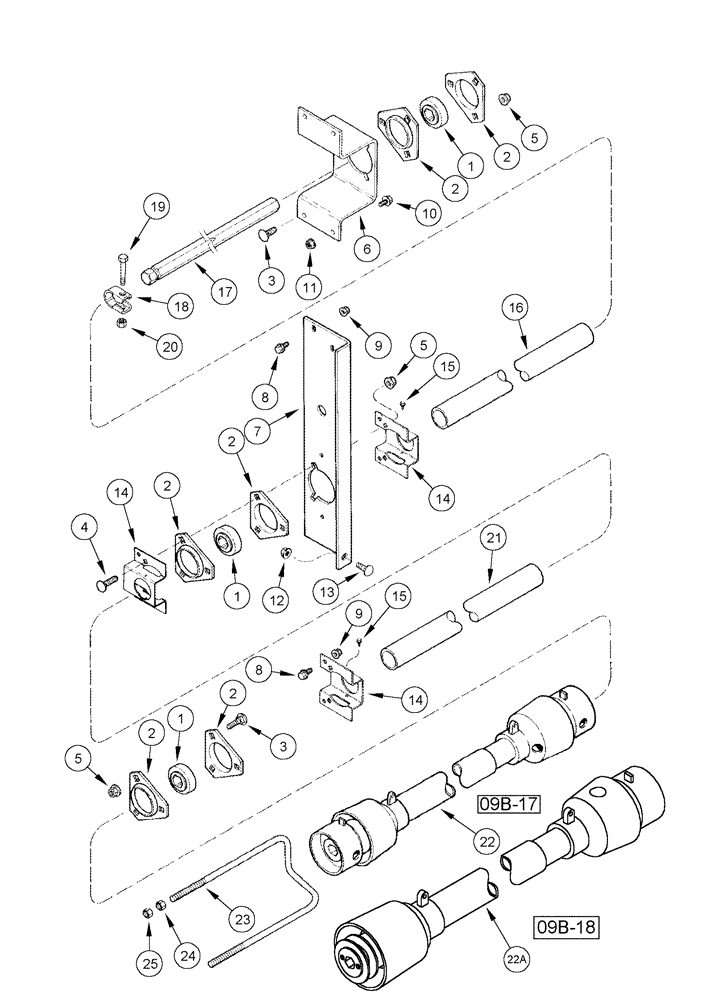

Запчасти Case IH 1010 (09B-14) - KNIFE JACKSHAFT DRIVE - 30.0 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

1

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

3шт.

2

180955C1

FLANGED BEARING,0.375"

bearing, Serial Range: -JJC0308544

6шт.

3

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

4

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

3шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

9шт.

6

138654A1

SUPPORT

knife drive, Serial Range: -JJC0308544

1шт.

7

1307339C2

SUPPORT

jackshaft, Serial Range: -JJC0308544

1шт.

8

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

5шт.

9

145458

SERRATED NUT,5/16"-18 GR 5 ZND

5шт.

10

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

3шт.

11

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

12

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

13

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

14

125992A1

SUPPORT

jackshaft, Serial Range: -JJC0308544

3шт.

15

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

2шт.

16

125985A1

TUBE,48.26 mm OD, 978 mm Length

jackshaft 25 and 30 foot

1шт.

17

125974A2

JACKSHAFT

30.0 foot

1шт.

18

225265R1

CLAMP

auger bed gear, Serial Range: -JJC0308544

1шт.

20

86992215

LOCK NUT,1/2"-13, GC

1шт.

20

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

21

125988A1

TUBE,48.26 mm OD, 789 mm Length

jackshaft 20.0 foot

1шт.

22

1313570C92

DRIVE SHAFT

auger (With decals), Serial Range: -JJC0304999

1шт.

See Figure 09B-17

1шт.

22a

1313570C94

DRIVE SHAFT

PTO, knife, Serial Range: JJC0305000-JJC0308544

1шт.

See Figure 09B-18

1шт.

23

138005A1

HANGER

drive line

1шт.

24

280431

NUT,1/2"-13, G5

2шт.

25

86992215

LOCK NUT,1/2"-13, GC

2шт.
