Запчасти Case IH 1010 (09B-13) - KNIFE JACKSHAFT DRIVE - 22.5 AND 25.0 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS

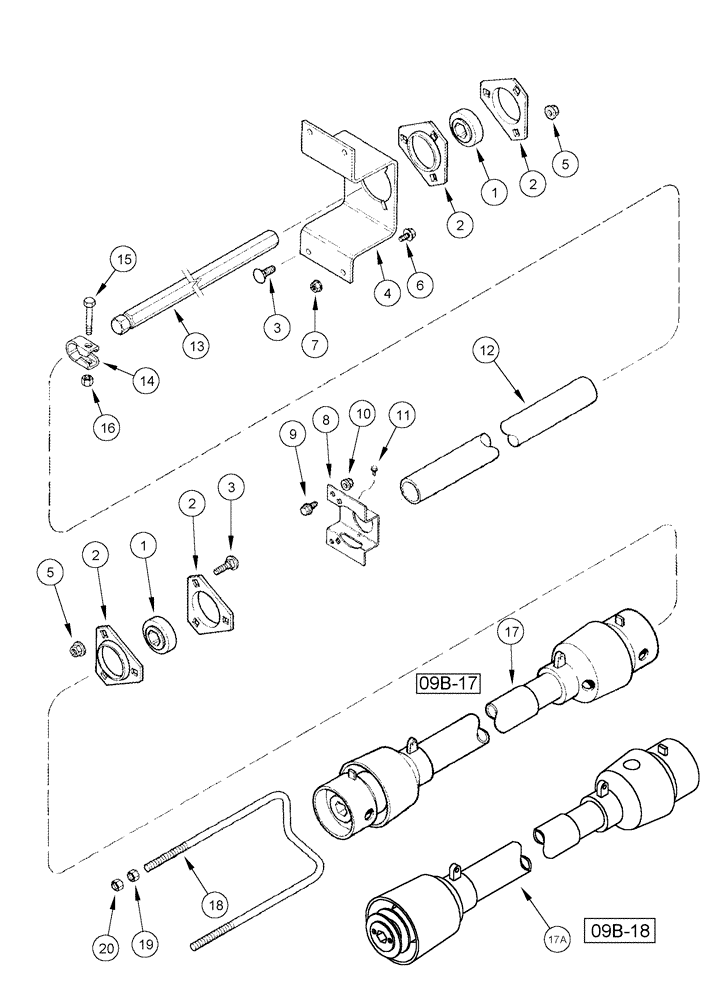

Схема запчастей Case IH 1010 - (09B-13) - KNIFE JACKSHAFT DRIVE - 22.5 AND 25.0 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS
16
17
6
09b-17
09b-18
7
3
13
17a
12
11
2
5
10
19
20
4
18
2
3
9
15
2
1
8
1
2
14
5

Артикул

Название

Примечание

Количество

1

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

2шт.

2

180955C1

FLANGED BEARING,0.375"

bearing, Serial Range: -JJC0308544

4шт.

3

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

4

138654A1

SUPPORT

knife drive, Serial Range: -JJC0308544

1шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

6

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

3шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

8

125992A1

SUPPORT

jackshaft, Serial Range: -JJC0308544

1шт.

9

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

11

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

1шт.

12

125989A1

TUBE,48.26 mm OD, 729 mm Length

jackshaft 30.0 foot

1шт.

12

178164A1

TUBE,48.26 mm OD

jackshaft shield, 25.0 foot LH

1шт.

13

125972A2

JACKSHAFT

22.5 foot

1шт.

13

125973A2

JACKSHAFT

25.0 foot

1шт.

14

225265R1

CLAMP

auger bed gear, Serial Range: -JJC0308544

1шт.

15

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

16

86992215

LOCK NUT,1/2"-13, GC

1шт.

17

1313570C92

DRIVE SHAFT

auger (With decals), Serial Range: -JJC0304999

1шт.

See Figure 09B-17

1шт.

17a

1313570C94

DRIVE SHAFT

PTO, knife, Serial Range: JJC0305000-JJC0308544

1шт.

See Figure 09B-18

1шт.

18

138005A1

HANGER

drive line

1шт.

19

280431

NUT,1/2"-13, G5

2шт.

20

86992215

LOCK NUT,1/2"-13, GC

2шт.

Выбрано товаров: 25
