Запчасти Case IH 1010 (09B-12) - KNIFE JACKSHAFT DRIVE - 17.5 AND 20.0 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS

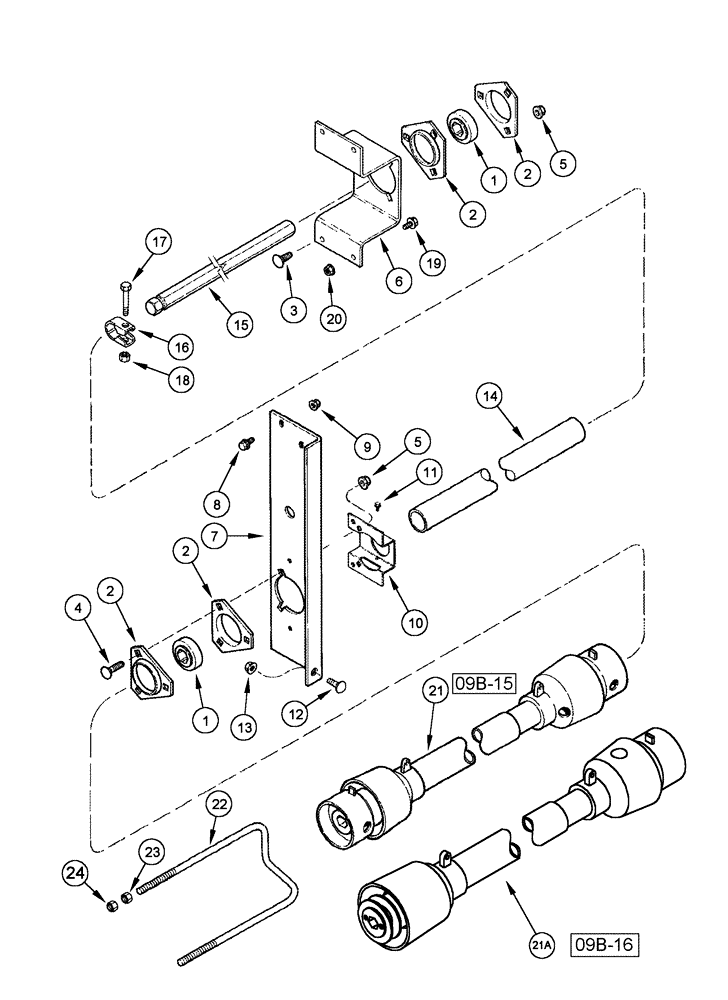

Схема запчастей Case IH 1010 - (09B-12) - KNIFE JACKSHAFT DRIVE - 17.5 AND 20.0 FOOT HEADERS (09) - CHASSIS/ATTACHMENTS
5
3
1
10
23
16
14
7
21
2
6
22
19
13
12
11
2
9
17
2
20
1
8
18
15
2
21a
09b-15
4
09b-16
24
5

Артикул

Название

Примечание

Количество

1

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

2шт.

2

180955C1

FLANGED BEARING,0.375"

bearing, Serial Range: -JJC0308544

4шт.

3

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

4

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

3шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

6

138654A1

SUPPORT

knife drive, Serial Range: -JJC0308544

1шт.

7

1307339C2

SUPPORT

jackshaft, Serial Range: -JJC0308544

1шт.

8

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

9

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

10

125992A1

SUPPORT

jackshaft, Serial Range: -JJC0308544

1шт.

11

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

1шт.

12

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

13

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

14

125982A1

TUBE,48.26 mm OD, 448 mm Length

jackshaft 17.5 foot

1шт.

14

125983A1

TUBE,48.26 mm OD, 829 mm Length

jackshaft 20.0 foot

1шт.

15

125970A2

JACKSHAFT

17.5 foot

1шт.

15

125971A2

JACKSHAFT

20.0 foot

1шт.

16

225265R1

CLAMP

auger bed gear, Serial Range: -JJC0308544

1шт.

17

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

18

86992215

LOCK NUT,1/2"-13, GC

1шт.

19

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

3шт.

20

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

21

1313569C92

DRIVE SHAFT

auger (With decals), Serial Range: -JJC0304999

1шт.

See Figure 09B-15

1шт.

21a

1313569C94

DRIVE SHAFT

PTO knife, Start Serial: JJC0305000

1шт.

See Figure 09B-16

1шт.

22

138005A1

HANGER

drive line

1шт.

23

280431

NUT,1/2"-13, G5

2шт.

24

86992215

LOCK NUT,1/2"-13, GC

2шт.

Выбрано товаров: 29
