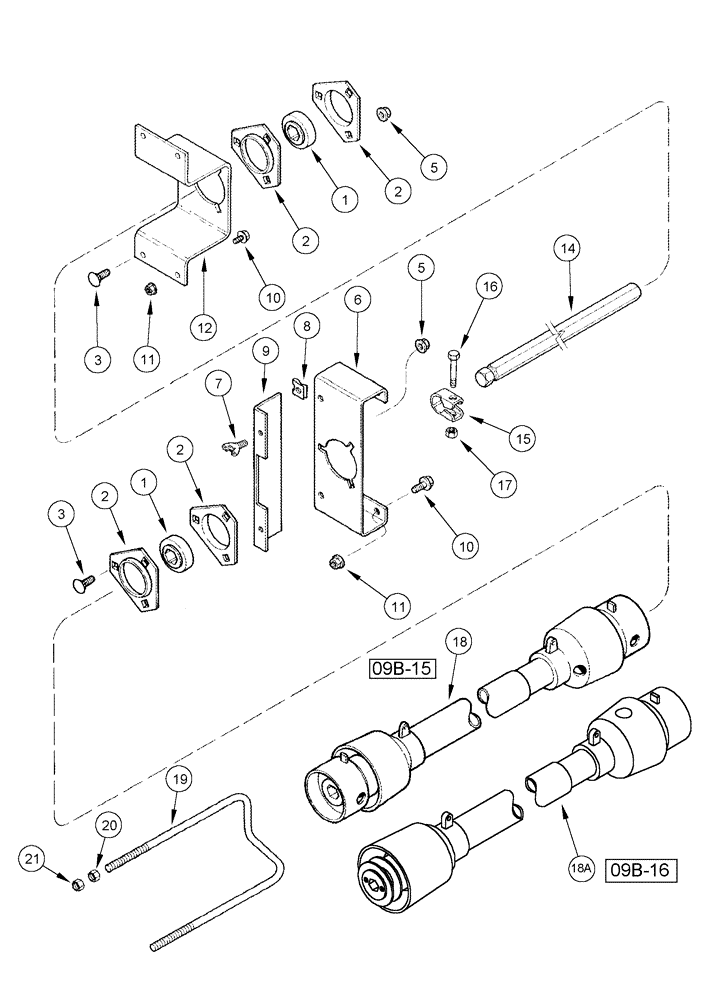

Запчасти Case IH 1010 (09B-11) - KNIFE JACKSHAFT DRIVE - 15 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

1

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

2шт.

2

180955C1

FLANGED BEARING,0.375"

bearing, Serial Range: -JJC0308544

4шт.

3

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

6

1320892C1

SUPPORT

jackshaft 15.0 foot

1шт.

7

183-123

THUMB SCREW

thumb with shoulder, 5/16 NC x 3/4 inch

2шт.

8

488837C1

SPRING NUT

5/16" speed

2шт.

9

1326597C1

SHIELD

clutch 15.0 and 16.5 foot

1шт.

10

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

5шт.

10

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

1шт.

11

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

12

138654A1

SUPPORT

knife drive, Serial Range: -JJC0308544

1шт.

14

125969A2

JACKSHAFT

15.0 and 16.5 foot

1шт.

15

225265R1

CLAMP

auger bed gear, Serial Range: -JJC0308544

1шт.

16

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

17

86992215

LOCK NUT,1/2"-13, GC

1шт.

18

1313569C92

DRIVE SHAFT

auger (With decals), Serial Range: -JJC0304999

1шт.

See Figure 09B-15

1шт.

18a

1313569C94

DRIVE SHAFT

PTO knife, Start Serial: JJC0305000

1шт.

See Figure 09B-16

1шт.

19

138005A1

HANGER

drive line

1шт.

20

280431

NUT,1/2"-13, G5

2шт.

21

86992215

LOCK NUT,1/2"-13, GC

2шт.
