Запчасти Case IH 1010 (09B-09A) - KNIFE DRIVE BOX ASSEMBLY - ASN JJC0305090 (09) - CHASSIS/ATTACHMENTS

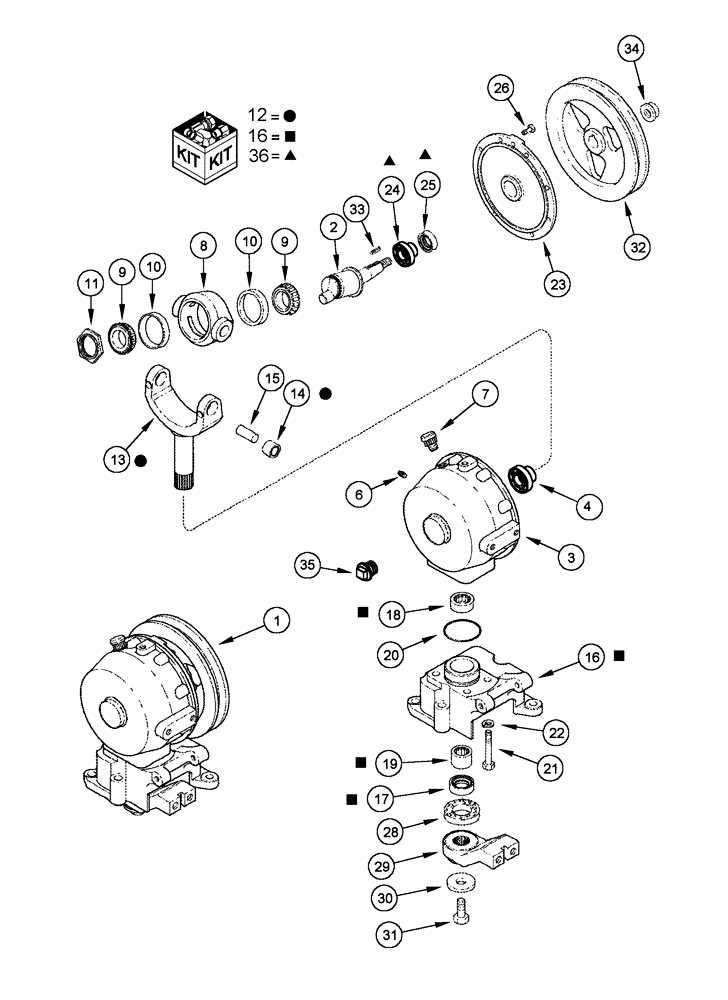

Схема запчастей Case IH 1010 - (09B-09A) - KNIFE DRIVE BOX ASSEMBLY - ASN JJC0305090 (09) - CHASSIS/ATTACHMENTS
7
16
13
36
23
34
16
3
1
17
25
12
16
19
11
21
16
16
35
9
20
10
14
26
15
31
12
10
16
12
2
9
28
30
36
33
32
29
4
36
18
22
6
24
8

Артикул

Название

Примечание

Количество

1

398290A1

WOBBLE BOX

knife drive

1шт.

Rework of Left Hand Endsheet MAY Be Required on BSN JJC 0305090

1шт.

Includes 2 - 35

1шт.

1

87502685R

REMAN-WOBBLE BOX

Remanufactured, Wobble Box

1шт.

1

87502685C

CORE-WOBBLE BOX

Return Number, Wobble Box

1шт.

1

398290A2

WOBBLE BOX

knife drive

1шт.

Includes 2 - 35

1шт.

1

87502685R

REMAN-WOBBLE BOX

Remanufactured, Wobble Box

1шт.

1

87502685C

CORE-WOBBLE BOX

Return Number, Wobble Box

1шт.

2

394674A1

SHAFT

wobble

1шт.

3

398816A1

HOUSING

wobble box

1шт.

Includes 4, 5

1шт.

4

394681A1

BEARING, ROLLER, CYL,22.19mm ID x 50mm OD x 17mm W

50 mm #75960

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

6

217-407

PLUG,Hex Hd, 3/8" - 18 NPT

1шт.

7

87283549

BREATHER

3/8"-18 NPT, Short, w/washer

1шт.

8

394679A1

TRUNNION

wobble box

1шт.

8

394679A2

TRUNNION

knife drive box

1шт.

9

287902

ROLLER BEARING,50.8mm ID x 22.23mm W

LM104949

2шт.

10

287066

BEARING CUP,82.58mm OD x 16.51mm W

LM104911

2шт.

11

133466A1

BEARING LOCK NUT

bearing lock, special

1шт.

12

130822A3

YOKE

wobble box

1шт.

Includes 13, 14

1шт.

13

394672A1

YOKE,3/4" - 10

knife box

1шт.

14

709063

BUSHING,25.43mm ID x 28.73mm OD x 9.53mm L

bronze 1.13" OD 1.0" ID

2шт.

15

394613A2

STUD,25.41mm OD x 53.3mm L

trunnion knife drive box

2шт.

16

128962A1

SUPPORT

wobble box

1шт.

Includes 17, 18, 19

1шт.

17

101295C1

OIL SEAL

oil

1шт.

18

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

B-2610

1шт.

19

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

B-2620

1шт.

20

86977781

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

21

136322C1

LOCK BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

hex dry lock, special, 5/8 NC x 2 1/4", G8

4шт.

22

12034871

WASHER

5/8"

4шт.

23

394678A1

COVER

knife drive box

1шт.

24

394680A1

BEARING, ROLLER, CYL,28.54mm ID x 60mm OD x 19mm W

60 mm #75959

1шт.

25

62527C1

OIL SEAL,25.4mm ID x 41.35mm OD x 6.5mm Thk

oil

1шт.

26

117045C1

LOCK BOLT

3/8-16 x 1" G5 Dry-Loc

8шт.

28

116955C1

GASKET,41.27mm ID x 76.2mm OD x 14.22mm Thk

1 5/8" x 3" x 9/16"

1шт.

29

126314A2

ARM

knife crank with counterweight

1шт.

30

116954C1

WASHER

flat, special, 5/32" x 2 13/32" x 5/16"

1шт.

31

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

32

138775A1

PULLEY

driven, knife

1шт.

33

Q53

KEY,1/4" Sq x 1", Par

1шт.

34

414089C1

FLANGE NUT,5/8" - 18

1шт.

35

50057K

PLUG

separator housing

1шт.

36

130821A2

COVER

wobble box

1шт.

Includes 23, 24, 25

1шт.

Выбрано товаров: 48
