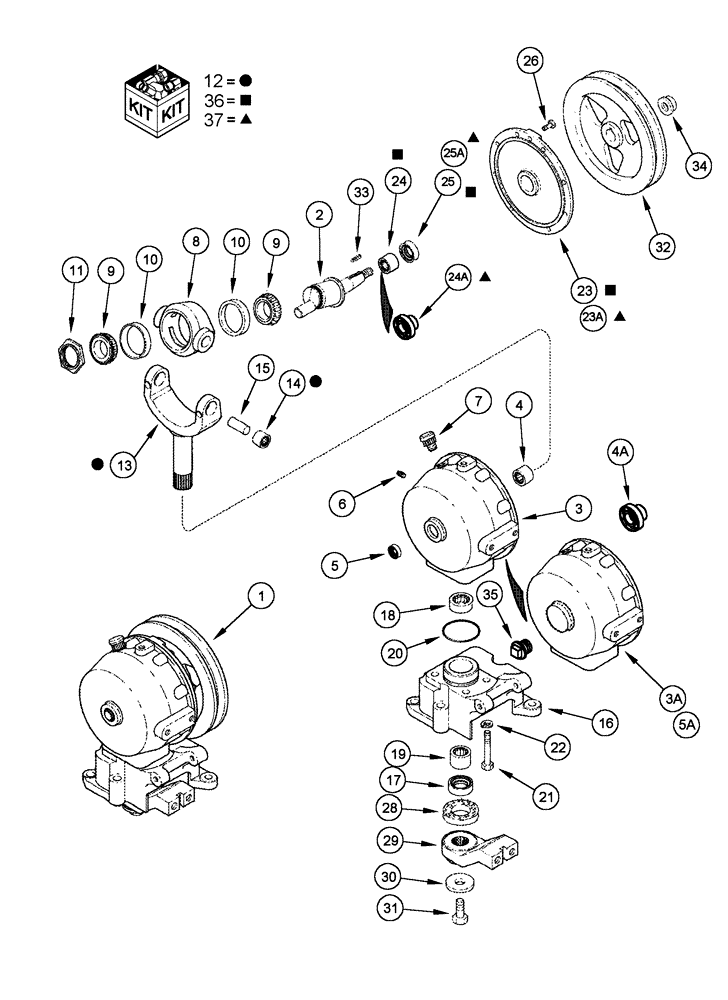

Запчасти Case IH 1010 (09B-09) - KNIFE DRIVE BOX ASSEMBLY - BSN JJC0305089 (09) - CHASSIS/ATTACHMENTS

1

133157A3

WOBBLE BOX

knife drive

1шт.

Rework of Left Hand Endsheet NOT Required

1шт.

Includes 2 - 35

1шт.

2

182581A1

SHAFT

wobble

1шт.

3

130820A2

HOUSING

knife box, No Longer Available, Order 398816A1

1шт.

3a

398816A1

HOUSING

wobble box

1шт.

Includes 4A, 5A

1шт.

4

140436A1

NEEDLE BEARING,Needle, 22.23mm ID x 34.92mm OD x 25.4mm W

wobble shaft inner, Used With 130820A2 Housing

1шт.

4a

394681A1

BEARING, ROLLER, CYL,22.19mm ID x 50mm OD x 17mm W

50 mm #75960

1шт.

5

544667R91

SEAL,22.23mm ID x 31.85mm OD x 4.78mm Thk

Used With 130820A2 Housing

1шт.

5a

NSS

NOT SOLD SEPARAT

Housing

1шт.

6

217-407

PLUG,Hex Hd, 3/8" - 18 NPT

1шт.

7

87283549

BREATHER

3/8"-18 NPT, Short, w/washer

1шт.

8

62520C2

TRUNNION

1шт.

9

287902

ROLLER BEARING,50.8mm ID x 22.23mm W

LM104949

2шт.

10

287066

BEARING CUP,82.58mm OD x 16.51mm W

LM104911

2шт.

11

133466A1

BEARING LOCK NUT

bearing lock, special

1шт.

12

130822A2

YOKE

trunnion, wobble shaft

1шт.

Includes 13, 14

1шт.

13

182580A1

YOKE

trunnion, wobble shaft

1шт.

14

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

2шт.

15

394613A2

STUD,25.41mm OD x 53.3mm L

trunnion knife drive box

2шт.

16

128962A1

SUPPORT

wobble box

1шт.

Includes 17, 18, 19

1шт.

17

101295C1

OIL SEAL

oil

1шт.

18

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

B-2610

1шт.

19

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

B-2620

1шт.

20

86977781

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

21

136322C1

LOCK BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

hex dry lock, special, 5/8 NC x 2 1/4", G8

4шт.

22

12034871

WASHER

5/8"

4шт.

23

62526C1

COVER

1шт.

24

F60368

NEEDLE BEARING

auger

1шт.

25

62527C1

OIL SEAL,25.4mm ID x 41.35mm OD x 6.5mm Thk

oil

1шт.

23a

394678A1

COVER

knife drive box

1шт.

24a

394680A1

BEARING, ROLLER, CYL,28.54mm ID x 60mm OD x 19mm W

60 mm #75959

1шт.

25a

62527C1

OIL SEAL,25.4mm ID x 41.35mm OD x 6.5mm Thk

oil

1шт.

26

117045C1

LOCK BOLT

3/8-16 x 1" G5 Dry-Loc

8шт.

28

116955C1

GASKET,41.27mm ID x 76.2mm OD x 14.22mm Thk

1 5/8" x 3" x 9/16"

1шт.

29

126314A2

ARM

knife crank with counterweight

1шт.

30

116954C1

WASHER

flat, special, 5/32" x 2 13/32" x 5/16"

1шт.

31

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

32

138775A1

PULLEY

driven, knife

1шт.

33

Q53

KEY,1/4" Sq x 1", Par

1шт.

34

414089C1

FLANGE NUT,5/8" - 18

1шт.

35

50057K

PLUG

separator housing

1шт.

36

130821A1

COVER

wobble box, No Longer Available, Replaced With 130821A2 Below

1шт.

Includes 23, 24, 25

1шт.

37

130821A2

COVER

wobble box

1шт.

Includes 23A, 24A, 25A

1шт.
