Запчасти Case IH 1010 (09B-07) - KNIFE ASSEMBLY 3 INCH BOLTED FINE SERRATIONS - BSN JJC0302299 (09) - CHASSIS/ATTACHMENTS

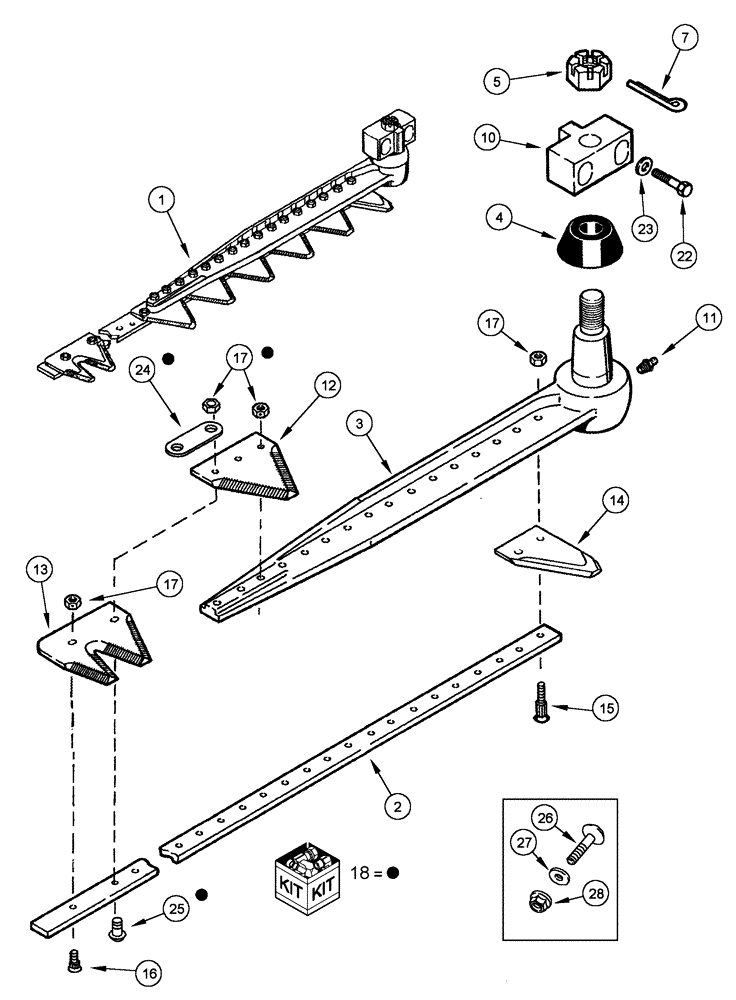

Схема запчастей Case IH 1010 - (09B-07) - KNIFE ASSEMBLY 3 INCH BOLTED FINE SERRATIONS - BSN JJC0302299 (09) - CHASSIS/ATTACHMENTS
4
3
18
17
16
14
12
11
27
25
18
17
24
7
10
13
2
15
5
28
26
22
1
18
17
18
23

Артикул

Название

Примечание

Количество

1

230600A2

KNIFE ASSY

3" fine, bolted, 15.0 foot

1шт.

Includes 2 - 17

1шт.

1

230601A2

KNIFE ASSY

3" fine, bolted, 17.5 foot

1шт.

Includes 2 - 17

1шт.

1

230602A2

KNIFE ASSY

3" fine, bolted, 20.0 foot

1шт.

Includes 2 - 17

1шт.

1

230603A2

KNIFE ASSY

3" fine, bolted, 22.5 foot

1шт.

Includes 2 - 17

1шт.

1

230604A3

KNIFE ASSY

3" fine, bolted, 25.0 foot

1шт.

Includes 2 - 17

1шт.

1

226433A3

KNIFE ASSY

3" fine, bolted, 30.0 foot

1шт.

Includes 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

Bar

1шт.

3

1316161C94

KNIFE HEAD

HEAD, KNIFE

1шт.

Includes 4

1шт.

3

1316161C95

KNIFE HEAD

HEAD, KNIFE

1шт.

Includes 4

1шт.

4

1345491C2

DUST CAP

cover

1шт.

5

86637930

SLOTTED NUT,5/8"-18, G5

1шт.

7

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

10

1313797C1

BLOCK

knife head

1шт.

10

1313797C2

BLOCK

knife head

1шт.

11

87414

LUBE NIPPLE,1/4" - 28

1шт.

12

826720C3

KNIFE SECTION

SECTION, KNIFE 3" fine overserrated

1шт.

12

596321R4

KNIFE SECTION

SECTION, KNIFE overserrated, Chrome, If Used

1шт.

13

324070A1

KNIFE SECTION

SECTION, KNIFE RH end

1шт.

14

1316030C2

KNIFE SECTION

SECTION, KNIFE 3", plain half

1шт.

15

1979166C1

BOLT

#12-24 x 1 1/8"

16шт.

16

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 x 5/8" slot bt hd

1шт.

17

1954816C1

LOCK NUT

hex lock, No. 12-24

1шт.

18

321849A1

KIT

reinforcing strap for 3" knives

1шт.

Includes 17, 24, 25

1шт.

18

321849A2

KIT

reinforcing strap for 3" knives

1шт.

Includes 17, 24, 25

1шт.

22

280355

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

1шт.

23

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

24

321848A1

KNIFE CLIP

knife reinforcing, 3" knives

50шт.

25

87423458

BOLT,Truss HD, #12 - 24 x 0.7", Gr 8

#12-24 NC x .70" knurled neck

100шт.

26

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

For bolting extra knife to header

1шт.

27

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

For bolting extra knife to header

1шт.

28

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

For bolting extra knife to header

1шт.

Выбрано товаров: 44
