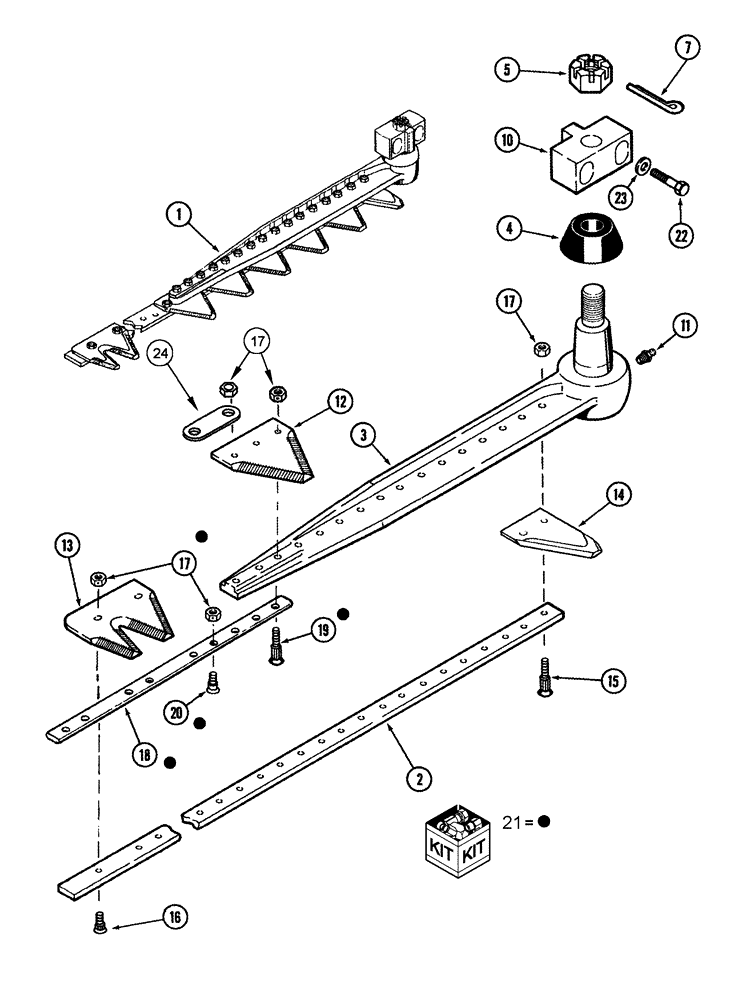

Запчасти Case IH 1010 (09B-06) - KNIFE ASSEMBLY 3 INCH BOLTED FINE SERRATIONS BSN JJC0302299 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
230600A2
KNIFE ASSY
3" fine, bolted, 15.0 foot
1шт.
Includes 2 - 17
1шт.
1
451824A1
KNIFE ASSY
3" fine, 15.0 foot
1шт.
Includes 2 - 17
1шт.
1
451824A2
KNIFE ASSY
3" fine, 15.0 foot
1шт.
Includes 2 - 17
1шт.
1
230601A2
KNIFE ASSY
3" fine, bolted, 17.5 foot
1шт.
Includes 2 - 17
1шт.
1
230602A2
KNIFE ASSY
3" fine, bolted, 20.0 foot
1шт.
Includes 2 - 17
1шт.
1
230603A2
KNIFE ASSY
3" fine, bolted, 22.5 foot
1шт.
Includes 2 - 17
1шт.
1
230604A3
KNIFE ASSY
3" fine, bolted, 25.0 foot
1шт.
Includes 2 - 17
1шт.
1
226433A3
KNIFE ASSY
3" fine, bolted, 30.0 foot
1шт.
Includes 2 - 17
1шт.
2
NSS
NOT SOLD SEPARAT
Bar
1шт.
3
1316161C94
KNIFE HEAD
HEAD, KNIFE
1шт.
Includes 4
1шт.
3
1316161C95
KNIFE HEAD
HEAD, KNIFE
1шт.
Includes 4
1шт.
4
1345491C2
DUST CAP
cover
1шт.
5
86637930
SLOTTED NUT,5/8"-18, G5
1шт.
10
1313797C1
BLOCK
knife head
1шт.
12
826720C3
KNIFE SECTION
SECTION, KNIFE 3" fine overserrated
1шт.
12
596321R4
KNIFE SECTION
SECTION, KNIFE overserrated, Chrome, If Used
1шт.
13
324070A1
KNIFE SECTION
SECTION, KNIFE RH end
1шт.
14
1316030C2
KNIFE SECTION
SECTION, KNIFE 3", plain half
1шт.
15
1979166C1
BOLT
#12-24 x 1 1/8"
16шт.
16
700708646
BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"
#12-24 x 5/8" slot bt hd
1шт.
17
1954816C1
LOCK NUT
hex lock, No. 12-24
1шт.
18
227455A1
STRAP
knife back reinforcement, if used
1шт.
19
227456A1
SCREW,FLAT, #12 - 24 x 1-1/4", Gr 8
#12-24 x 1 1/4" CSK HSKT
3шт.
20
227457A1
SCREW,#12 - 24 x 13/16", Gr 8
#12-24 x .13/16" CSK HSKT
6шт.
21
227213A1
KIT
knife back reinforcement
1шт.
Includes 17 - 20
1шт.
22
280355
BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8
1шт.
