Запчасти Case IH 1010 (09B-05) - KNIFE ASSEMBLY 3 INCH BOLTED COARSE SERRATIONS ASN JJC0302300 (09) - CHASSIS/ATTACHMENTS

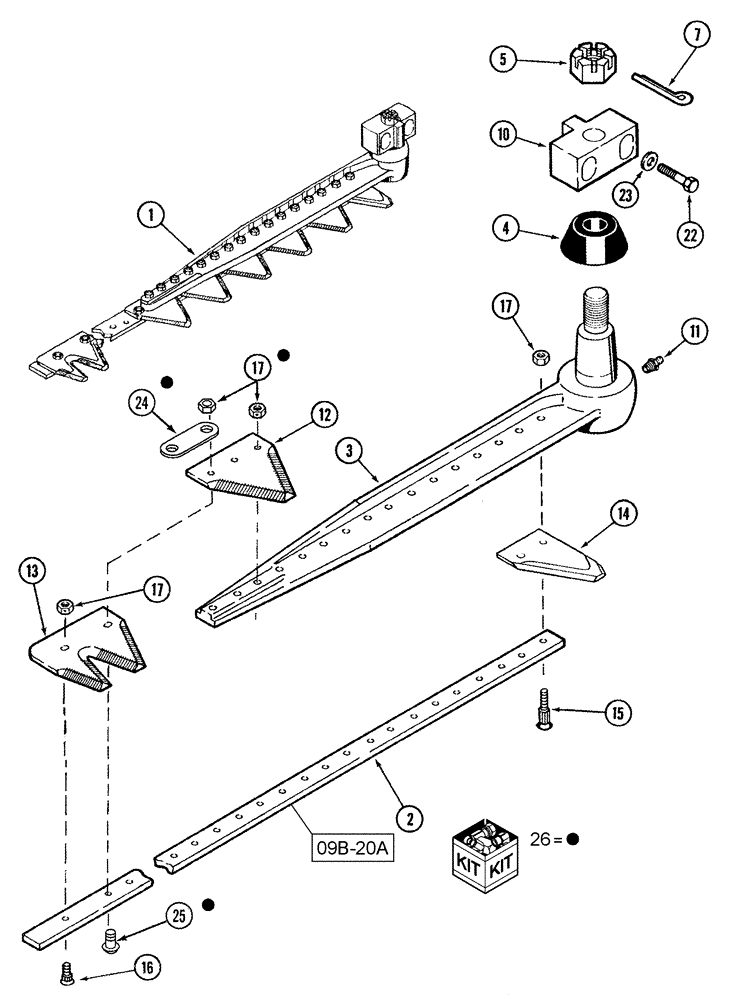

Схема запчастей Case IH 1010 - (09B-05) - KNIFE ASSEMBLY 3 INCH BOLTED COARSE SERRATIONS ASN JJC0302300 (09) - CHASSIS/ATTACHMENTS
25
12
17
11
26
26
09b-20a
7
17
10
17
4
15
3
5
2
14
26
24
23
26
16
13
1
22

Артикул

Название

Примечание

Количество

1

1307281C99

KNIFE ASSY

3", 15.0 foot

1шт.

Includes 2 - 17

1шт.

1

87439540

KNIFE ASSY

3" coarse, 15.0 foot

1шт.

Includes 2 - 17

1шт.

1

87439542

KNIFE ASSY

3" coarse, 17.5 foot

1шт.

Includes 2 - 17

1шт.

1

1307283C99

KNIFE ASSY

3", 20.0 foot

1шт.

Includes 2 - 17

1шт.

1

87439543

KNIFE ASSY

3" coarse, 20.0 foot

1шт.

Includes 2 - 17

1шт.

1

1307284C99

KNIFE ASSY

3", 22.5 foot

1шт.

Includes 2 - 17

1шт.

1

87439544

KNIFE ASSY

3" coarse, 22.5 foot

1шт.

Includes 2 - 17

1шт.

1

376534A1

KNIFE ASSY

3" bolted coarse 25'

1шт.

Includes 2 - 17

1шт.

See Figure 09B-20 For Modular Knives

1шт.

1

376534A2

KNIFE ASSY

3" bolted coarse 25'

1шт.

Includes 2 - 17

1шт.

See Figure 09B-20 For Modular Knives

1шт.

1

376534A3

KNIFE ASSY

3" coarse, 25.0 foot

1шт.

Includes 2 - 17

1шт.

See Figure 09B-20 For Modular Knives

1шт.

1

376535A1

KNIFE ASSY

3" bolted coarse 30'

1шт.

Includes 2 - 17

1шт.

See Figure 09B-20 For Modular Knives

1шт.

1

376535A2

KNIFE ASSY

3" bolted coarse 30'

1шт.

Includes 2 - 17

1шт.

See Figure 09B-20 For Modular Knives

1шт.

1

376535A3

KNIFE ASSY

3" coarse, 30.0 foot

1шт.

Includes 2 - 17

1шт.

See Figure 09B-20 For Modular Knives

1шт.

2

NSS

NOT SOLD SEPARAT

Bar

1шт.

3

1316161C94

KNIFE HEAD

HEAD, KNIFE

1шт.

Includes 4

1шт.

3

1316161C95

KNIFE HEAD

HEAD, KNIFE

1шт.

Includes 4

1шт.

4

1345491C2

DUST CAP

cover

1шт.

5

86637930

SLOTTED NUT,5/8"-18, G5

1шт.

7

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

10

1313797C1

BLOCK

knife head

1шт.

10

1313797C2

BLOCK

knife head

1шт.

11

87414

LUBE NIPPLE,1/4" - 28

1шт.

12

112074A1

KNIFE SECTION

SECTION, KNIFE overserrated, 3"

1шт.

12

191256A1

KNIFE SECTION

SECTION, KNIFE overserrated 3", chrome, if used

1шт.

13

148200C1

KNIFE SECTION

SECTION, KNIFE overserrated, double right-hand

1шт.

14

1316030C2

KNIFE SECTION

SECTION, KNIFE 3", plain half

1шт.

15

1979166C1

BOLT

#12-24 x 1 1/8"

16шт.

16

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

#12-24 x 5/8" slot bt hd

1шт.

17

1954816C1

LOCK NUT

hex lock, No. 12-24

1шт.

22

280355

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

1шт.

23

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

24

321848A1

KNIFE CLIP

knife reinforcing, 3" knives

1шт.

25

87423458

BOLT,Truss HD, #12 - 24 x 0.7", Gr 8

#12-24 NC x .70" knurled neck

1шт.

26

321849A1

KIT

reinforcing strap for 3" knives

1шт.

Includes 17, 24, 25

1шт.

26

321849A2

KIT

reinforcing strap for 3" knives

1шт.

Includes 17, 24, 25

1шт.

Выбрано товаров: 58
