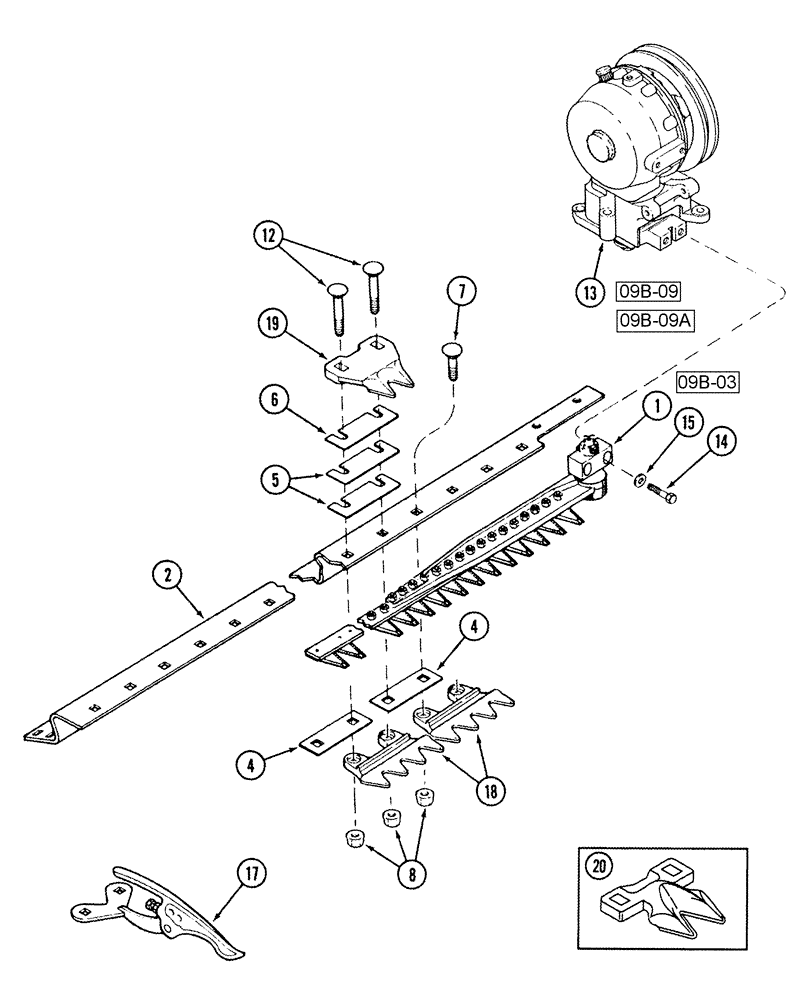

Запчасти Case IH 1010 (09B-01) - KNIFE GUARDS AND CUTTER BAR 1.5 INCH KNIFE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Knife Assy

1шт.

See Figure 09B-03

1шт.

2

129305A1

CUTTER BAR

15.0 foot

1шт.

2

129306A1

CUTTER BAR

17.5 foot, Serial Range: -JJC0308544

1шт.

2

129307A1

CUTTER BAR

20.0 foot, Serial Range: -JJC0308544

1шт.

2

129308A1

CUTTER BAR

22.5 foot

1шт.

2

87450131

CUTTERBAR

25.0 foot

1шт.

2

129310A1

CUTTER BAR

30.0 foot, Serial Range: -JJC0308544

1шт.

4

126628C1

SHIM

knife

1шт.

5

1316040C1

SHIM,38.1mm OD x 2.1mm Thk

4 1/2" x 1 1/2" x .067

1шт.

6

1316039C1

SHIM

4 1/2' x 1 1/2" x .016"

1шт.

7

434-724

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

6шт.

8

1313463C1

FLANGE NUT

hex small flange, 7/16" NC

1шт.

12

434-736

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

1шт.

13

REF

INSTRUCTION

Box Assy

1шт.

See Figure(s) 09B-09, 09B-09A

1шт.

14

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

2шт.

15

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

2шт.

17

1326538C91

GRAIN LIFTER

1шт.

18

1989552C1

GUARD

knife, 4 point

1шт.

19

101001A2

KNIFE CLIP

hold down

1шт.

20

112428A1

KNIFE CLIP

hold down LH 1 1/2"

2шт.
