Запчасти Case IH 1010 (09A-21) - REEL SUPPORT ARMS AND LIFT CYLINDERS (09) - CHASSIS/ATTACHMENTS

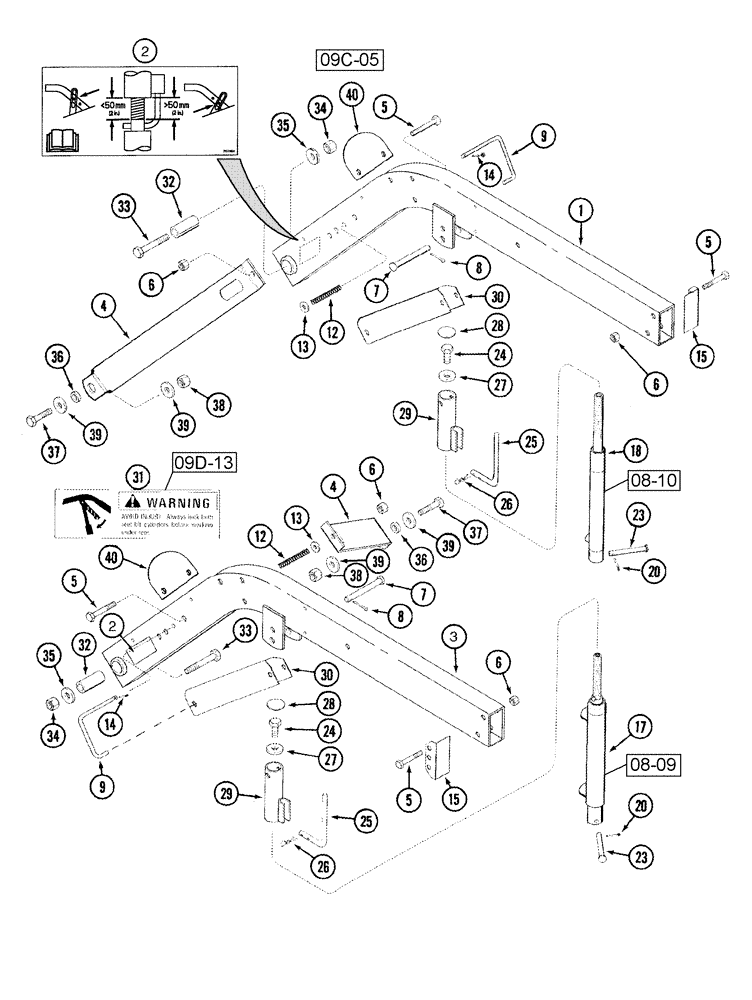

Схема запчастей Case IH 1010 - (09A-21) - REEL SUPPORT ARMS AND LIFT CYLINDERS (09) - CHASSIS/ATTACHMENTS
7
15
2
24
5
4
8
8
20
9
14
31
38
36
9
34
32
40
33
37
29
13
7
14
5
35
26
35
12
12
25
4
39
1
6
5
36
34
29
38
13
40
39
33
39
25
3
2
6
23
32
26
30
5
28
23
27
6
6
37
17
39
30
09c-05
27
09d-13
08-09
08-10
28
24
20
18
15

Артикул

Название

Примечание

Количество

1

304197A1

ARM

reel support LH

1шт.

Includes 2

1шт.

2

296796A1

DECAL

auger lift bracket

2шт.

3

304198A1

ARM

reel support RH

1шт.

Includes 2

1шт.

4

128428A3

SUPPORT

brace, reel arm, Serial Range: -JJC0308544

2шт.

5

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

7

86979987

HEADED PIN,1/2" x 3", G5

2шт.

8

394818

COTTER PIN,M5 x 25

2шт.

9

1320928C1

ROD

stand support

2шт.

12

M296

SPRING

2шт.

13

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

2шт.

14

80756

COTTER PIN,1/8" x 3/4"

2шт.

15

1305175C4

BRACKET

reflector

2шт.

17

128723A2

HYDRAULIC CYLINDER

1 1/2" x 9 3/8", Reel Lift Master, Serial Range: -JJC0308544

1шт.

See Figure 08-09

1шт.

128723A3R

REMAN-HYD CYLINDER

1010 (P.I.N. JJC0300001 TO JJC0308544), Serial Range: -JJC0308544 (1/04-10/04), Reman for New PN 128723A2

1шт.

128723A3C

CORE-HYD CYLINDER

Return Number

1шт.

18

128726A1

HYDRAULIC CYLINDER

1 x 9 3/8", Reel Lift Slave, Serial Range: -JJC0308544

1шт.

See Figure 08-10

1шт.

128726A2R

REMAN-HYD CYLINDER

1010 P.I.N. JJC0300001 TO JJC0308544, Serial Range: -JJC0308544 (1/04-10/04), Reman for New PN 128726A1

1шт.

128726A2C

CORE-HYD CYLINDER

Return Number

1шт.

20

394818

COTTER PIN,M5 x 25

2шт.

23

86979987

HEADED PIN,1/2" x 3", G5

2шт.

24

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

25

1320927C2

ROD

cylinder adjusting, Serial Range: -JJC0308544

2шт.

26

87045537

HAIR PIN COTTER

.148 x 3 5/16"

2шт.

27

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

2шт.

28

1316193C1

PLUG

button, Serial Range: -JJC0308544

2шт.

29

128729A1

TUBE

reel arm adjusting, Serial Range: -JJC0308544

2шт.

30

144672A2

SUPPORT

lift cylinder, LH, with decal, Serial Range: -JJC0308544

1шт.

Includes 31

1шт.

30

144673A2

SUPPORT

lift cylinder, RH, with decal, Serial Range: -JJC0308544

1шт.

Includes 31

1шт.

31

185067A1

DECAL

warning, avoid injury, always lock both reel lift cylinders

1шт.

See Figure 09D-13

1шт.

32

128427A1

SPACER

reel arm

2шт.

33

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

2шт.

34

231-41112

LOCK NUT,3/4"-10, GB

2шт.

35

86624162

WASHER,0.81" ID x 1.5" OD x 0.18" Thk

2шт.

36

128426A1

SPACER

reel arm strap

2шт.

37

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

38

85700693

NUT,5/8" - 11, Gr C

2шт.

39

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

, Serial Range: -JJC0308544

4шт.

40

183064A1

SHIELD

auger lift bracket, Serial Range: -JJC0308544

2шт.

See Figure 09C-05

1шт.

Выбрано товаров: 47
